Vinyl window latch

Home Owner from Oklahoma
Looking for vinyl window tilt in latches. 2 3/8 long x inch 11/16 wide x 3/8 deep. gtshoe@att.net
4 user uploaded images
5 Replies
Home Owner from Oklahoma
Maybe latch 26-393? I saw a pic on your site of someone else's pics that look just like mine.
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. Yes, based on dimensions and appearance, I think the 26-393A Tilt Latch pair is our best bet. Just double-check the dimensions to confirm they match what is listed below.

Dimensions for 26-393A
Dimensions for 26-393A

Home Owner from Oklahoma

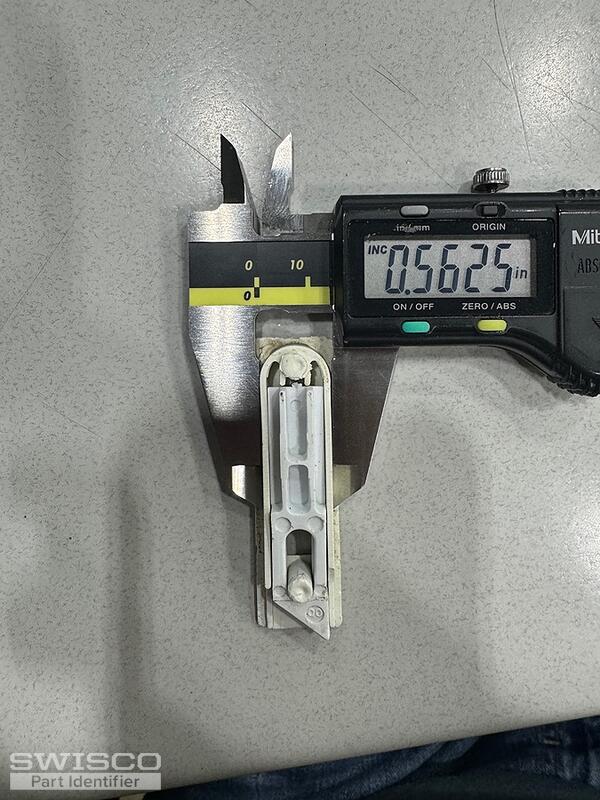

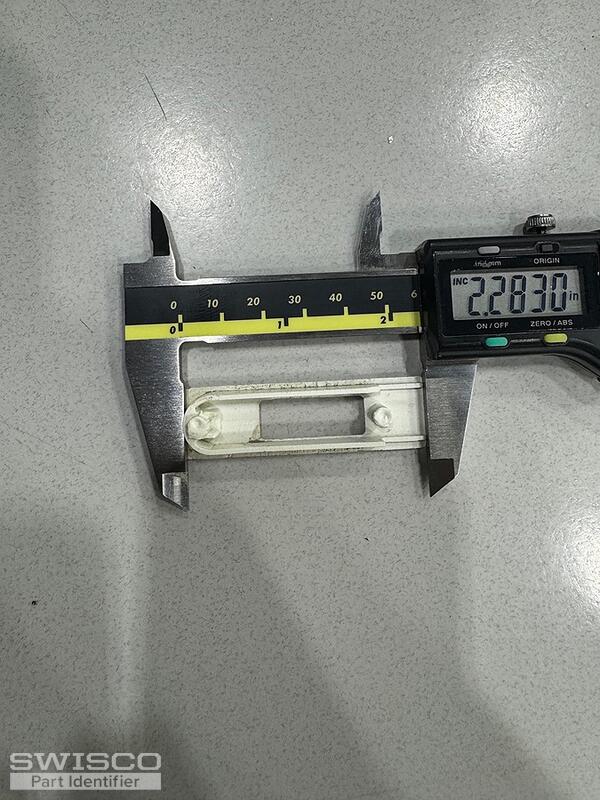

Hi, I purchased the 26-393A latches hoping they would fit. The 11/16" width shown in the diagram is the same all the way down the side of the 393 latches. The width of my old ones are 11/16 at the top but then they then recess to 9/16" which then fits into the window frame with the 11/16 lip sitting on top of the frame. The 393 latches need 11/16 to sit down in the frame. What I need for length that would sit in the frame is a touch over 2 1/4" and depth is about 3/8". Any ideas on what latch would meet these dimensions relatively close?
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

I'm sorry to hear that our 26-393A didn't work for you. Might our 26-393B be a better option? The top is 11/16" wide while the main body is 9/16". The length is 2-3/8".

Dimensions for 26-393A
Dimensions for 26-393A

Alternate view of 26-393B
Alternate view of 26-393B
