Vinyl window replacement parts

Home Owner from Lakewood, CA

Oct 19, 2020 1:36 pm

I have CertainTeed Vinyl Windows. I understand that the company is no longer in business. I have windows that open outward with a crank mechanism.
1) The lock mechanism of one window is broken.
2) The crank mechanism of another window is broken.

2 user uploaded images

4 Replies

Bob from SWISCO

Oct 21, 2020 2:52 pm

The casement lock might be our 38-091 or 38-092, but I can't be certain without seeing the inner components of it. Compare both with your old hardware and see what you think. For the window operator, I need to see the entire assembly including the link arm(s) to help narrow it down. Thanks.

Home Owner from Lakewood, CA

Oct 21, 2020 5:44 pm

The casement lock looks most similar to 38-092 in that if I'm facing the window and looking at the lock, the lock lever is on the right side. Also, I would need the beige color.

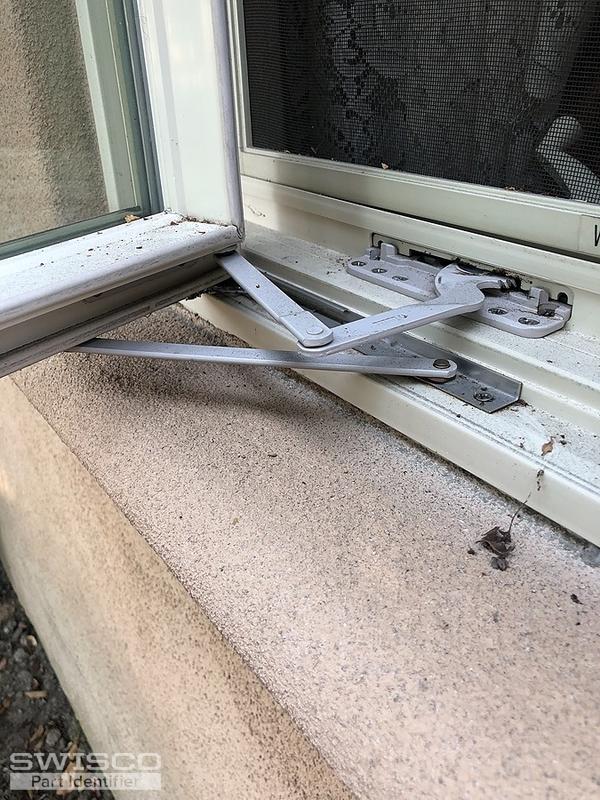

As for the window operator, I'm not exactly sure what the link arms are, but I'm attaching photos of what you might be asking about. However, since I can't even open the window, I've taken pictures of the metal arms for the other window that is still working. That window is in the same overall window space, but just the opposite one.

Please note the casement lock is from a different window.

3 user uploaded images

Bob from SWISCO

Oct 22, 2020 8:16 am

How does our 39-220B match up? Compare the dimensions and see what you think. This operator uses cover and handle kits like the 39-376 or 39-452.
