Vinyl window sash lock

A home owner from Virginia Beach VA says:

Hi,

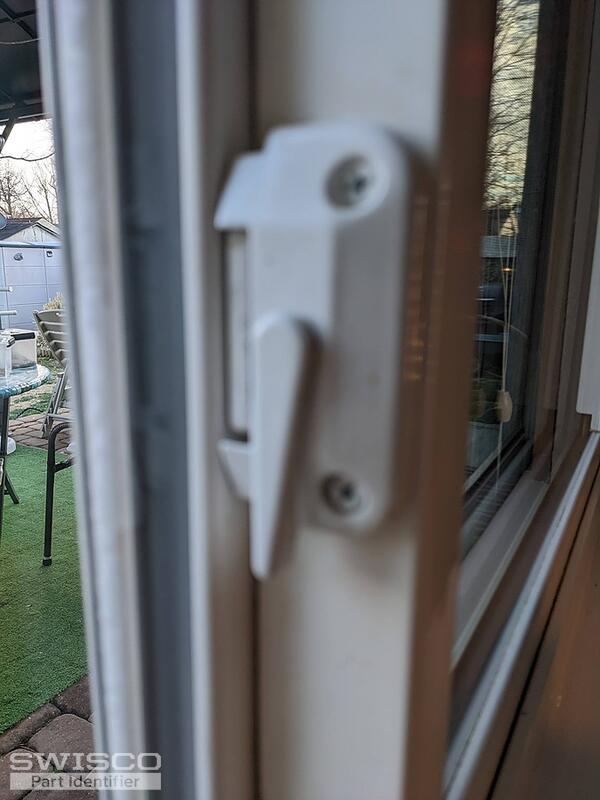

I have vinyl windows that are approximately 10 years old. Unfortunately, the company that installed them went out of business. I am unable to locate any manufacturer info on the windows themselves. The sash lock I need has the mounting screws set back further from the glass as to not interfere with the glass inserts, than the ones that I have seen. I have not been able to locate a sash lock that will fit. The keeper is a side mount. Thank you.

Scott

Thumbnail of the uploaded file named PXL_20220225_221515122.jpg
Thumbnail of the uploaded file named PXL_20220225_221524281.jpg
Thumbnail of the uploaded file named PXL_20220225_221456562.jpg
Thumbnail of the uploaded file named PXL_20220225_221442875.jpg
Thumbnail of the uploaded file named PXL_20220225_221620745.MP.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Scott. We may have a substitute that can work for this, but I will need detailed dimensions before I recommend anything. To start, can you tell me the distance between the two screw holes, center-to-center? Can you also tell me the distance from the window edge to the screw hole centers?

A home owner from Virginia Beach VA says:
Hello Tom,

Thank you for your fast reply.

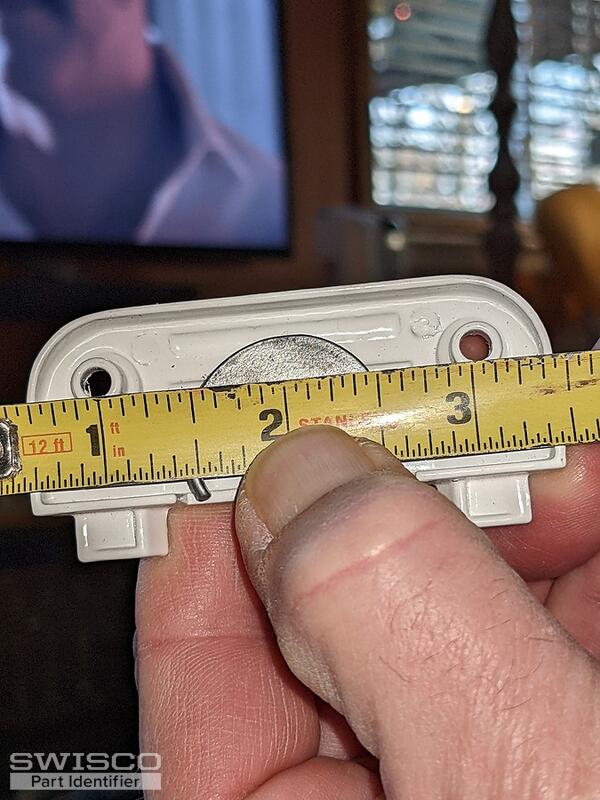

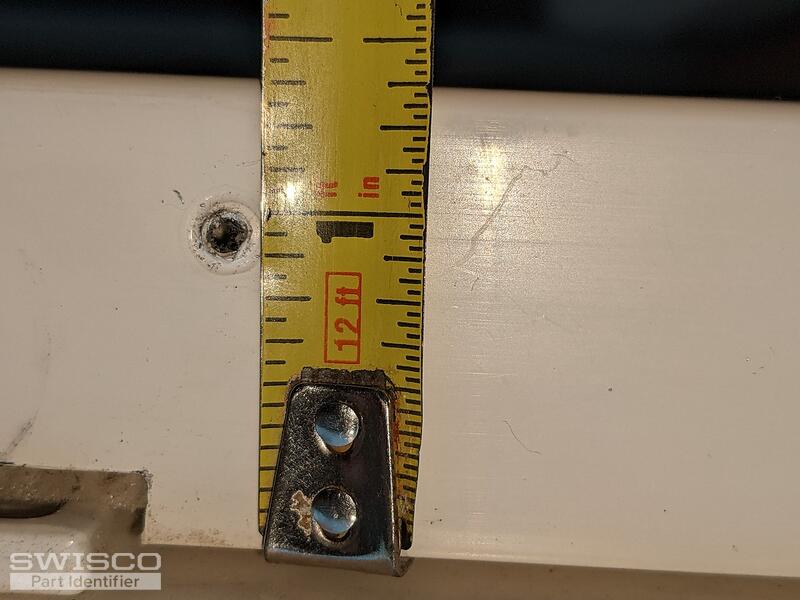

The distance between the two screw holes, center to center is 2-1/16. The distance from the window edge to the screw hole Centsr is 15/16".

Thanks, Scott
Thumbnail of the uploaded file named PXL_20220228_222901259.jpg
Thumbnail of the uploaded file named PXL_20220228_223329171.jpg
Profile picture of Paul
Paul from SWISCO responded:

Thanks for this additional information, and sorry for the delayed response; Tom is out sick. Based on the data given here I believe that the 90-278 lock with a 2-1/16" hole spacing and an 11/16" backset should fit and engage your window keeper. It won't have the overlap flaps but that's ultimately not essential for it to function.

A home owner from Virginia Beach VA says:

Paul,

Thank you for your response. I believe you are correct I have ordered one lock to test, The inline keeper is on backorder but my original one may work.

Thanks again, Scott

A home owner from Virginia Beach VA says:

Paul, Tom,

Thanks for your help, you guys really are experts and are exactly correct, I ordered one and it fits perfectly in the original screws holes.

Just ordered enough to do all my windows!

Thanks again,

Scott

Profile picture of Tom
Tom from SWISCO responded:

That's awesome! Thanks so much for the confirmation. If you ever needed something in the future, you know where to find us.
