Vinyl window seal

Professional from Cincinnati

Aug 12, 2015 2:57 pm

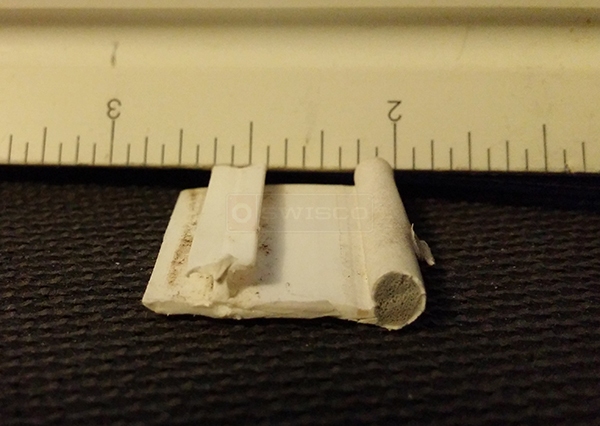

I am looking to replace the window seal indicated in the photo submitted. The measurements are shown in the background measure. Please advise.

Thanks,

David

5 Replies

Professional from Cincinnati

Aug 12, 2015 3:10 pm

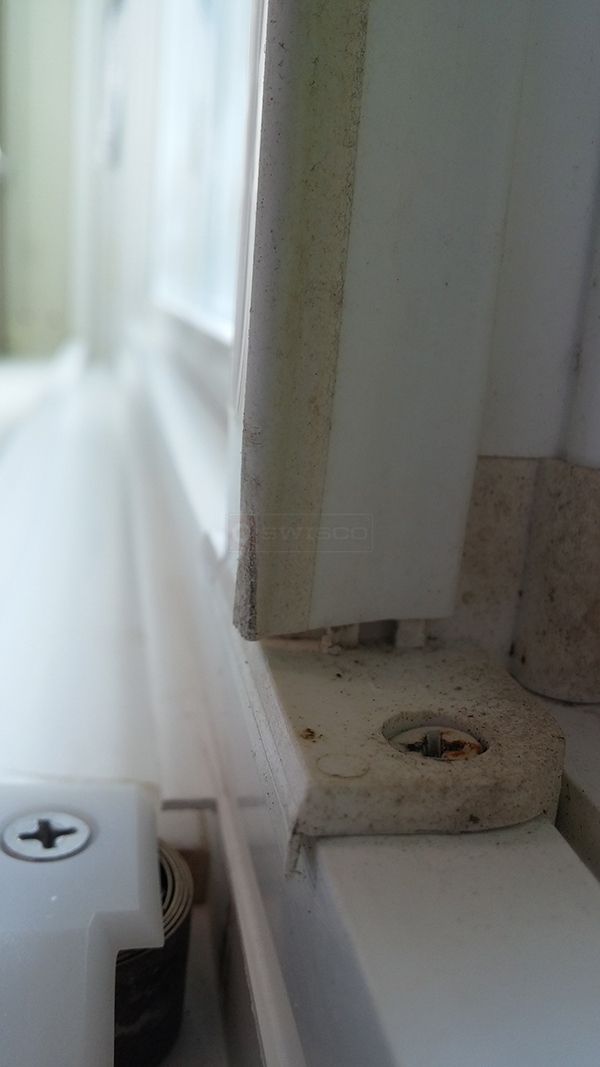

Added a photo of the location of the seal. Located under the fixed upper window bottom support to seal the top of the bottom window when in the locked position.

Dave

User submitted a photo of window hardware.

Paul from SWISCO

Aug 13, 2015 11:47 am

Hello! please see our 58-182 foam seal. I think this could work in your Metal industries window. Let me know if you agree.

Quick Learner from cincinnati

Aug 14, 2015 7:46 am

I have 2-seals. Both measure 3/4" 0.75 width.

One with a bulb of 1/8" and one with a bulb of 1/4"

I believe the total width will work but the width on your site is not noted.

Both of your bulb measurements are .330, will the larger bulb flex enough to replace the 1/8" bulb?

Thank you,

Dave

Paul from SWISCO

Aug 14, 2015 11:44 am

The total width of the 58-182 is 3/4", so I think you should be okay with that. I'm not sure about the smaller bulb, though. I haven't been able to find anything in that size. The 58-182 remains the best match we have, though I cannot guarantee it will act as a replacement.
