Vistarama Crank handle

A quick learner from Tennessee says:
Looking for these window cranks as 3 have gone missing. Can you advise which part number we need? Thanks
Thumbnail of the uploaded file named 277B701F-4E8B-41EE-96F7-66AB64BA6D2F.jpeg
Thumbnail of the uploaded file named 7A605114-4CD9-4B7D-BD06-864D5E253887.jpeg
Thumbnail of the uploaded file named CAD2A45D-DF5C-4DB0-B4C0-459FE3CF8BFE.jpeg

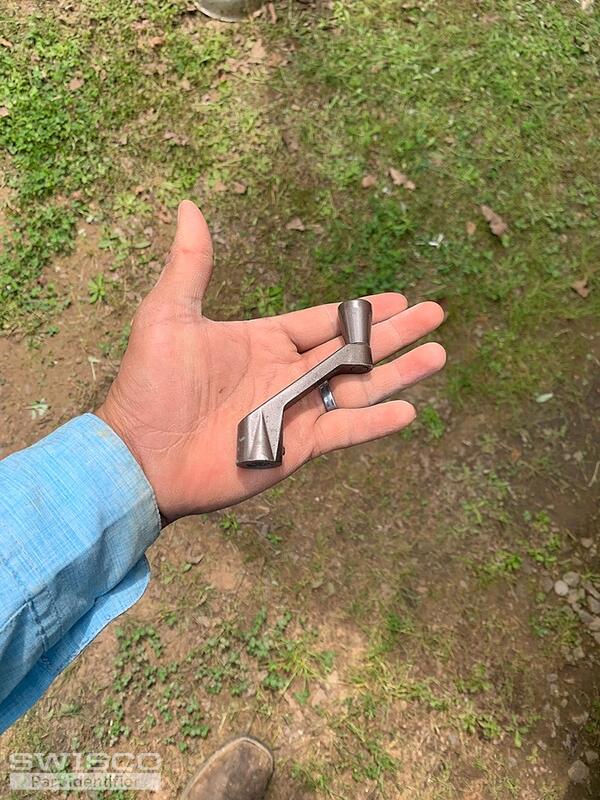

Thumbnail of the uploaded file named 1A784F8C-11F4-45EA-92F0-15291DF886A4.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and see if the 11/32" diameter opening of the 39-114L matches an undamaged handle from one of your windows. Thanks for posting!


Alternate view of the gear hole
Alternate view of the gear hole

A quick learner from Tennessee says:
Ordered that and it was too small. We also tried 3/8 and it was too small. 7/16 is what the hole measures via tape measure. Anything 7/16 in that style or recommendations on another size to try?
Profile picture of Tom
Tom from SWISCO responded:

That is a very, very uncommon size. The only handle we sell with a 7/16" spline is our 39-195, but to be perfectly honest I've never personally used this. I cannot be sure how well it will work in your application.
