WHAT SIZE PIVIOT SHOES, NEED PART NUMBERS

A handy person from Naples, FL says:
December 16, 2020
Hi Swissco Customer Service,

I have a couple of aluminum windows that do not function well due to the spiral balancer & pivot bars, need your help please identify the part number for the pivot shoes. Also, if you have any advice best way to remove the shoes from aluminum frames would be very helpful.

Thanks in Advance!

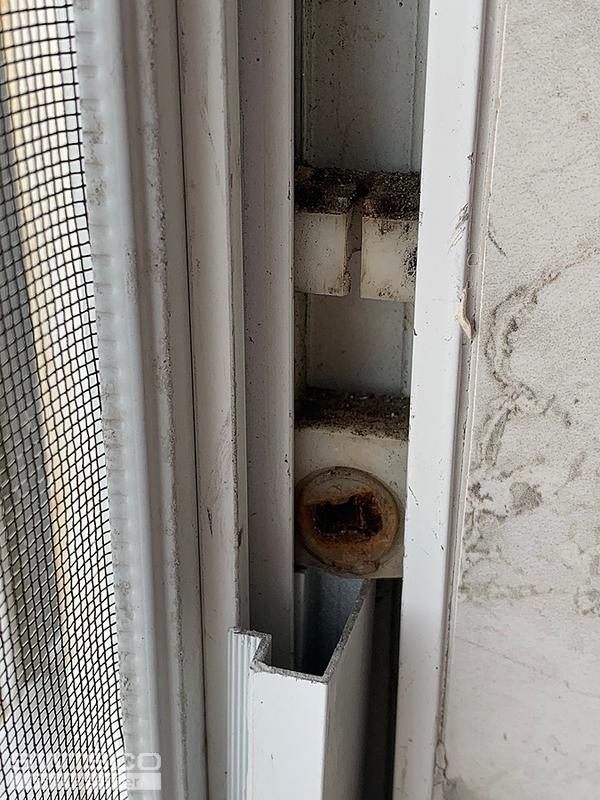

Thumbnail of the uploaded file named IMG_0475.jpg

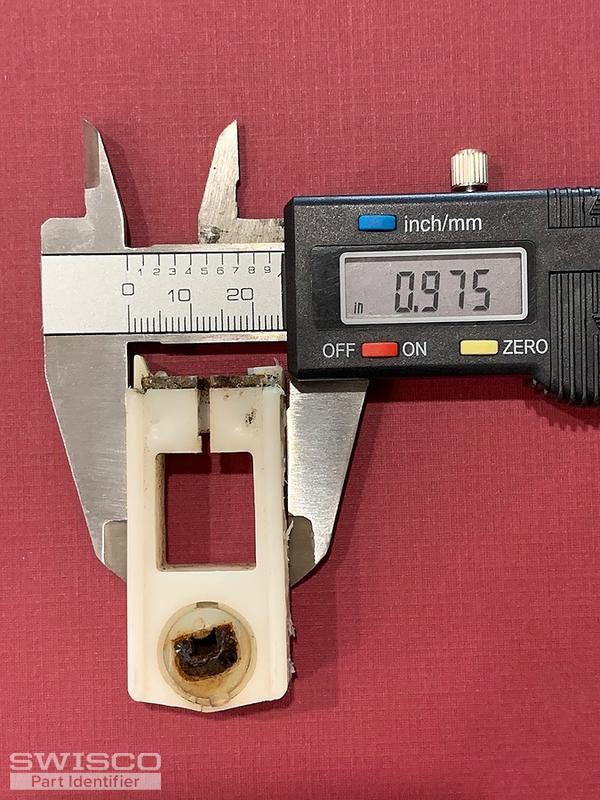

Thumbnail of the uploaded file named IMG_0476.jpg

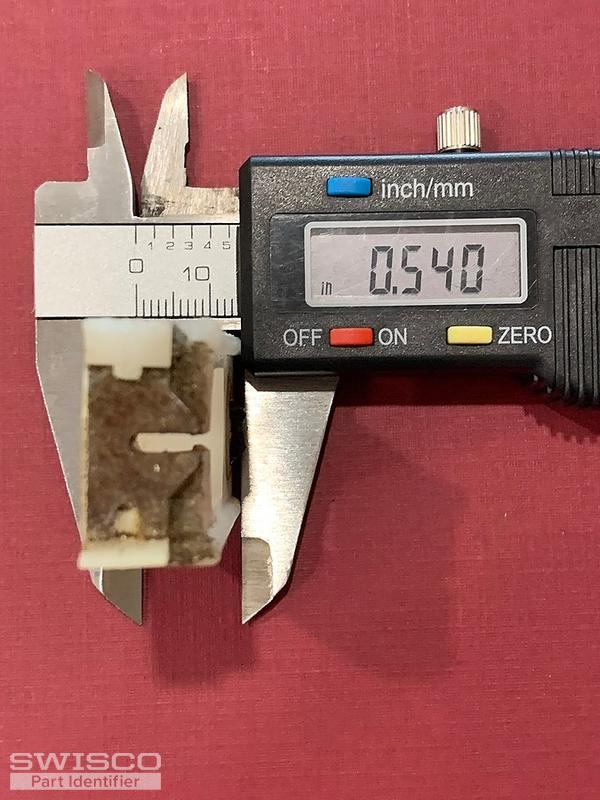

Thumbnail of the uploaded file named IMG_0477.jpg

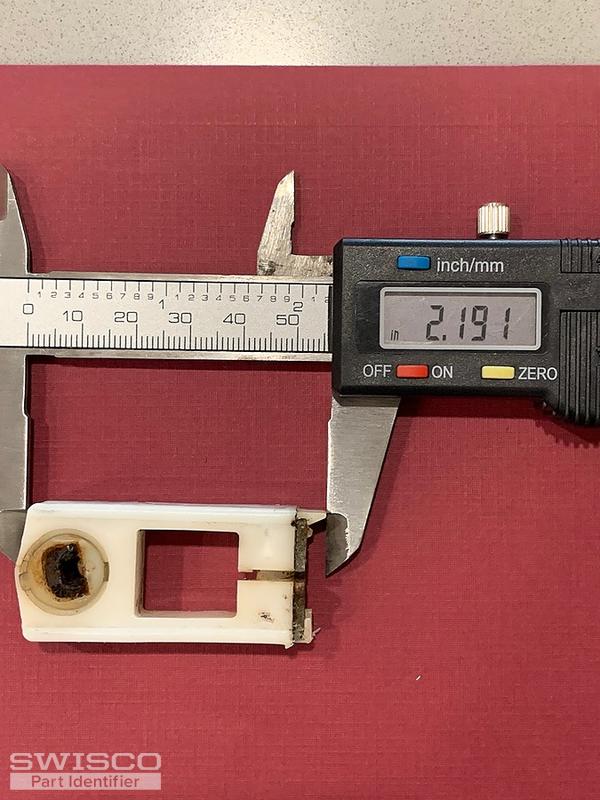

Thumbnail of the uploaded file named IMG_0479.jpg

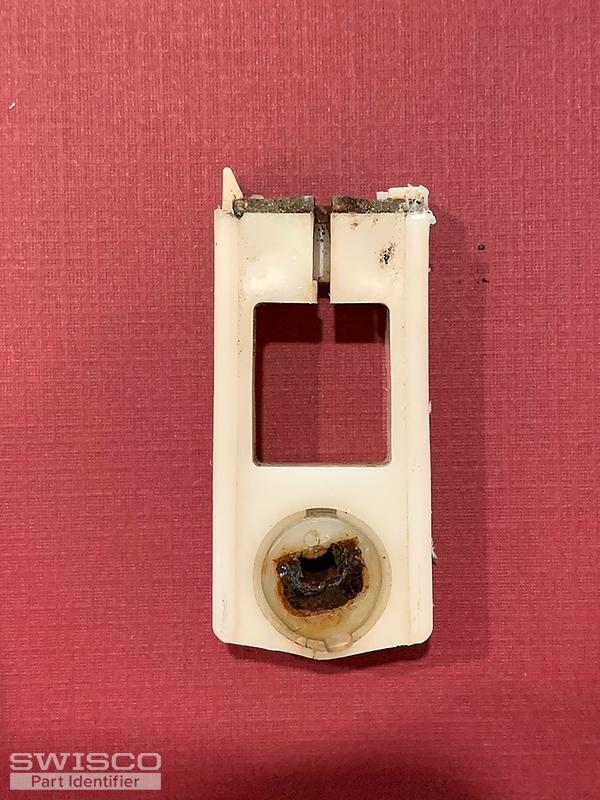

Thumbnail of the uploaded file named IMG_0480.jpg
Profile picture of Casey
Casey from SWISCO responded:
December 17, 2020

Hello,

Take a look and compare our 15-173 pivot shoe to yours, which is commonly used with the S600 spiral balance. If you need new pivot bars, we would need to see an undamaged one removed from the sash, along with dimensions. Thank you!
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-173
$2.72
How to replace a tilt window spiral balance.
How to replace a tilt window spiral balance.
VIDEO
WATCH >
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
