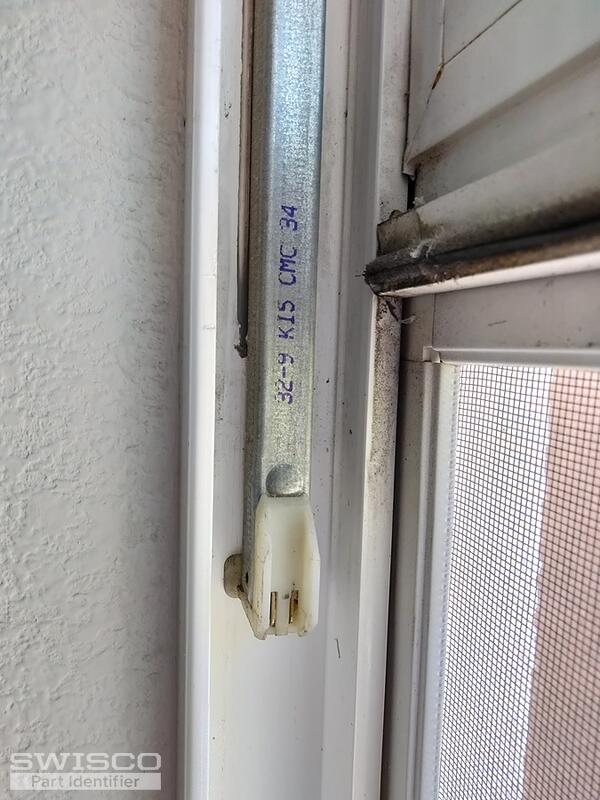

(A) NEED 4 EACH OF WINDOW CHANNEL BALANCE "32-9 K15 CMC 34"
WINDOW L=34.75 INCH
CHANNEL BALANCE L=33 INCH; 1/2" X 5/8"
WINDOW WEIGHT APPROX 32-34 LBS
ATTACHED JPEG FILENAMES ENDING IN "XXX" AS FOLLOWS; BETWEEN 200 & 636
(I.E. 200, 636)

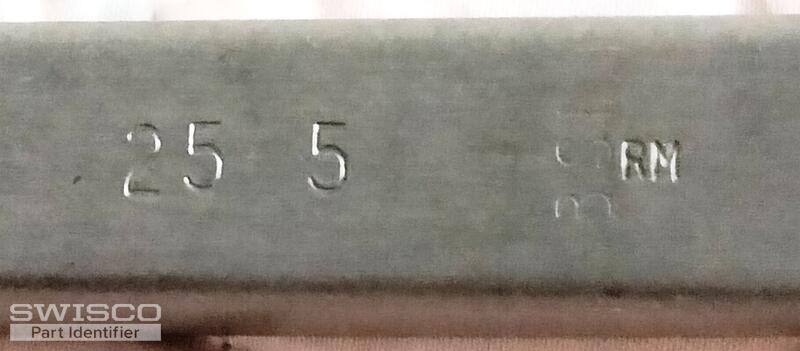

(B) NEED 8 EACH OF WINDOW CHANNEL BALANCE "25 5 3S? RM"
WINDOW L=28.75 INCH
CHANNEL BALANCE L=25.5 INCH; 1/2" X 5/8"
WINDOW WEIGHT APPROX 30-32 LBS
ATTACHED JPEG FILENAMES ENDING IN "XXX" AS FOLLOWS; BETWEEN 705 & 818)
(I.E. 705, 718, 808)
WINDOW CHANNEL BALANCE: (A) 32-9 K15 CMC 34; (B) 25 5 3S? RM
Quick Learner from SANTA CLARA, CALIFORNIA
Jul 20, 2022 7:19 pm
5 user uploaded images
4 Replies
Tom from SWISCO
Jul 26, 2022 12:34 pm
We can supply each balance you show here, but only as custom orders. They're both a very different configuration and both follow slightly different rules. Thankfully your information is very thorough and we should be able to get the ball rolling soon.
Please give me a little time to check on the availability of these sizes and I'll get back to you ASAP with two price quotes.
Quick Learner from SANTA CLARA, CALIFORNIA
Jul 26, 2022 1:43 pm

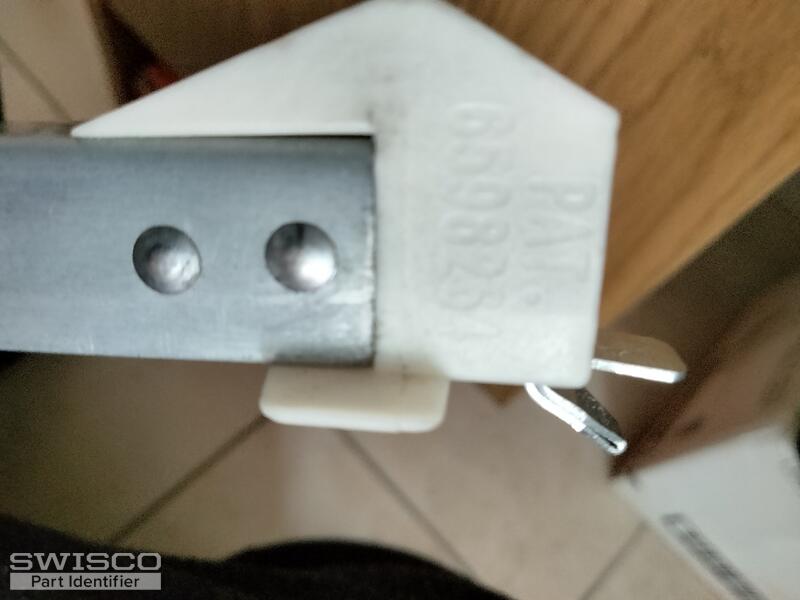

Thanks for reply. I am not sure as the length I measured is only the metal channel portion, and not the plastic end pieces. Did I measure the channel length correctly? I could only send 5 pictures when submitting my original description, but I took a lot of pictures if that helps. All the channel balances we have are on Milgard windows
Tom from SWISCO
Jul 26, 2022 1:54 pm
Okay, we're good to go on our end. What I'll do now is email you two purchase links: one for each configuration. You can use those to add the balances in question to your cart.
Regarding length, you do only want to measure the metal channel, yes. You never want to include the nylon fittings.
