WINDOW PARTS

A quick learner from ILLINOIS says:

WE ARE NEEDING TO ORDER THESE PARTS FOR A FEW WINDOWS.

THANKS, EMILEE

Thumbnail of the uploaded file named PARTS.jpg
Thumbnail of the uploaded file named PARTS1.jpg
Thumbnail of the uploaded file named PARTS2.jpg
Thumbnail of the uploaded file named PARTS3.jpg
Thumbnail of the uploaded file named PARTS4.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I don't recognize this pivot shoe at first glance but I'm going to have one of our senior experts take a look and see if they could confirm a replacement for you. We'll reach out as soon as more information is available. Thank you!


Profile picture of Paul
Paul from SWISCO responded:

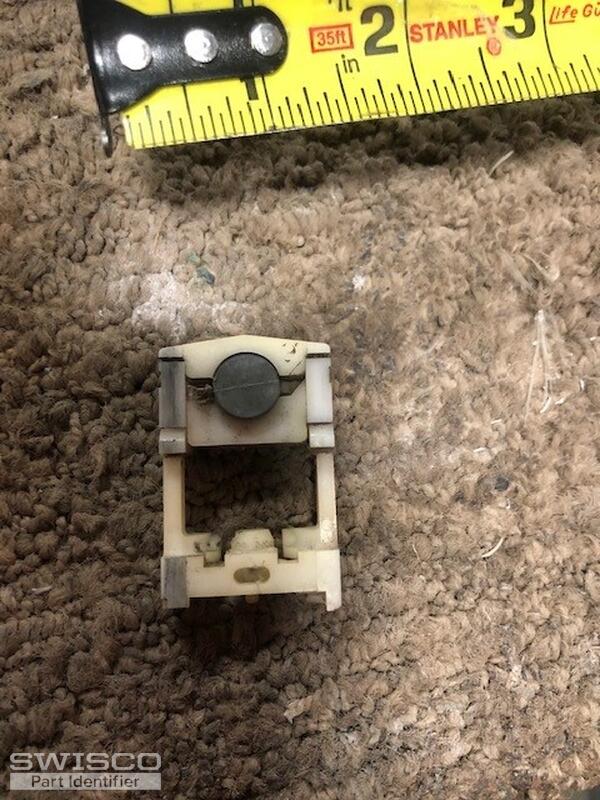

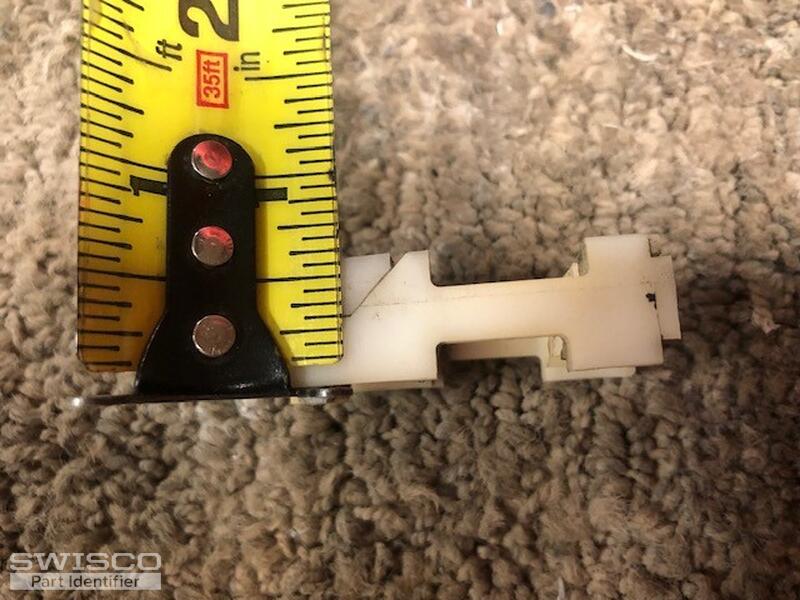

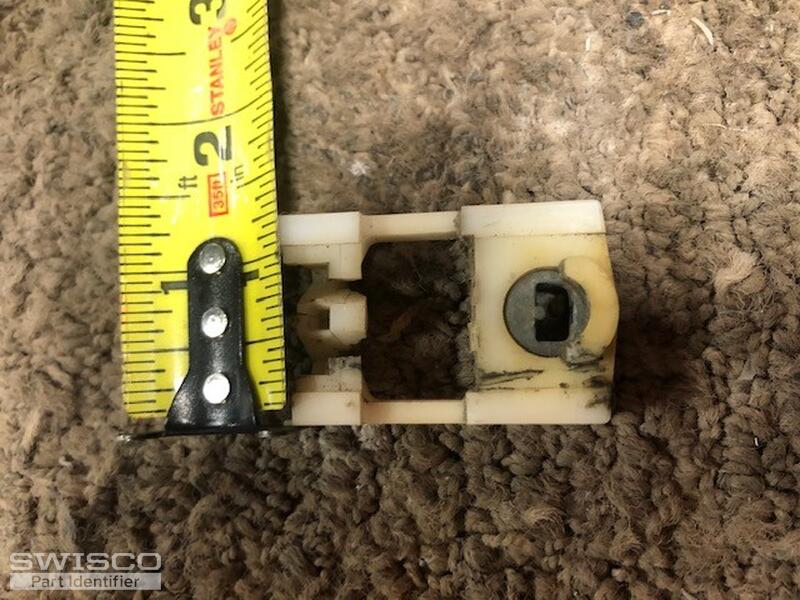

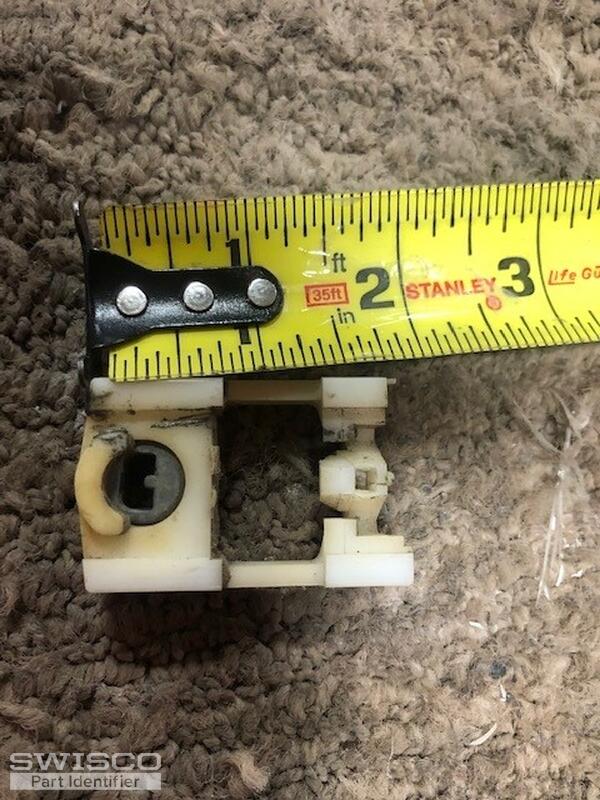

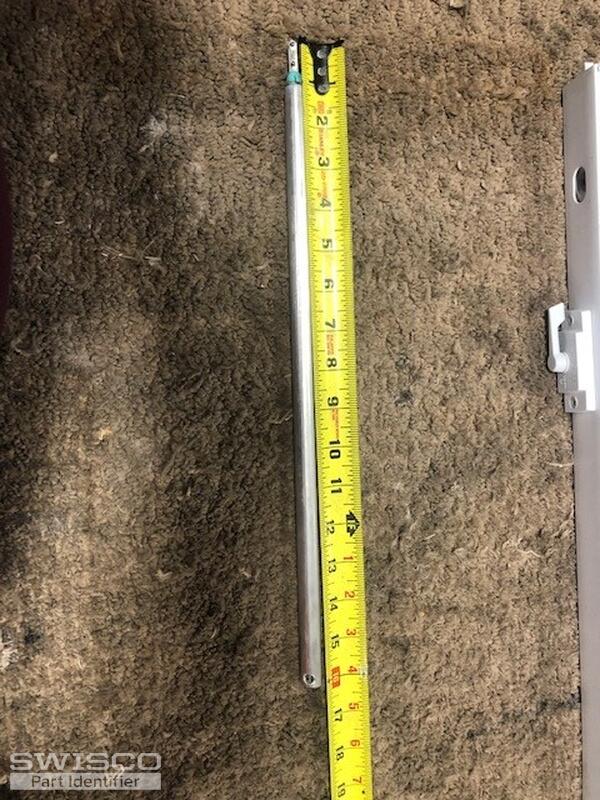

It looks like you have a 9/16" thick pivot shoe based on your photos, so we suggest the 15-121 as a replacement. Your tilt balance tube measures 15", so you'll need the S600-15 with a blue tip. You may also want a charging tool, our 75-006 , to help with attaching the spiral to the pivot shoe. Thanks for posting.
