WIndow Channel Balancer

Home Owner from Deland Florida

Jul 17, 2017 12:20 pm

These came out of windows in a 12 year old home in Florida
Here are some other Specs.

Stamp on Metal : 28 D
Length of METAL ONLY : 29"
Overall Length with ends installed : 30"
Width of Channel : Approx 5/8"
Depth of Channel: Approx 5/8"

I will need to order 10 of these. Please let me know the part number

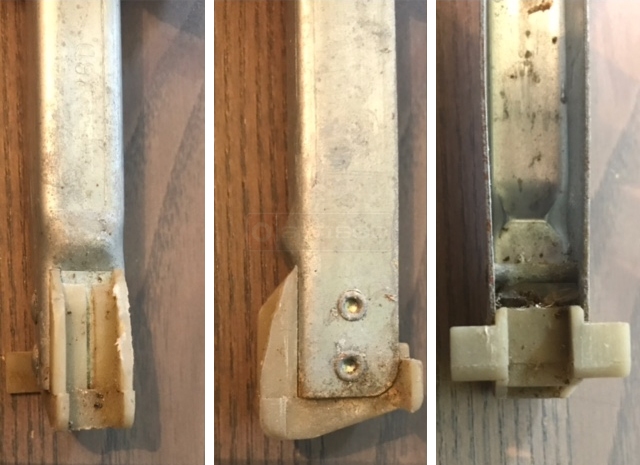

User submitted photos of a window balance.

4 Replies

Tom from SWISCO

Jul 20, 2017 12:33 pm

We may be able to help. Before we recommend anything, can you show me a picture of the top attachment?

Quick Learner from Deland FL

Jul 20, 2017 6:05 pm

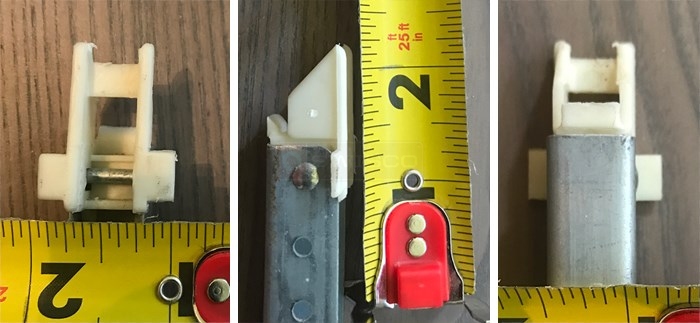

Tom Sorry I sent pictures of Top and Bottom. Something must have happened to the other file. I'll include as many different angles as I can. Thanks for your help

Tom from SWISCO

Jul 25, 2017 10:27 am

Thanks! I think this could be a match for our Series 380 channel balance. This comes with the 19-005 top and 15-005 bottom. The style of these pieces are a little different from yours, so don't worry about that; I would instead focus on their size. If the dimensions match up, then I think you're good to go.
