WIndow Channel balance
Handy Person from Chula Vista CA
Aug 24, 2021 8:48 pm

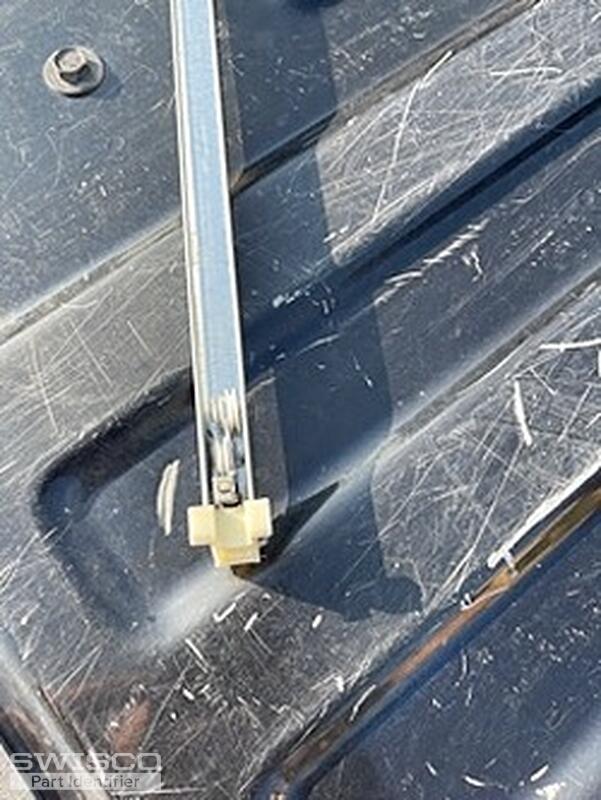

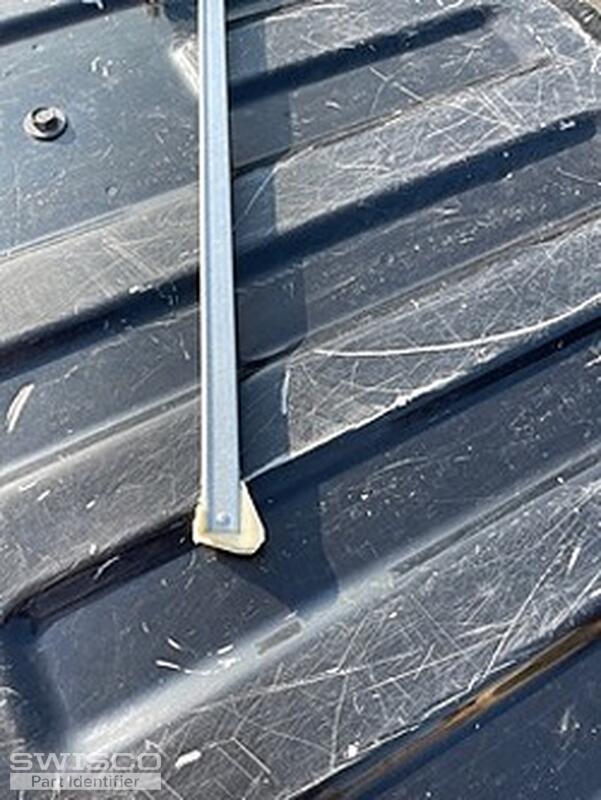

I'm looking for this specific window channel balance the window is non-tilt and is for my downstairs window i think i would need at least 4 of these id rather replace them all at the same time so i have no further issues.
5 user uploaded images
2 Replies
Emily from SWISCO
Aug 30, 2021 11:14 am
Hello there!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. I'm having trouble reading the stamp on your metal channel, it looks like it says "26 4", is that right? If so, you'll need a stamp option of 2640.
Comparison of the S378, S380 and S385 balance shoes.
