Want replacement part

Contractor from Colorado

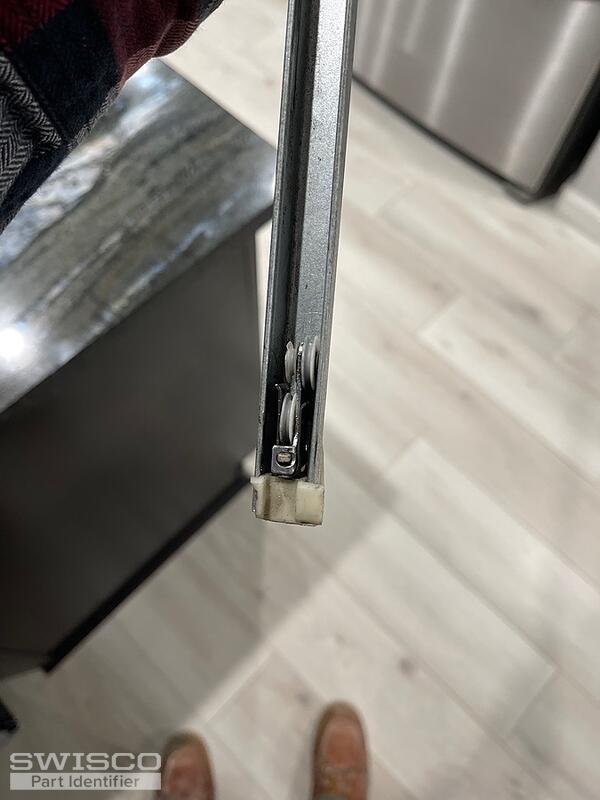

Channel length is 33"
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

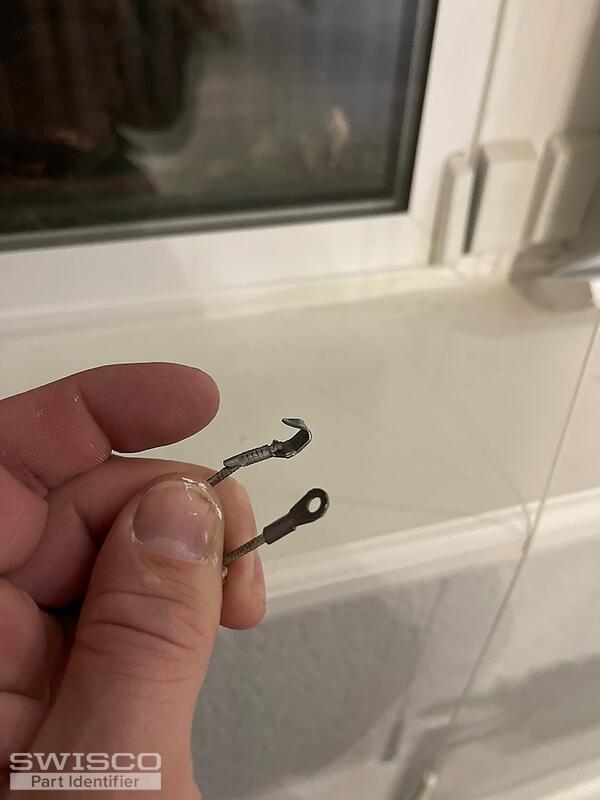

With this combination of attachments, you could have either the S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. Make sure to confirm that your balance uses the hook end of the pulley cord for installation as shown in the product image.

You'll also need 3250 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns. Thank you!

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
