Want to replace all my channel balances, need help to identify
Quick Learner from 95377
Dec 28, 2020 11:27 pm

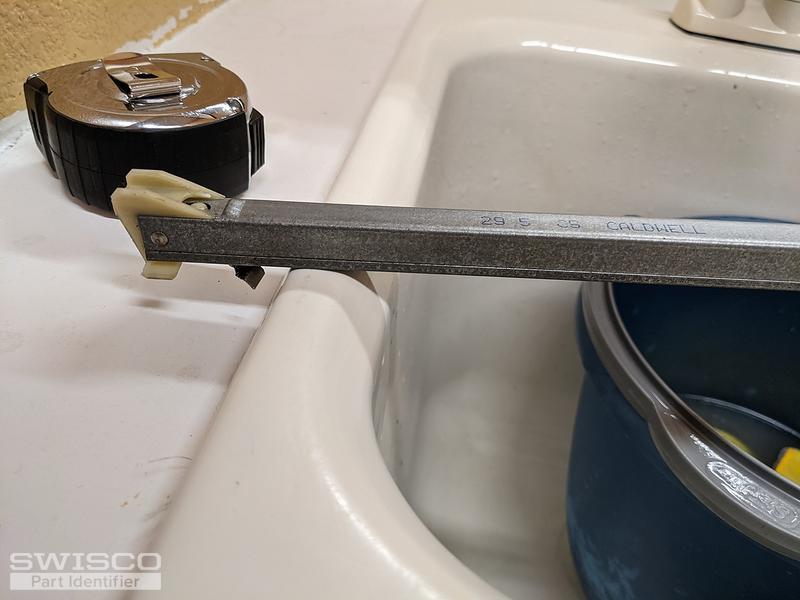

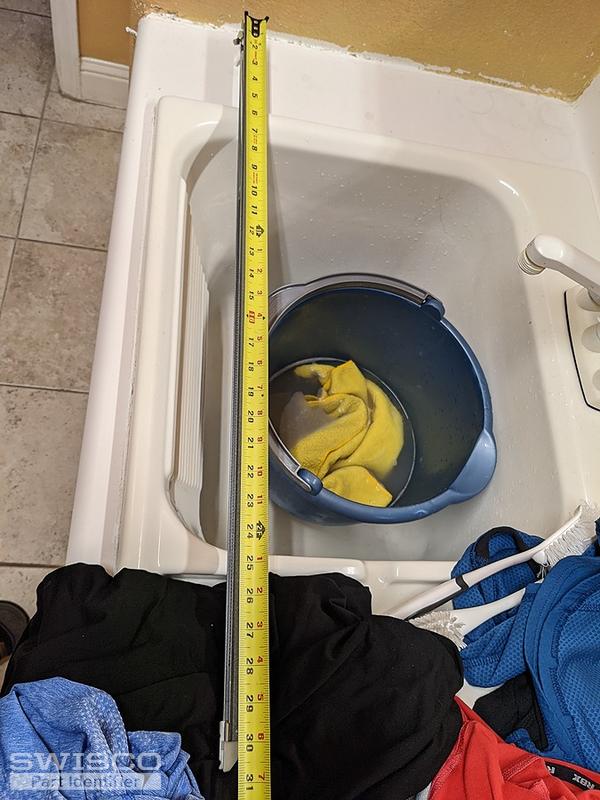

Hello, was trying to replace the channel balance on my living room windows, I believe I need about 8 total, will verify shortly, but I wanted to order the right ones. It says 29 5 CS CALDWELL, but I'm having a hard time identifying since I measured the length it ended up being 30 inches, you can see from the pics. If you need anymore let me know. Thanks
5 user uploaded images
2 Replies
Casey from SWISCO
Dec 30, 2020 10:10 am
Hello, thanks for posting! It looks like you could have either our S380-30 or S385-30 with the 2950 stamp option. The difference between the Series 380 and the Series 385 lies in the depth of the shoe. Take a look at the picture below for more detail. Once you have determined this dimension you should be able to select the appropriate balance.
Comparison of the S378, S380 and S385 balance shoes.
