The size of the track is (about): 2 3/4 wide (total), 1/2 inch high, with roller groves at 1 3/4 apart.
Wardrove Mirror concave rollor
Home Owner from Los Angeles
Oct 16, 2014 3:26 pm

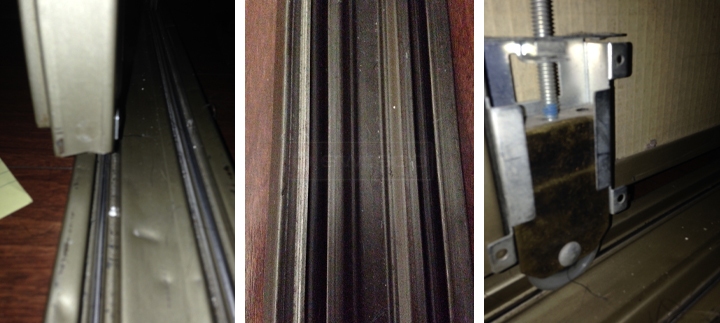

I purchased and used the 23-070 concave roller, but the plastic wheel continues to rub and is wearing-out. The size of that wheel is 5/16 thickness. The unit itself fixes well, but the wheel is too think for that track. Do you have any suggestion for new units for that Wardrobe Mirror door?
The size of the track is (about): 2 3/4 wide (total), 1/2 inch high, with roller groves at 1 3/4 apart.
The size of the track is (about): 2 3/4 wide (total), 1/2 inch high, with roller groves at 1 3/4 apart.
3 Replies
Paul from SWISCO
Oct 20, 2014 11:44 am
The weight of the doors might be too much for the wheel. The track runners look good in your photos, so I suggest our 23-086 ball bearing roller. You might find that this holds up and perform better under heavier weight doors.
Professional from California
Oct 20, 2014 9:10 pm
Both of those rollers should be the same width. The ball bearing one is much better though. Your problem may be the track. If the wheels fit in some spots and not others, the track may be bent. That looks like the roll form version of that track. I have successfully taken that track up from the floor and reshaped it by hand. It bends very easily. If it is not properly supported in the middle, the whole thing can just curve inward.
