Warnock Hersey Series: 870SGD

Question

Good afternoon! I'm looking for a replacement handle and lock mechanism for a Warnock Hersey Series: 870SGD door. Do you carry these parts?

I've attached pictures of the remaining door handle and empty slot where the missing locking mechanism should be installed. Unfortunately, it's very difficult to take pictures that accurately display the measurements. Therefore, please refer to the following approximate measurements.
Inside Handle: 7 3/8" x 1 1/8"
Outside Handle:
7 5/16" x 7/8"
Handle screw spacing:
3 15/16"

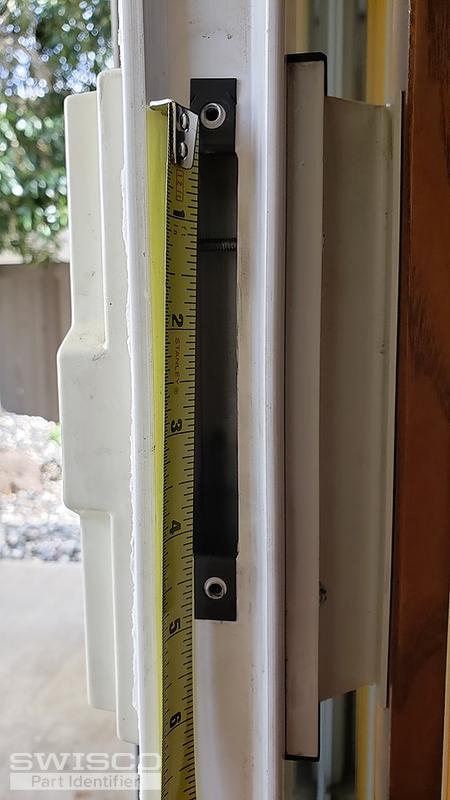

Lock mechanism slot:
3 7/8" x 7/16" wide

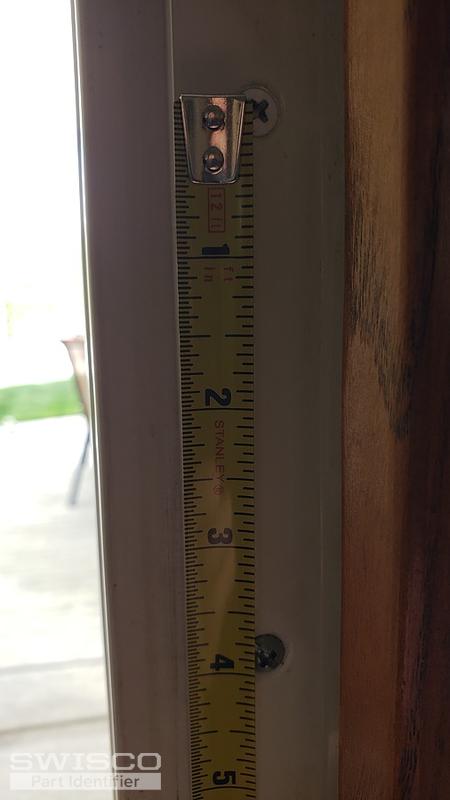

Lock mechanism screw spacing:
4 5/8"

Again, I'm looking for the locking mechanism and control lever, or a new all inclusive handle with locking mechanism.

Thank you for your time and help!

Bob · Accepted Answer

Hello there, thanks for the detailed measurements. For the mortise lock, take a look at our 82-226. This has the same hole spacing and I think should fit that hole, but go over the dimensions again to be sure. This mortise lock works with handle sets that have 3-15/16" hole spacing such as our 82-030. Let me know if you have any further questions.
