We have a metal bifold door measures 24 wide by 89 high.

A home owner from Palm harbor florida says:

April 27, 2017

We need new tracks and possibly new pins for this metal bifold door 24x89

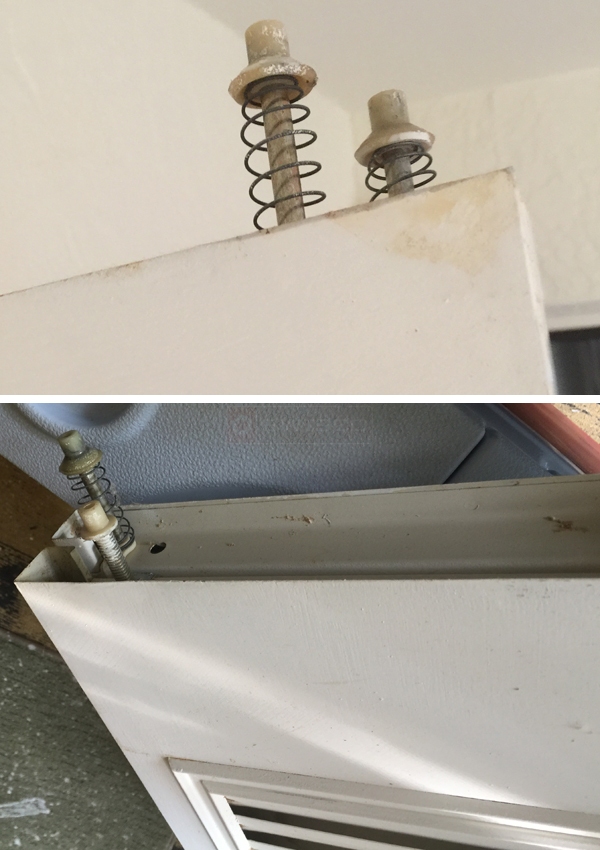

User submitted photos of bi-fold door hardware.

Tom from SWISCO responded:

May 2, 2017

Can you show me a picture of one of your pins out of the door? Can you also give me its dimensions? I'd need to know the diameter of the pin and the cap. Thanks!

A quick learner from Palm harbor fl says:

May 3, 2017

Hi Tom, pins are 6 1/2 inches long and 1/4 in diameter . Don't think we need the pins they seem to be in working order. We would like to have them as a back up and we need the track for the top of door and bottom. Size 24 wide.. thanks !!

Paul from SWISCO responded:

May 8, 2017

Looks like you have a Slimfold bifold door. The bottom threaded pin looks like our 21-001 and the other guide and top pivot pins would be the 21-007. The track, our 21-404, comes in 47" lengths, so you would have to cut it in half to have two 23.5" long tracks.

Bifold Door Guide Pin

21-007

$3.87

Bi-fold Door Pivot Assembly

21-001

$6.95

Bifold Track, 4' Opening

21-404

$12.75
