We need 18 of these replacement balances

A quick learner from The Villages, FL says:
See above
Thumbnail of the uploaded file named 51F3B86E-6B06-411F-A1AA-0AE06370F313.jpeg
Profile picture of Manuela
Manuela from SWISCO responded:

I am confident we can help you with a replacement balance, but we need a bit of help from you before we start. We need to see photos showing the entire balance. The nylon fittings on both ends helps us determine which replacement balance to recommend.

A quick learner from The Villages, FL says:
Additional photos of window balancers
Thumbnail of the uploaded file named FD31326E-F2C8-4AAD-AAB3-47C52C5252F9.jpeg
Thumbnail of the uploaded file named F8C75DB5-A65E-4954-A956-3E13BF502FDD.jpeg

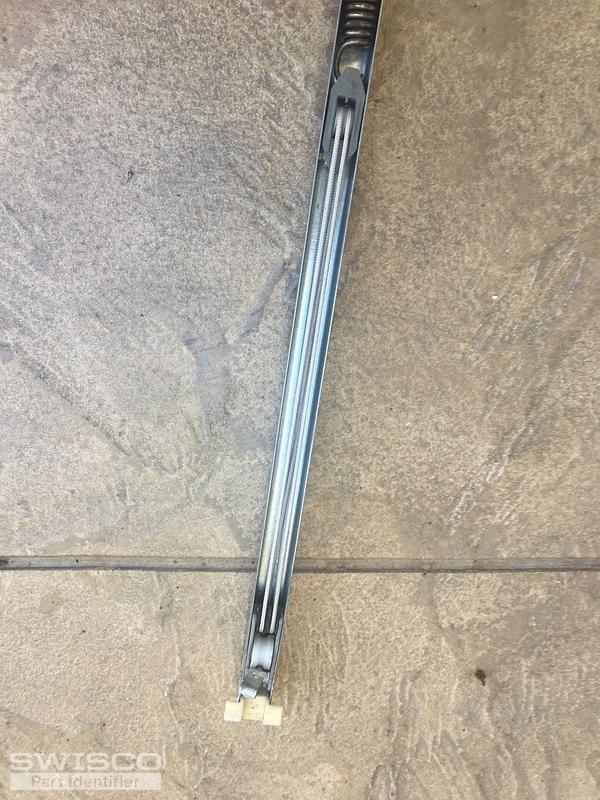

Thumbnail of the uploaded file named 33E823FB-7407-47AF-A7DC-94A99DD5CBC0.jpeg

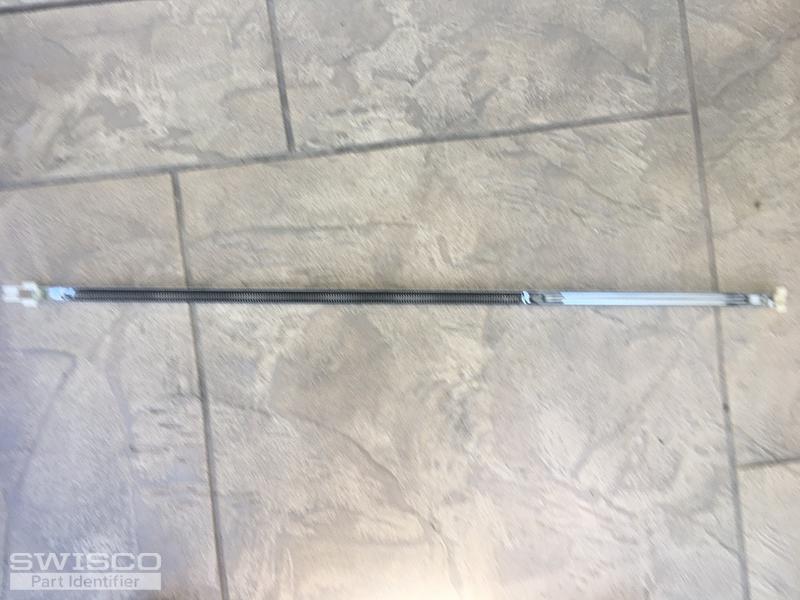

Thumbnail of the uploaded file named 34AF4FCF-4C3E-41A3-8810-1CF2F37BB407.jpeg
Profile picture of Manuela
Manuela from SWISCO responded:

These photos are perfect! Have a look at both our S380-30 and S385-30 channel balances. Based on the 'depth' measurement of your bottom balance shoe will determine which of the two balances is the better match. Whichever one chosen will go with a 2940 option that supports a sash weight of 23-28 pounds.

Close up of the S385 balance bottom.
