Weather Seal Widow Balance Identification Assistance Request.

A home owner from Oswego, Il says:
April 9, 2020

Would you please help identify the replacement balances needed? Need a few both the 32" and 28". Also, could use assistance in identifying the u shaped channel guide in which the bottom pins are inserted as I will need a couple of those and pins as well. Please let me know if there is anything else I can provide.

Thank you,

John

Thumbnail of the uploaded file named 32B balance stamp
Thumbnail of the uploaded file named 28B
Thumbnail of the uploaded file named 1E95E807-A08E-4BB2-9C8C-969513A673B6.jpeg

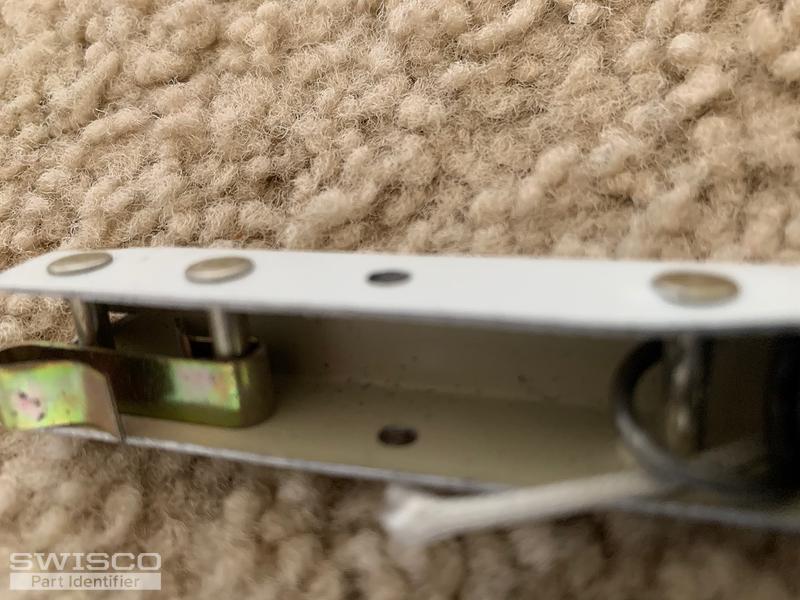

Thumbnail of the uploaded file named A0688F77-FBD6-49B1-812D-F0803845C466.jpeg

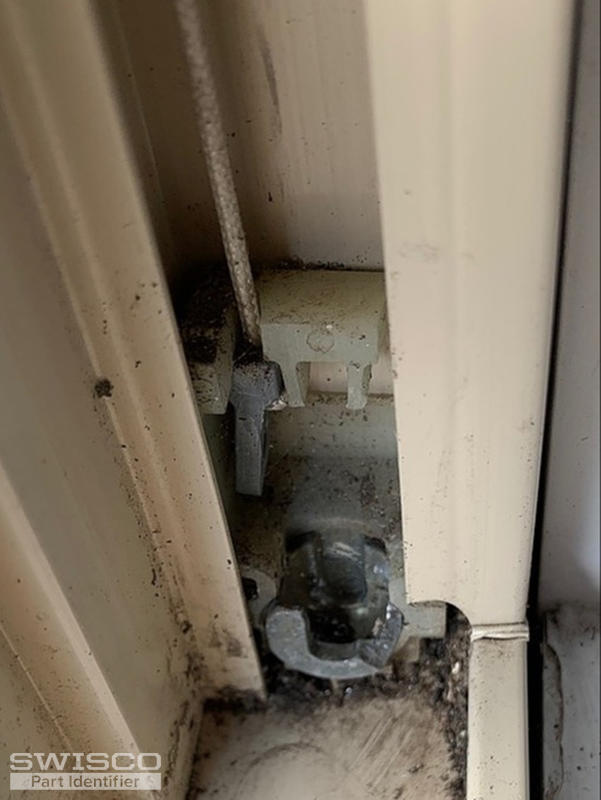

Thumbnail of the uploaded file named A8B2FDA1-FB21-427E-BC92-AE3A291FA779.jpeg
Profile picture of Tom
Tom from SWISCO responded:
April 10, 2020

Hey, John! Looks like you need a new channel balance and pivot shoe. These look fairly standard so I don't think supply them will be an issue. Start by looking at our Series 770 channel balance and our 15-188 pivot shoe. I'm less confident about the pivot shoe, but it's worth considering anyway. I recommend looking over our measurements just to ensure that it's the same size.
A home owner from Oswego, Il says:
April 13, 2020
Thank you for your help!
Profile picture of Tom
Tom from SWISCO responded:
April 14, 2020

 You're welcome! I'm always here to help if you had any follow-up questions.
