Weather Shield Casement-Awning crank mechanism replacements.

Handy Person from Durango Colorado 81303

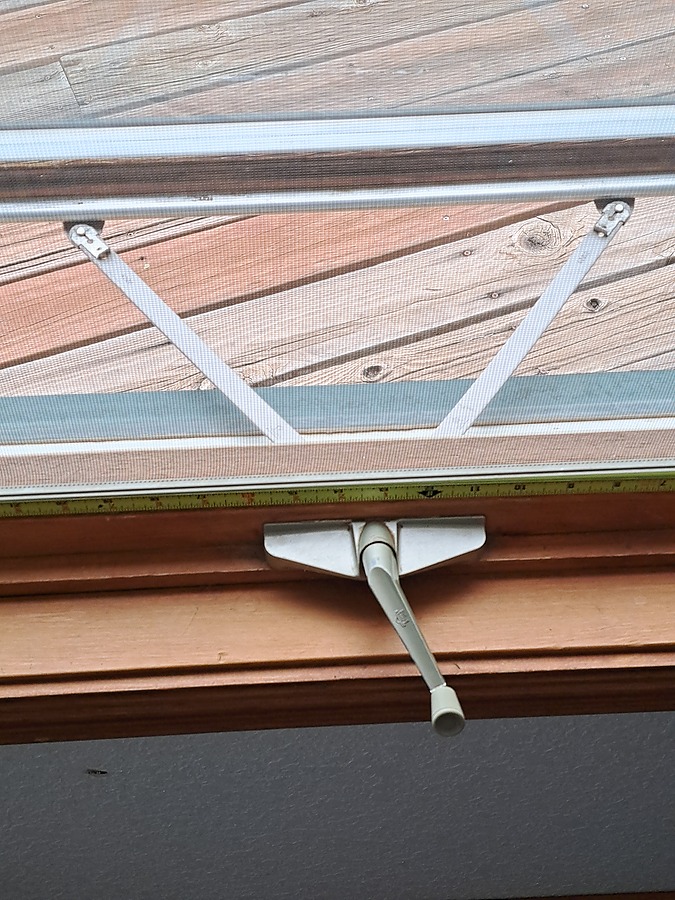

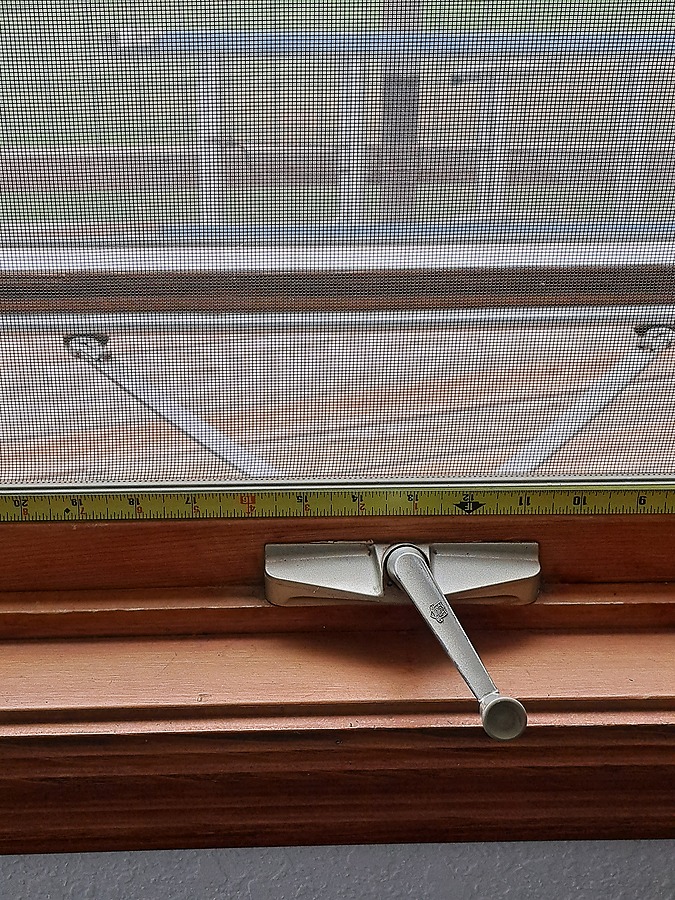

The crank housing is stripped out on two windows. The guide is 26 1/4" end to end.  The window opens about 9 1/4 inches.  The two arms have the numbers 40011 and 40012  on them and the crank has 45199 cast on it.
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your operator resembles the 39-348, which uses the 36-078 shoe studs and 39-205 folding handle. Take a look at the image below to confirm it's a match. Thanks for posting!

detail of 39-348
detail of 39-348

Dimensions for 36-078
Dimensions for 36-078

Dimensions for 36-078
Dimensions for 36-078
