Weather shield Vision Series 2000 window

Quick Learner from Longs SC
Aug 25, 2023 12:09 pm
Color white, quantity needed 2

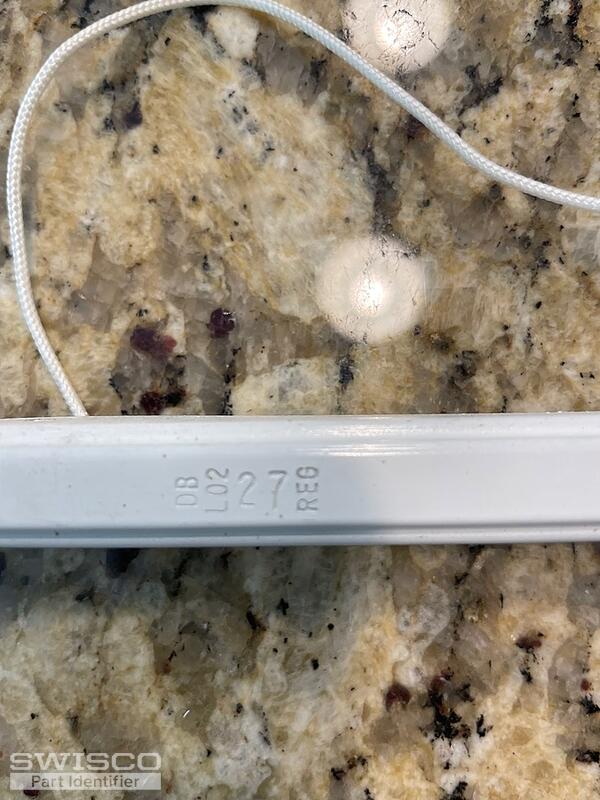

Balance spring assembly measures 28" long, ribbed outer Metal surround numbers on metal surround is DB L02 27 REG
IMG_0229 IMG_0234 IMG_0233 IMG_0232
4 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Aug 25, 2023 1:40 pm
SWISCO
EXPERT

Hello,

The channel balance shown in your photos resembles the S751-28. The 27REG stamp normally indicates that you would need a 27R strength option, which will support a window sash between 10-19 lbs. Take a look and compare the specifications of this balance to yours. Thank you!

Close up view of the S751 balance top.
Close up view of the S751 balance top.

Close up view of the S751 balance shoe.
Close up view of the S751 balance shoe.
