Weather strip on glass.

Home Owner from USA
Weather strip on glass.

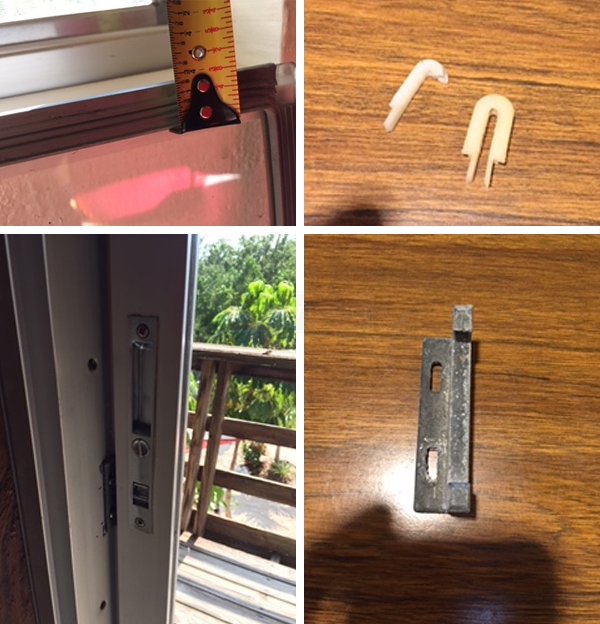

User submitted photos of patio door hardware.
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert
What you show in your photo is known as vinyl glazing. However I'm afraid we do not carry that size. To be honest, based on your picture the glazing looks fine. If you feel you need to replace it I would suggest going to a local glass shop to see if they can supply it.

As for the patio door locking handle and keepers, look at our 82-002 and 89-003. These type of keepers normally go with the 82-002. The keeper you show looks like our 89-031. For the top nylon guide, I would suggest something like our 86-001, 86-010, or 86-025.
Quick Learner from Florida
Thanks for the info-I figured out everything you stated already but wanted more exact info on replacements

As for keepers-we need to replace exactly what we have so we will go with 89-031. We cannot use 82-002 since the teeth part will be too wide for our sliders.

I need to replace one handle-PLEASE ADVISE of a replacement one for the one in the picture that will work with keeper 89-031,

Thanks
Paul
Paul from SWISCO
SWISCO
Expert
I'm afraid the exact type of handle used with that keeper isn't available anymore. You can reuse your old lock tooth with the new handle set, or purchase our 82-203 separately.
