Weathershield Pivots for a 30HD balance

Handy Person from Goodman, WI

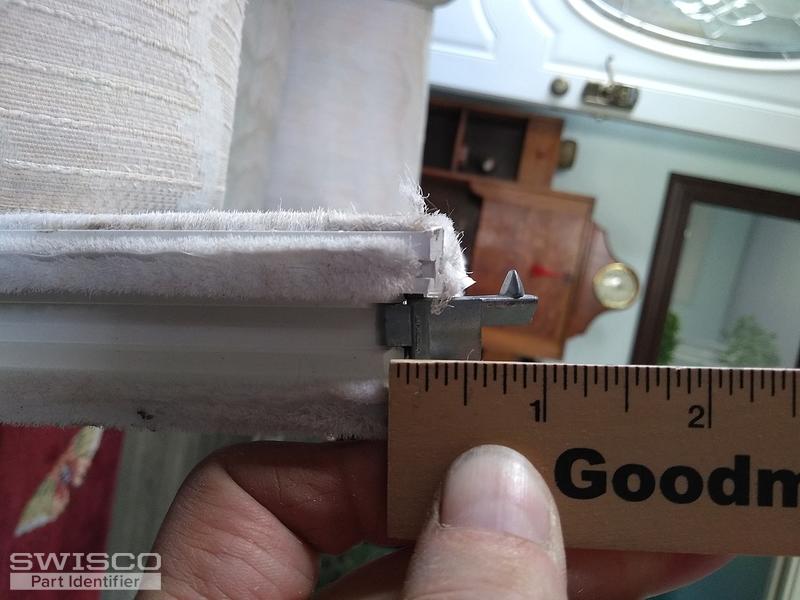

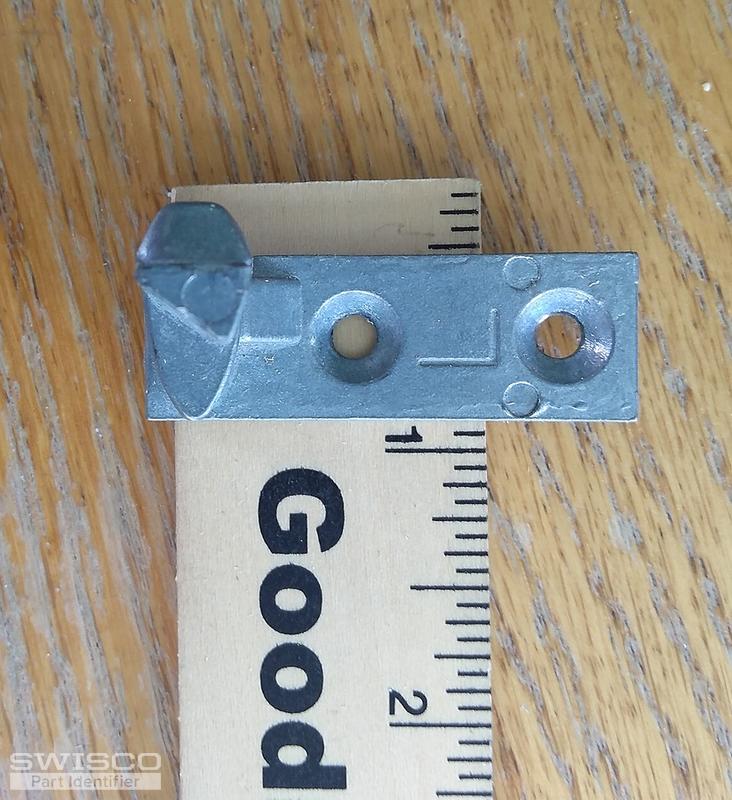

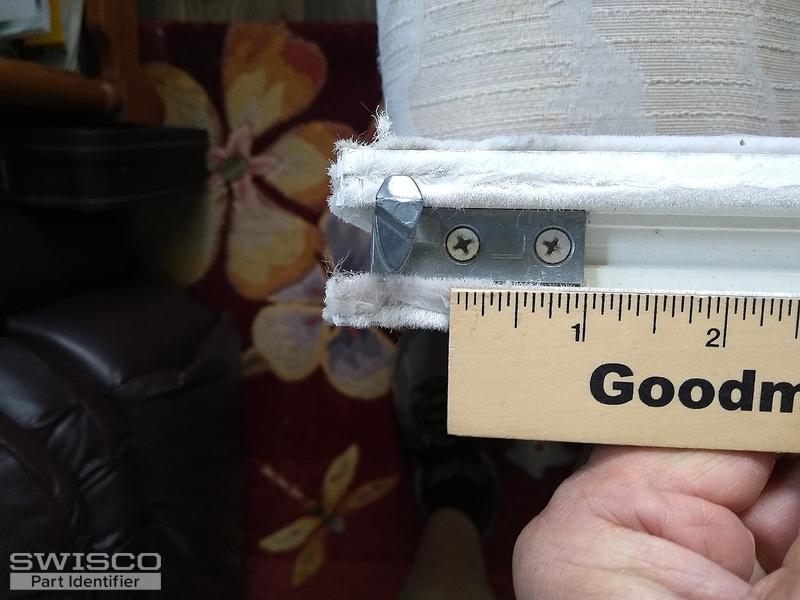

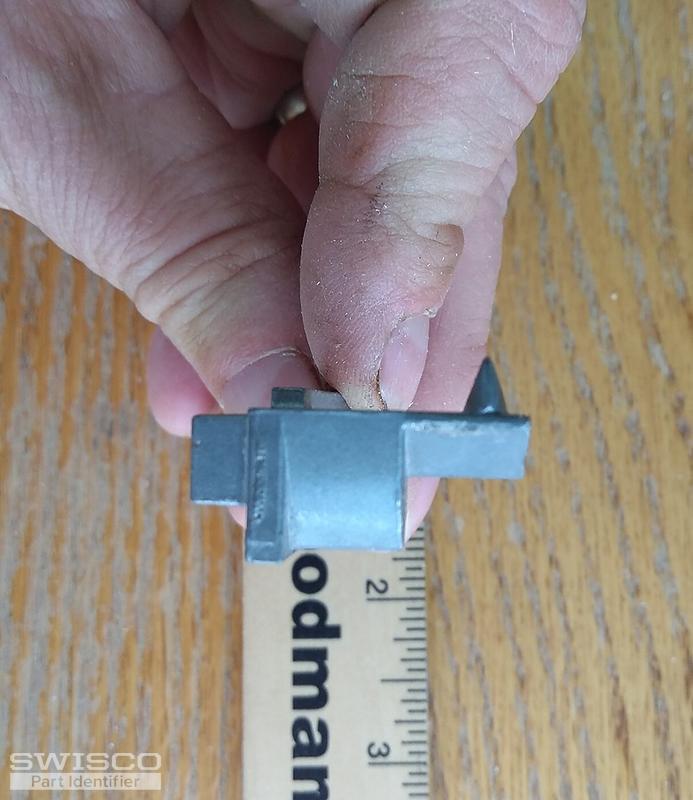

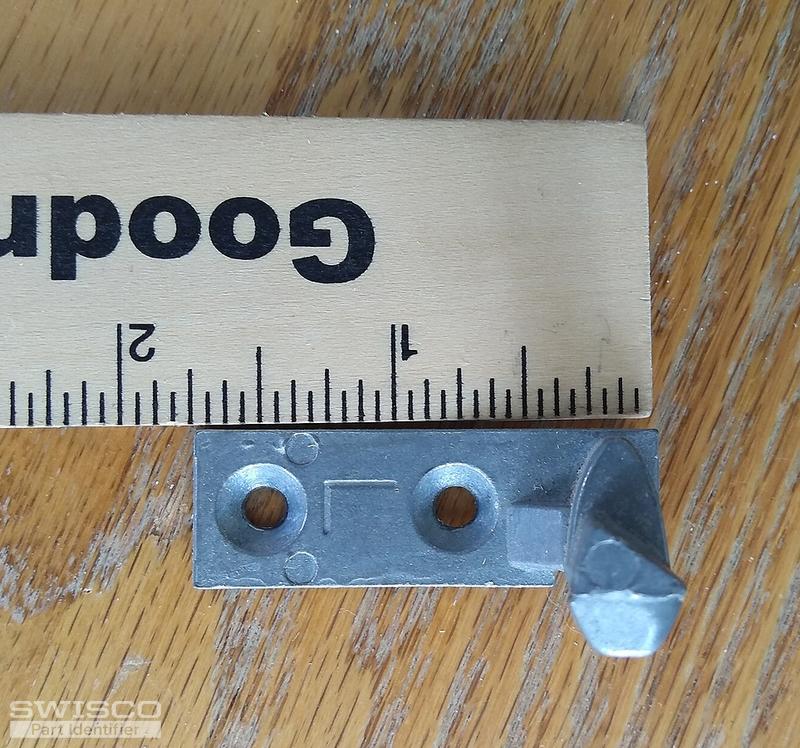

I recently purchased the slide balances from you but discovered several RH pivots are broken. The attached photos show the intact LH part. I can't find one close to this. The brand is Weathershield. The 30HD slide balances are an exact match except for the mounting holes location.

Thanks for any help you can give me.

Jim

5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hey, Jim. Your old pivot bar isn't made anymore but I believe our 26-150 can be used as a substitute. Look over this pair and let me know what you think.

You also mention a 30HD balance, but that's not a part number. That stamp only tells us what the strength of the spring is. If you can tell me the Series I can confirm if the 26-150 is compatible.

Tom
Tom from SWISCO
SWISCO
Expert

Gotcha, thank you! The 26-326 is not compatible with the shoe on the Series 751, but the 26-150 I mentioned is.

Handy Person from Goodman, WI
Thank you for the prompt response. The balances are series 751 and are identical to the existing units except for the mounting holes.
I have your suggested pivot in my cart plus 26-326 which more closely resembles the existing pivots. Let me know if these choices are okay. I can make almost anything work.
