Weathershield Window part replacement for 2 windows

Question

Attached are 3 pics of our 2 windows which need parts.

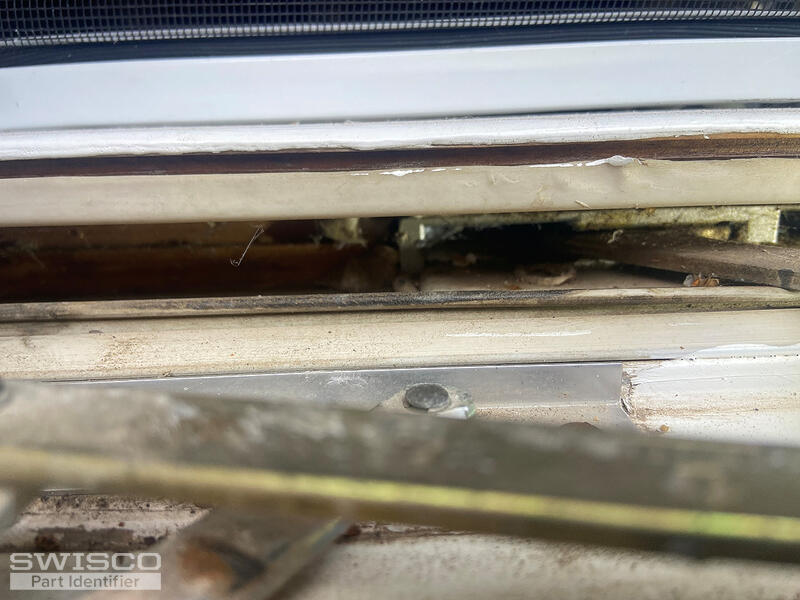

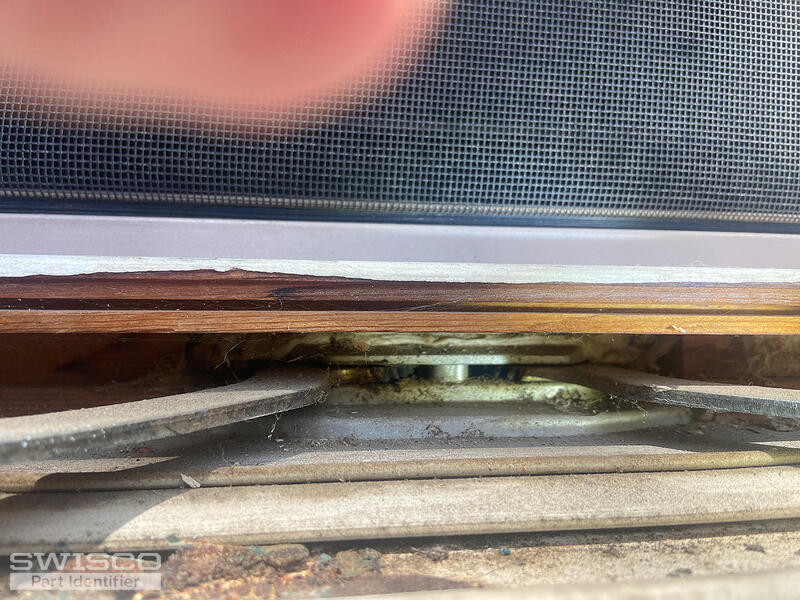

The bathroom window crank mechanism becomes unscrewed when closing the window.

Does the whole crank mechanism need to be replaced, or only the corkscrew itself?

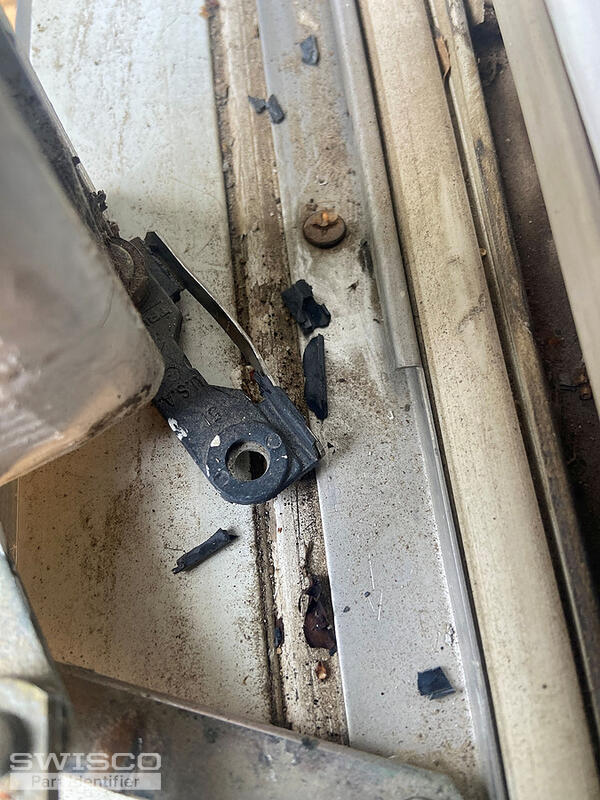

The bedroom window has a plastic part which has broken in the bad window picture.

That part seems to hold the bottom window corner to the window frame.

Might you be able to suggest parts for these 30 year old windows?

Thanks

Emily · Accepted Answer

Hello!

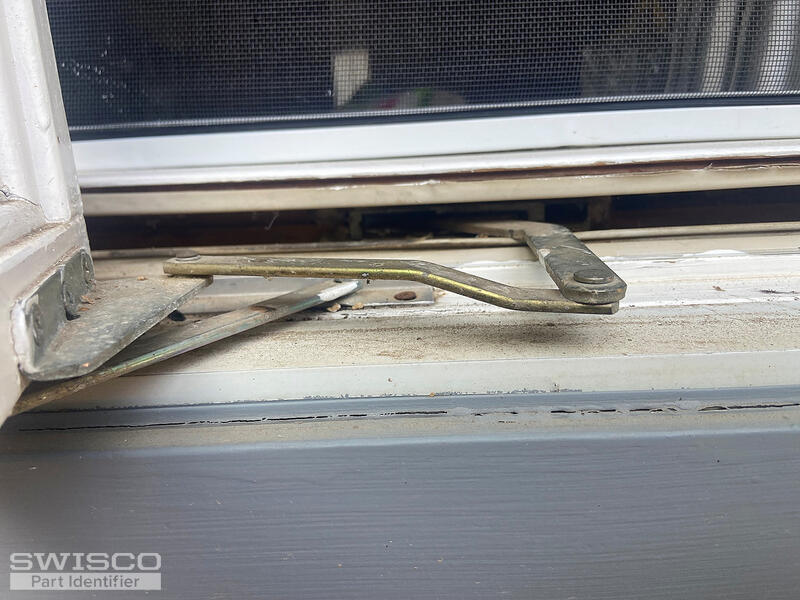

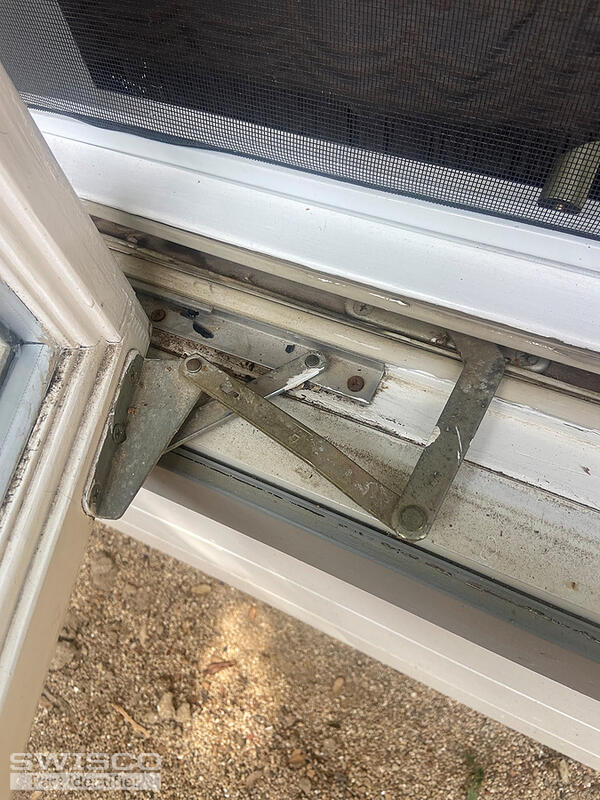

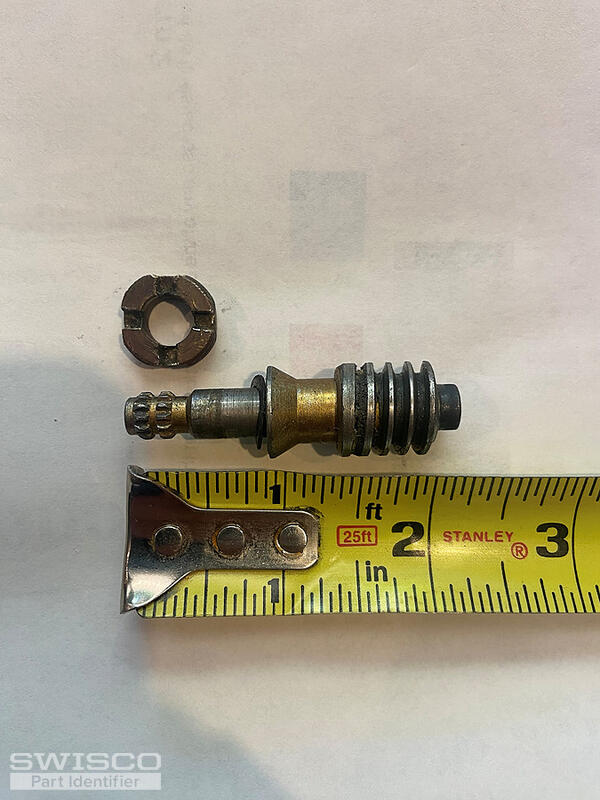

Thank you for reaching out to us. That corkscrew-looking part is called a worm gear. Yours appears to have come out which means the operator is stripped and needs to be replaced. We may be able to help but we would like to see a photo of your operator with the window open so that the arms that move the sash are fully visible.

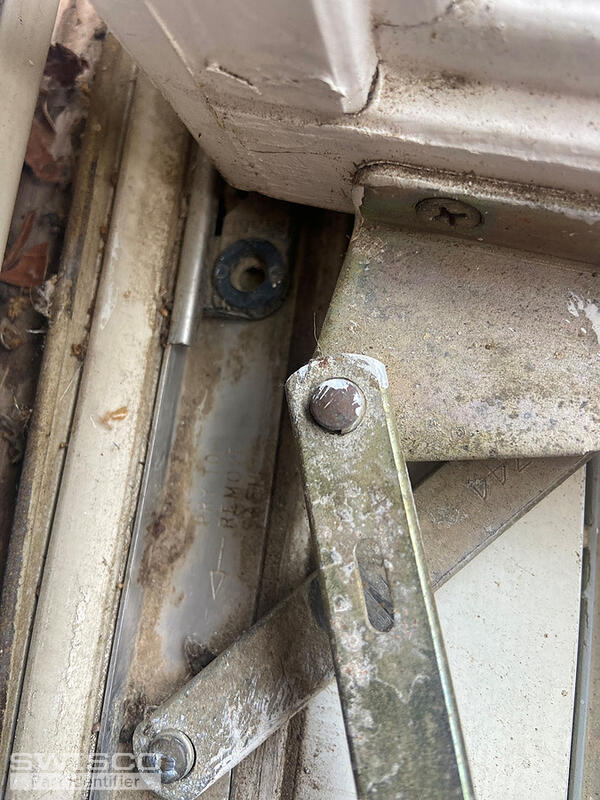

As for the hinge, I recommend you take a look at the 36-048 to see if the specifications match what you need.
