Weatherstripping for 1987 or 1988 Caradco Wood sliding door

Question

Hello,
I am struggling to properly identify the proper weatherstripping I need for my sliding door. I know it is old but I was hoping i could replace all of the weatherstripping to get less drafts. I apologize for my ignorance but I have never been able to find a parts list for this product and Jeld Wen has not been helpful at all.

Image 5319 is the gray wool pile with a plastic fin. I believe it is 58-045 in your product list.
Image 5320 is where I believe the same weather pile is missing but I have no idea if it was weather pile or not.
Image 5321 is the leaf weatherstripping that abuts the door on the vertical stop when closed.
Image 5322 is the seal on the actual moving part of the unit.

Thank you.
Bill

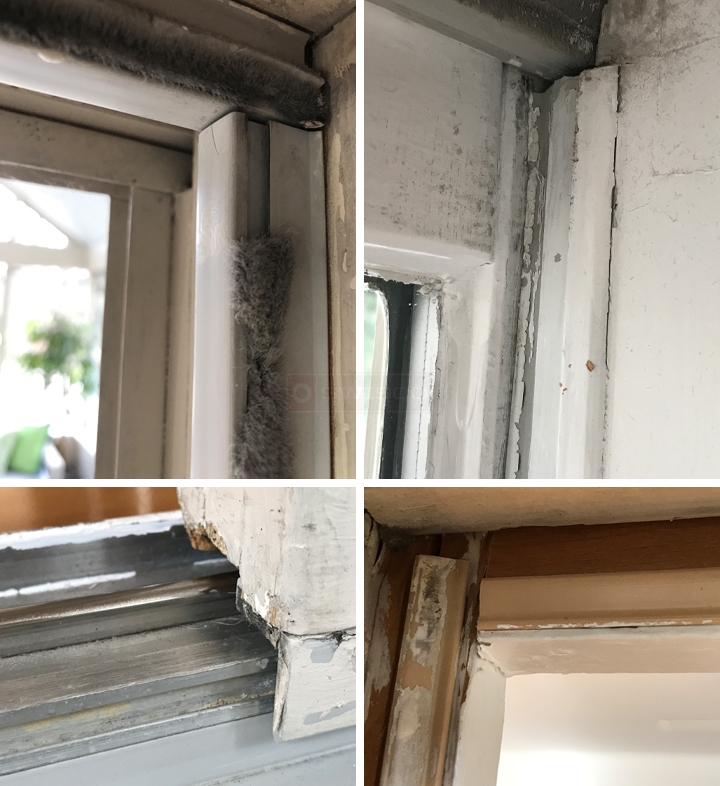

User submitted photos of window hardware.

Tom · Accepted Answer

I think we can help, but we will need a bit more information. For each seal you have, can you remove a small sample and show us a picture of its end profile? It's important to see the shape, that way we can find a match. I will also need the dimensions of each end profile. For example, the best way to confirm if the 58-045 can work is to confirm that the end profile's width and height are the same. You can see the 58-045's dimensions below.

Profile view of 58-045
