Weatherstripping for weather shield double hung wood windows

A home owner from Longmont, CO says:

October 13, 2022

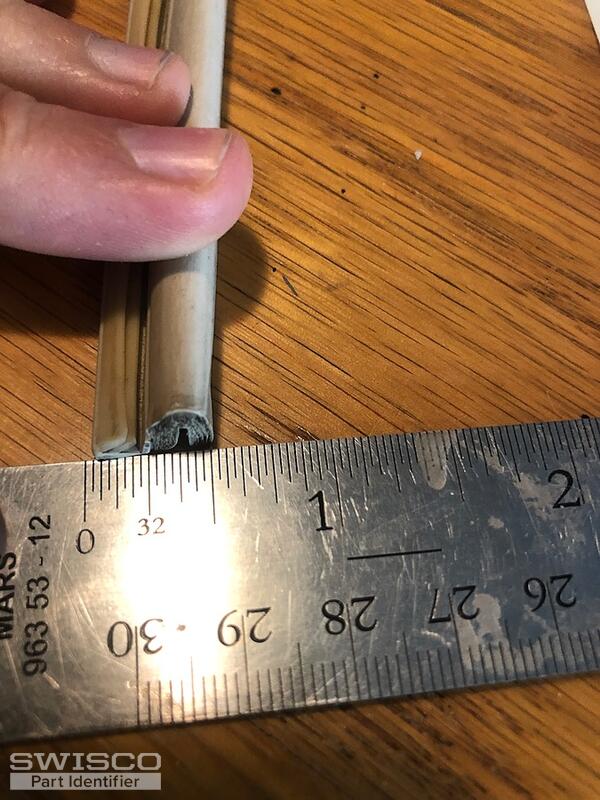

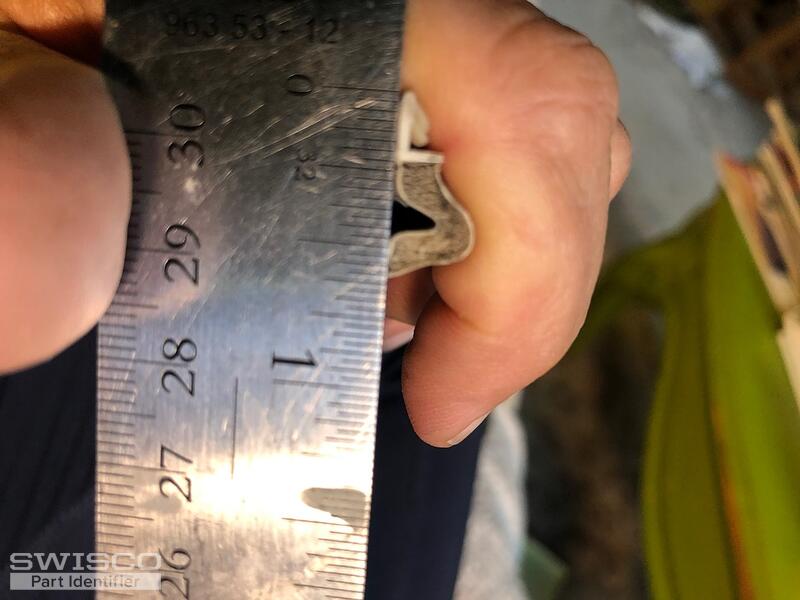

Hello, we have double hung wood windows by weather shield that were installed in 2006. I need weatherstripping to replace that in the photos. It fits in a groove on the bottom of the lower sash. The foam filled part is approximately 0.5", and the plastic insert is about 7/32" or 1/4". It looks a lot like the smaller foam filled weatherstripping you have listed for Prime Doors, but I wondered if there is a better match. Thanks in advance for your help!

Thumbnail of the uploaded file named B3CB31E9-AE9C-44EE-B496-ED0AB4416AA8.jpeg

Thumbnail of the uploaded file named F1D6B3E6-61D2-4766-8026-76A3CB5592A1.jpeg

Tom from SWISCO responded:

October 18, 2022

Hello! This does look very much like our 58-056E at first glance, but as this is mostly used on doors it will probably be too big for your application. Our 58-170B is commonly used on windows and is smaller; while its design is slightly different, as long as the size is the same then it should still work.

Review the dimensions for both products and see which one would be the better fit.

Profile view of 58-056E

Profile view and dimensions for 58-170B

Swinging Door Compression Foam Seal

58-056E

$8.95

Foam Filled Weatherseal,12ft

58-170B

$15.97
