Wells 32681

Quick Learner from Winston Salem, NC
Feb 15, 2024 9:25 am

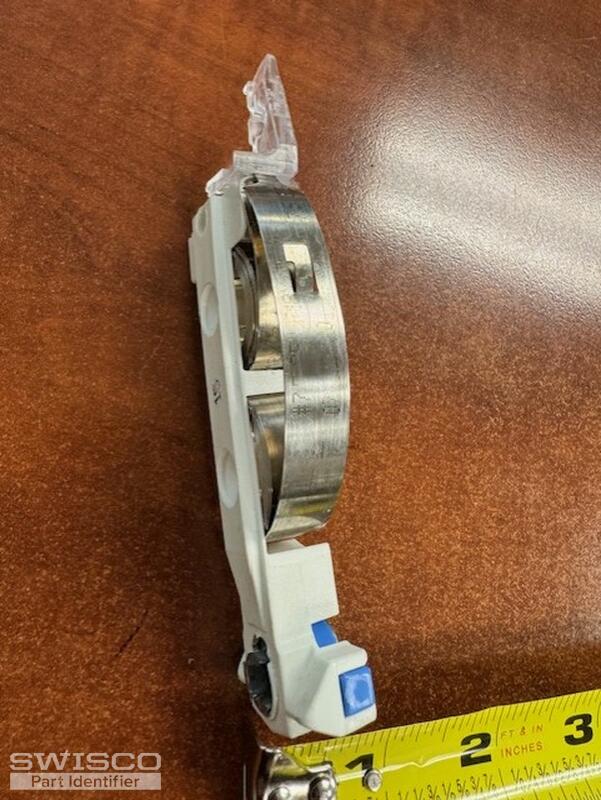

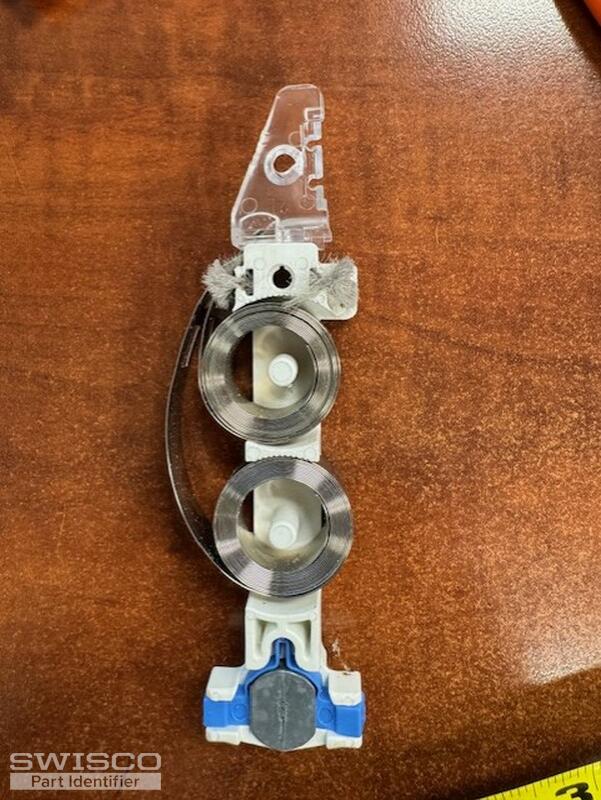

I am trying to see if you have the coil in stock - possible part number 96bu-5 OR i I know it is a 7 1/2 lb constant force spring - any help is appreciated.
thumbnail_IMG_2652 thumbnail_IMG_2653 thumbnail_IMG_2654 thumbnail_IMG_2655 thumbnail_IMG_2657
5 user uploaded images
1 Replies
+ Add a Comment
Lauren
Lauren from SWISCO
Feb 15, 2024 11:23 am
SWISCO
EXPERT

Hello, thank you for posting,

Please review the dimensions of the 15-252 inverted universal dual support as a replacement option. This support is compatible with the Series 160 coil springs along with the 16-032 mounting clip if needed.

For the coils review the S160-7 that can support 7-1/2 pounds of weight by itself. The original housing is marked with (15) which indicates that you will need (2) S160-7 on each side to support a 30 pound window sash.

Take a look and let me know if you have any additional questions.
