What Balance is This?

A handy person from San Francisco, ca says:
Hello,

Our channel balance string ripped. I just want to make sure the Product Code: S385-31 - 31" SERIES 385 CHANNEL BALANCE is the correct part.

Thank you,
Ryan

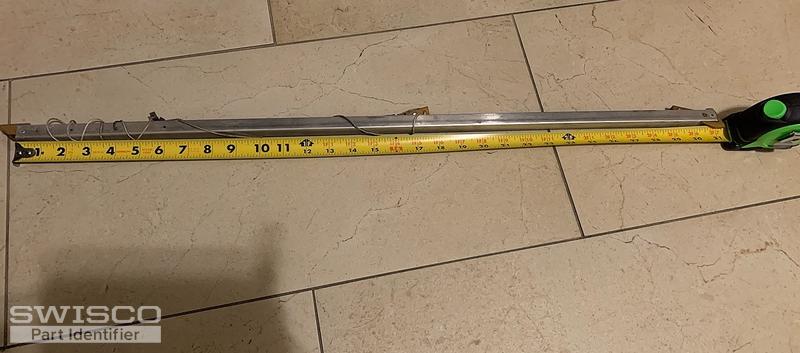

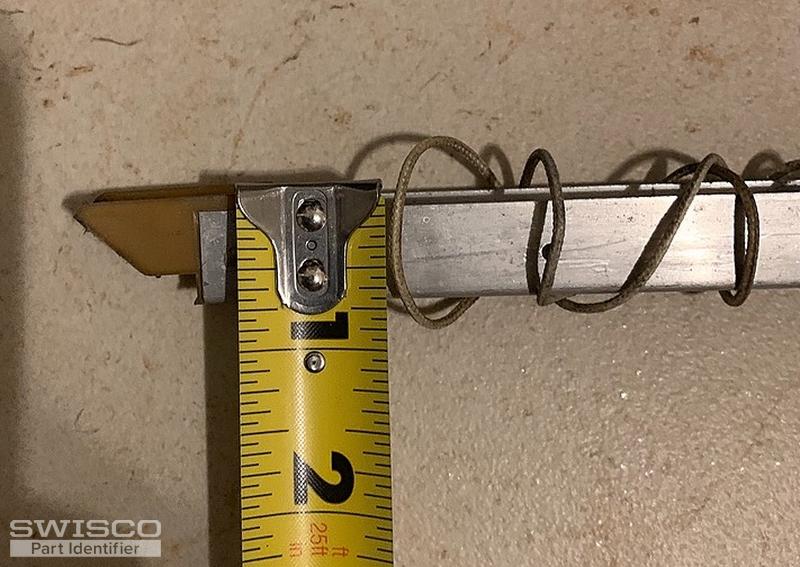

Thumbnail of the uploaded file named 93605295-E7C9-439A-B4F7-3A8C2582D917.jpeg
Thumbnail of the uploaded file named BCEEA164-E745-47C0-A647-77F9ABA8A1D2.jpeg
Thumbnail of the uploaded file named A3F45A08-604D-44DA-BE77-2194E4A2E196.jpeg
Thumbnail of the uploaded file named 3271C599-2194-4EB8-86AF-92498A18A2D3.jpeg
Thumbnail of the uploaded file named 5A982A77-C9D9-425B-82E2-D8E1FB0E2AED.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in, Ryan. This looks more like an S390-31 to me, since both nylon fittings match the 'wings' featured on the Series 385. Just double-check the 'depth' of the bottom nylon shoe to be sure it matches what you have. Look for a stamp code on the metal channel to know what stamp option to select. If there is no stamp option, or you are uncertain, weigh your window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option on the product page.

A handy person from San Francisco, ca says:
Thank you, Bob! I purchased both and I'll let you know if you are right!
Profile picture of Bob
Bob from SWISCO responded:

Sounds good! Any items you need to return, you can view our Return Policy here. Thanks for considering our business, we really do appreciate it.

A handy person from San Francisco, ca says:
Bob, thank you for the help and you were correct, it fit perfectly!

-r
Profile picture of Bob
Bob from SWISCO responded:

That's great to hear, thank you so much for getting back to us! If you ever need anything else, you know where to find us.
