What balance do I have?

Quick Learner from SARATOGA, CA
I need balance channels for my windows. The channels are 30" long, the imprint number is 2950 BA st 30, and the shoe and top look like the ones on your video that ask for the 3 parts of information that you need. Could you tell me which is the part item of the balance channel that I need so I can order them. Thank you,

Francisco
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for posting, Fransisco. The balance we used in that video was our Series 380 channel balance. Is that what yours is? Make sure to carefully compare all the dimensions, especially that of the bottom shoe. The Series 380 uses our 15-005. Is that what you have? Do the dimensions match? If anything is slightly larger or slightly, smaller, let me know and I can direct you to a better match!

Alternate view of 15-005
Alternate view of 15-005
Quick Learner from SARATOGA,CA
Information about my balance channel:

1.-imprint #:2950 BA st 30

2.-channel is 30" long

3.-attached are some pictures. The dimensions are 1/2", by 15/16, by 1 1/16"

I need the item # so I can orden the channels. Thank you,

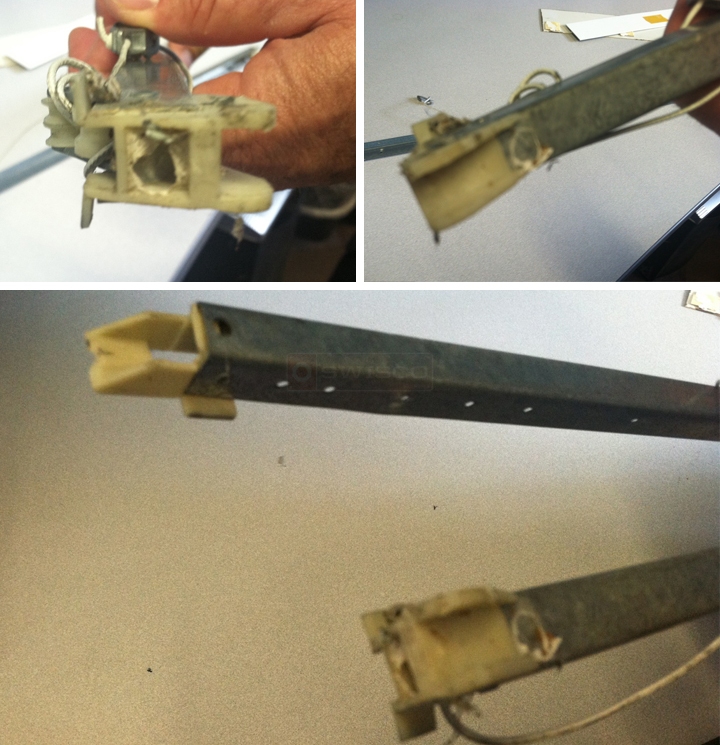

User submitted photos of a window balance.
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for getting back to us. Are the dimensions you listed in item 3 the dimensions of your bottom shoe? If so, then you might be looking at our 15-004. If you agree, then check out out Series 385 and let me know if its a good match for your hardware.
