What balance for our PGT single hung window

Quick Learner from Florida

Nov 28, 2020 2:31 pm

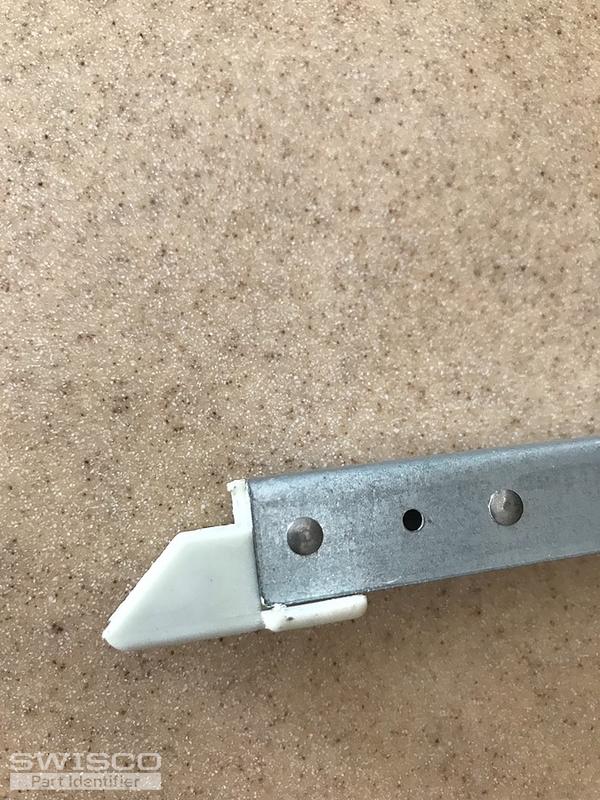

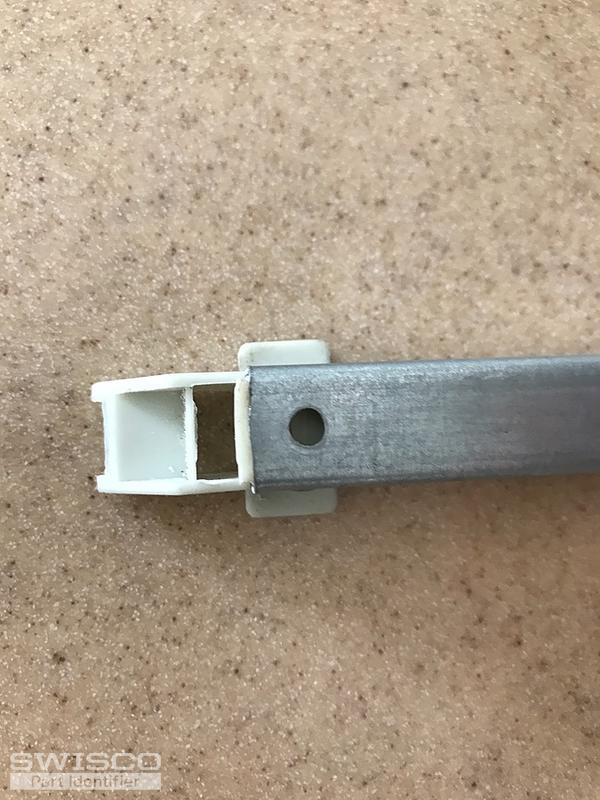

We have removed the balances from our window. Need to replace both balances. The window sash is 45.5 wide and 31.5 tall. It weighs 32 pounds. The current balance width is 1/2 " and the metal length is 30". The markings are 29 9..I'm sending pictures of current balance. Please advise.

5 user uploaded images

2 Replies

Bob from SWISCO

Dec 2, 2020 11:08 am

Thanks for posting. Looks like you have our S395-30. If your sash weighs exactly 32 pounds, choose a stamp option of 2960, which supports a window sash in the weight range of 32 through 35 pounds.
