What can I buy to replace my 26 3 channel balance?

Home Owner from Jung choi
I don't know model
And option?
1 user uploaded image
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

There is a good chance that we carry the channel balances you need, but we will need to see a picture of the entire balance, including both top and bottom attachments, to recommend a replacement for you. Unfortunately, the stamp number only tells us the amount of tension the spring requires to keep your sash raised but does not tell us which replacement you need. Thank you!

Casey
Casey from SWISCO
SWISCO
Expert

Great, we're almost there! Now we'll just need to see a picture of the attachment at the opposite end of the metal channel.

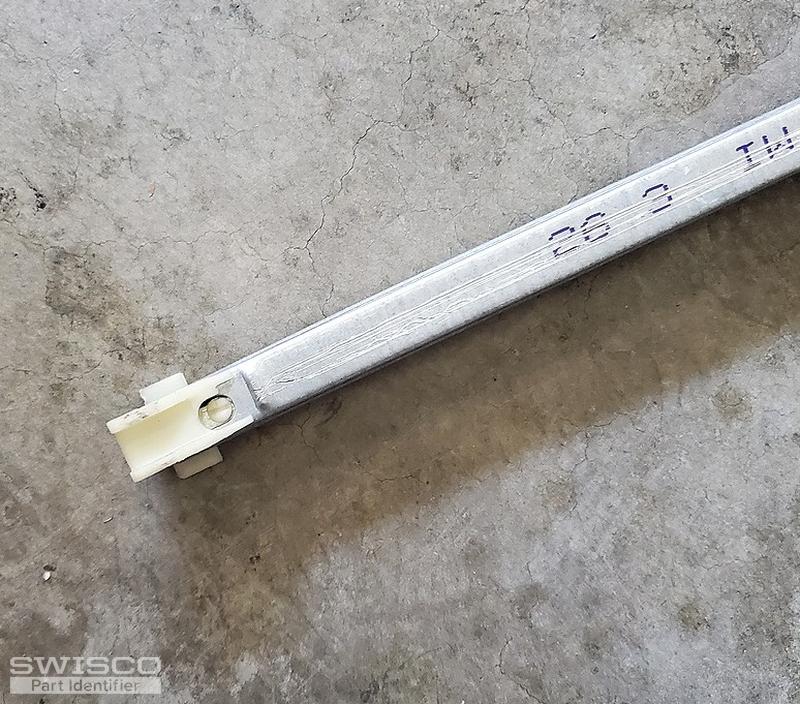

Home Owner from Jung choi
I measure only iron part

27 inch
1 user uploaded image

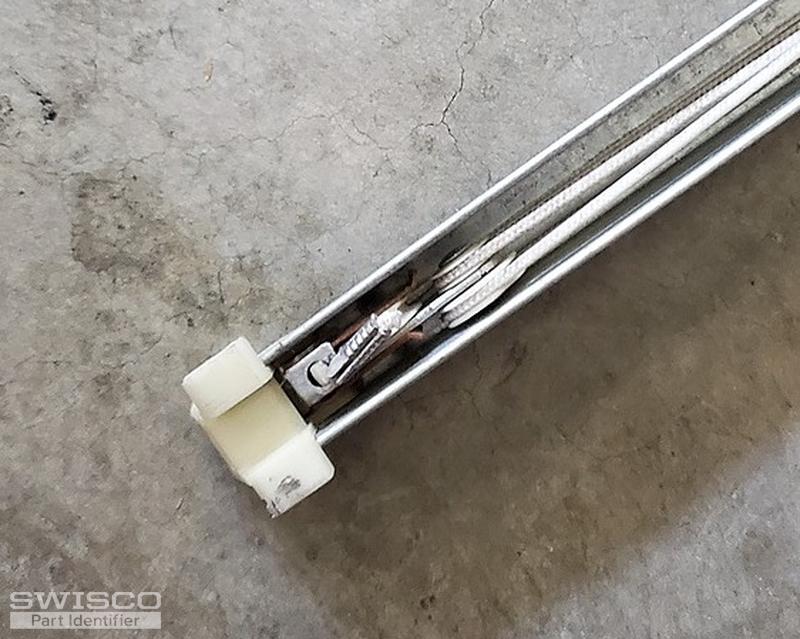

Home Owner from Jung choi
These?
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Perfect! These pictures tell me you could have either an S380-27 or S385-27 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2630 spring strength options for your replacement balances based on the stamp on your existing channels.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
