What channel balance and top sash guide do I need

Question

Kinco windows originally installed in 2002. Channel Balance is 30" long. There is a stamp 29 4 and then it looks like B1. Can you help me figure out which one I need. Also, any help on what top sash guide? They were plastic and broke. Thanks for your help.

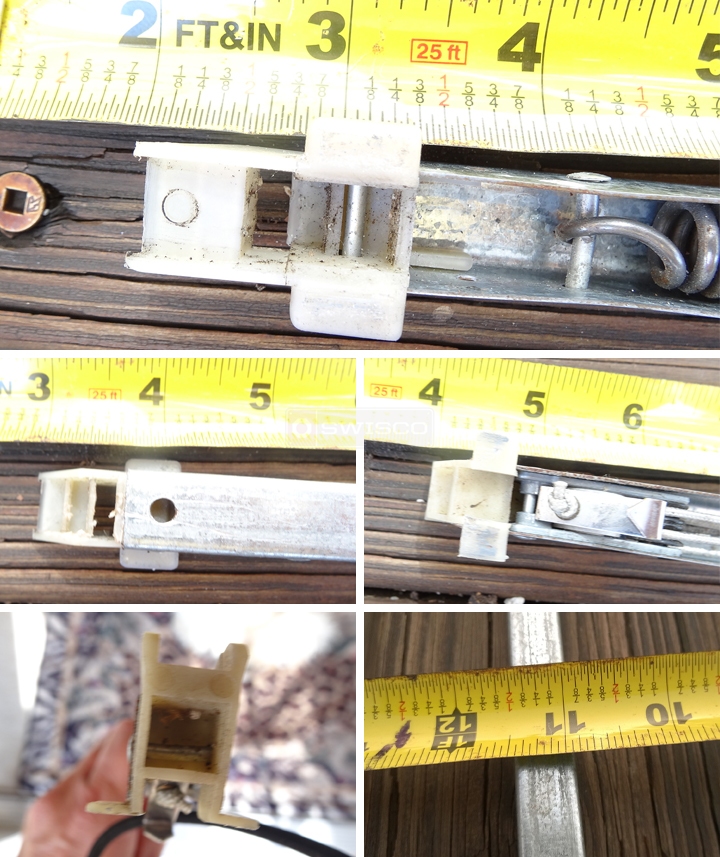

User submitted photos of a window balance.

Tom · Accepted Answer

Hey, thanks for posting. I've narrowed this down to two possible channel balance Series: either our Series 380 or our Series 385.

Now, as you can see, the only difference between these two Series is their bottom shoe. The Series 380 uses the 15-005 while the Series 385 uses the 15-004. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.

Comparison of 15-004 and 15-005

I don't see a picture of your top sash guide, but we carry two Kinco varieties. See our 18-044 and 18-166 and see if either are a good match.
