What is the right channel guide?

A quick learner from FL - Florida says:

I'm not sure which stamp option I should choose. I'm pretty sure I need the 27" S380. The only stamp I could see was 3030. The windows are double pane and weigh 18lbs ea. I have four of them and all are difficult to open and harder to close.

Thanks.

Terry

Thumbnail of the uploaded file named IMG_1431.jpeg
Thumbnail of the uploaded file named IMG_1434.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hi Terry. I can't say for sure what balance Series you need without seeing the nylon fittings on both ends of the metal channel, but a stamp code of 3030 suggests you actually need a 31" balance. If you confirm the fittings do resemble those on our S380-31, be sure to consider the S385-31 as well, since the only difference between these two balances is the bottom nylon shoe depth. Let us know if you have any other questions.

A quick learner from FL - Florida says:
Thanks for getting back to me so soon. You were right, I do need the 31". I measured wrong. I'm wondering about the sash weight. The window and frame weigh 18lbs. I'm replacing 3030, but I was thinking maybe 3020 or 3010. What would you suggest?

Thanks for your help.

Terry
Thumbnail of the uploaded file named D4DEEF58-8F10-4AA0-9E1D-EEA5A6190FCD_1_105_c.jpeg

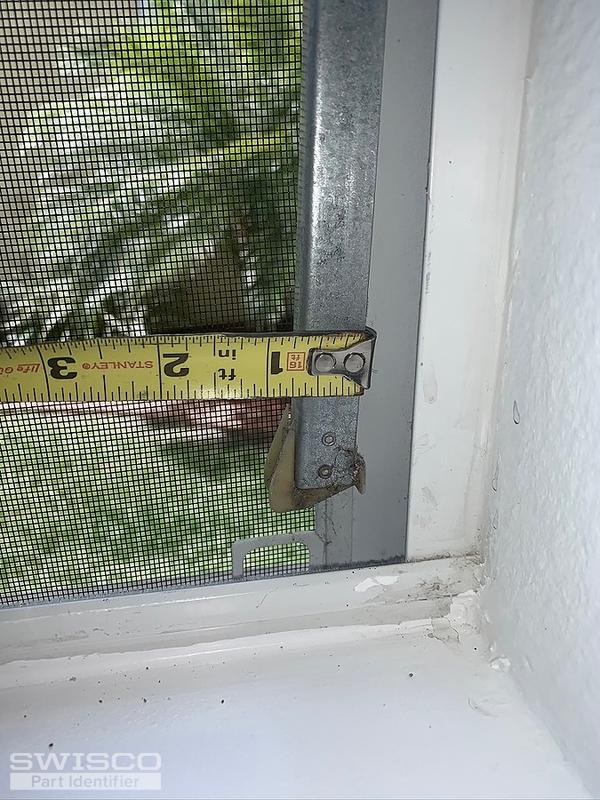

Thumbnail of the uploaded file named 0A99EE25-97D2-465B-8442-FAFEBF1D7B90_1_105_c.jpeg

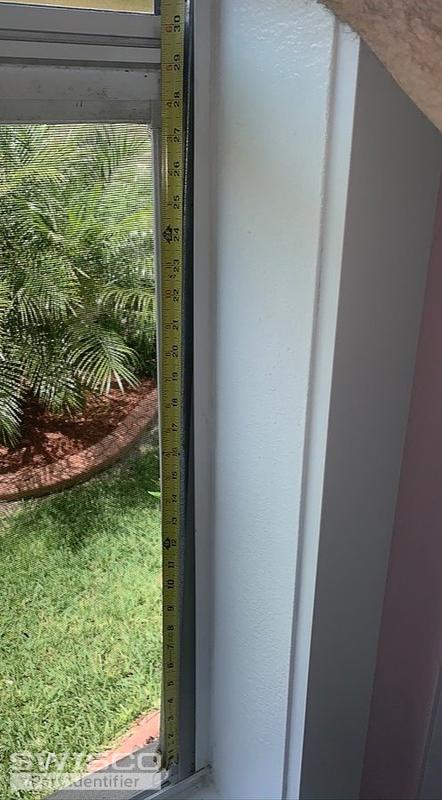

Thumbnail of the uploaded file named 0DC6922C-2CA7-46C2-97C5-40DBA77F98E6_1_105_c.jpeg

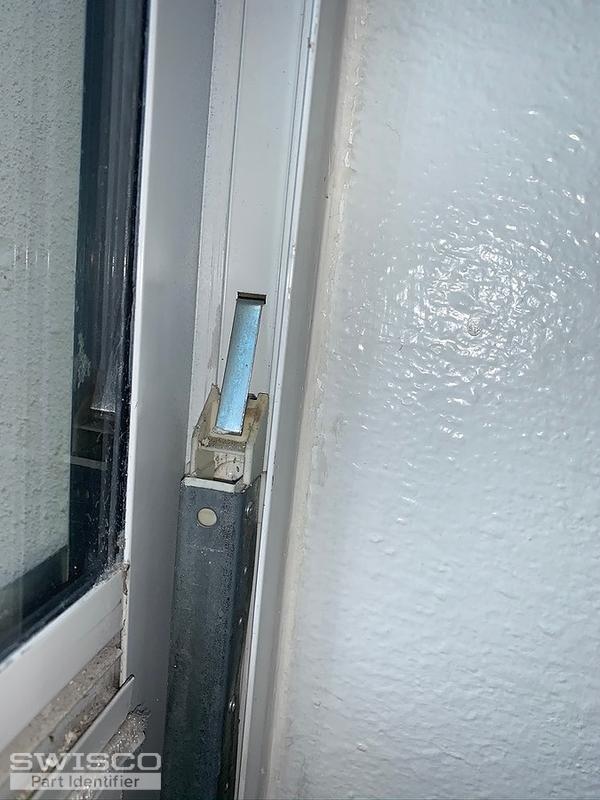

Thumbnail of the uploaded file named 37842BD5-9A07-4D7F-BB38-B1E459DF6E16_1_105_c.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hey Terry. If the window weighs 18 lbs, then the 3030 stamp option is absolutely what you want, since this supports a window sash in the weight range of 16 through 23 lbs. You always want a stamp option calibrated to support the exact weight of the sash. Let me know if you have any other questions.
