What is the thickness?

Question

I would like the dimensions of your Product Code: 70-026.  I need to know the height (or thickness) at all three sections (Leg, hole and arm).

Paul · Accepted Answer

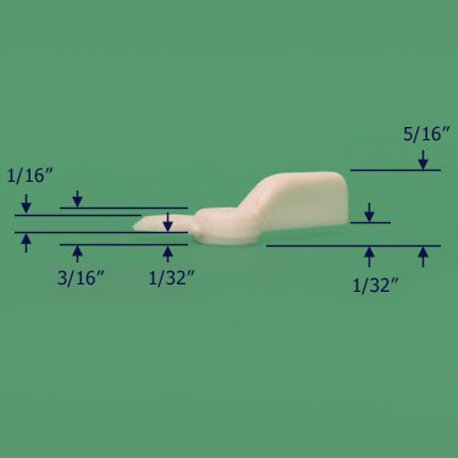

The thickness of the latch is 1/16", the thickness of the center is 3/16", and the height of the finger lever is 5/16". The included picture displays the profile of the 70-026 turn clip with detailed dimensions.

Profile of the 70-026 window insert turn clip.
