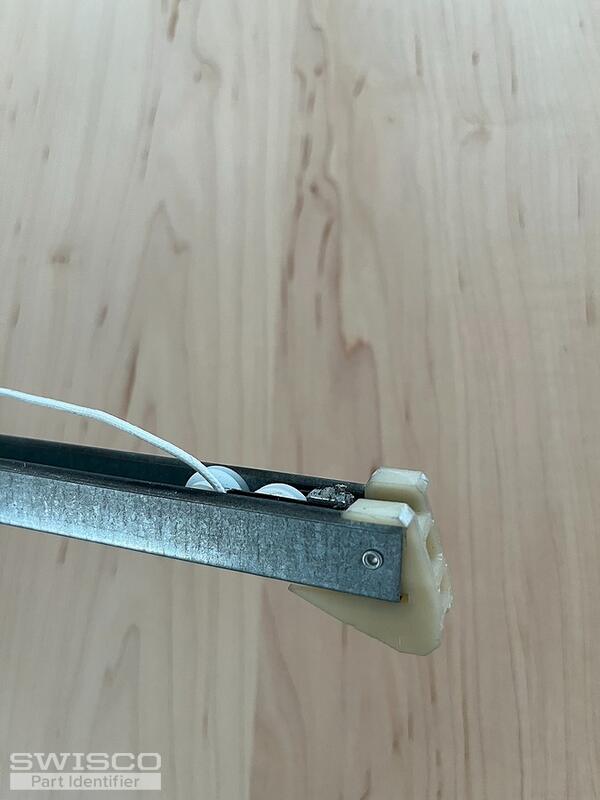

It states 14 5 HR Caldwell on the side
Metal channel is about 15" long. Width of channel is about 9/16"
What model of window balance is this?
Quick Learner from Washington
Aug 14, 2024 5:22 pm
4 user uploaded images
2 Replies
Bob from SWISCO
Aug 14, 2024 11:14 pm
Thanks for writing in. This looks like either an S380-15 or S385-15 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, but the 'heel-to-toe' measurement. See the diagram below for reference. Compare both balances with your old hardware to see what matches best. For a stamp option choose 1450.
Comparison of the S378, S380 and S385 balance shoes.
