What part should I buy

Question

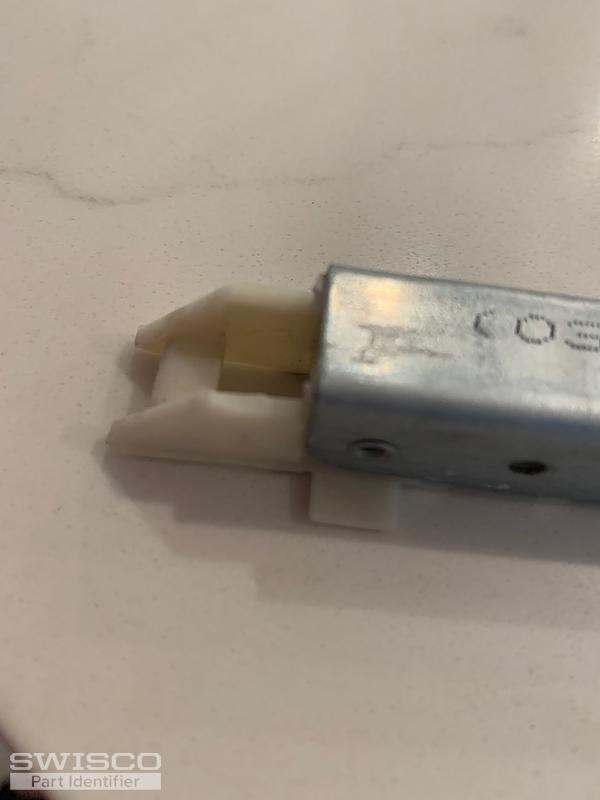

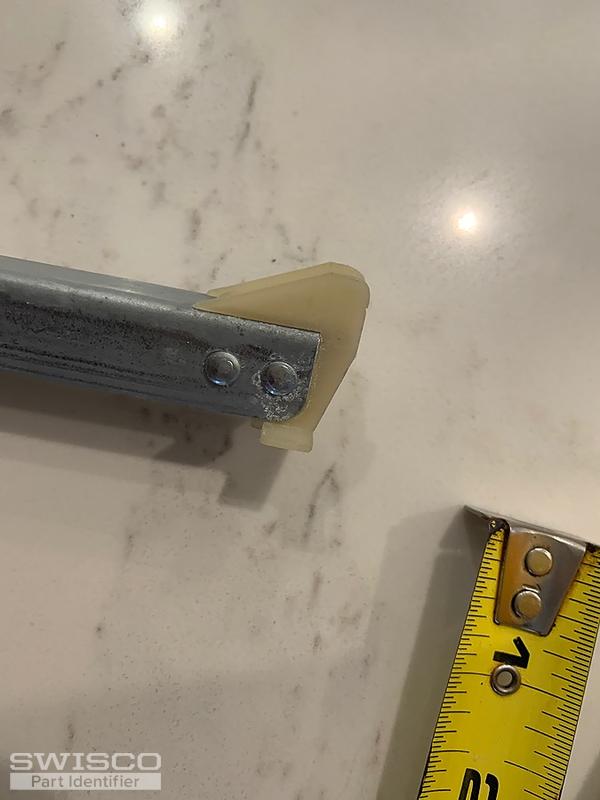

What part should I buy?  I need to buy replacement channels for my vinyl windows. They are single hung, non-tilt windows. Each sash weighs 21 pounds. The guide have wings.  The bottom winged guide measures 1 inch.  The length of the channel aluminum part only measures 33 inches and the width measures 5/8 of an inch.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3230 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
