What parts needed to repair?

Quick Learner from Huntersville, NC

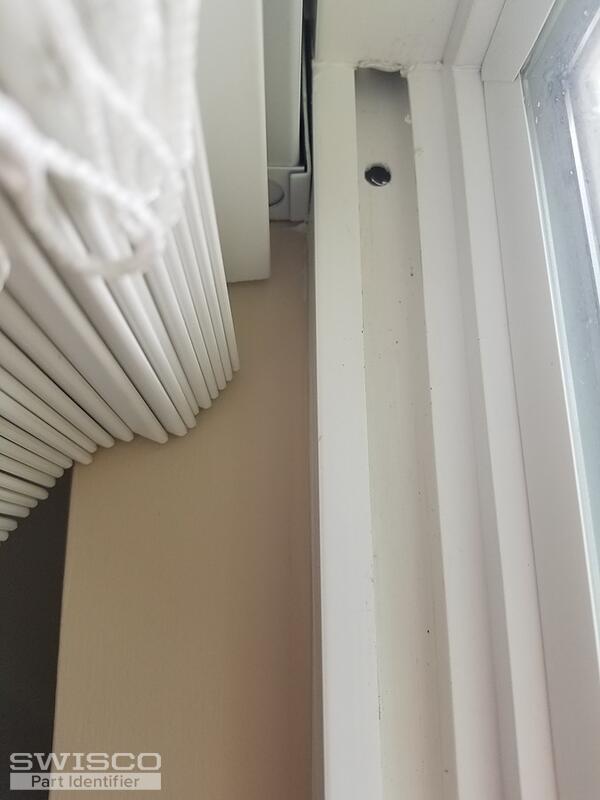

Current 795 26B balances missing the shoes. Also uses a clip as noted in photo. As I understand it, this design no longer available, but rather one that requires a screw plug and screw to be inserted into hole in window frame. Current hole is circular in shape (see photo). Will square screw plug as shown in web site fit into this circular hole (approx. 1/4 inch in diameter)?

Thank you.
4 user uploaded images
11 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello! Our screw plug actually won't work in this instance for the exact reason you outlined: our 26-200 is square, while your hole is round. That said, we can custom make a balance for you that has a hook at the top. This is pretty routine so it shouldn't be an issue.

Can you just tell me how many you needed? Can you also show me a photo of the shoe? If not from this balance, perhaps its partner, or from an identical window in the house? There are several different options for this shoe and they are not interchangeable. Seeing yours will allow me to determine what type you need.

Quick Learner from Huntersville, NC

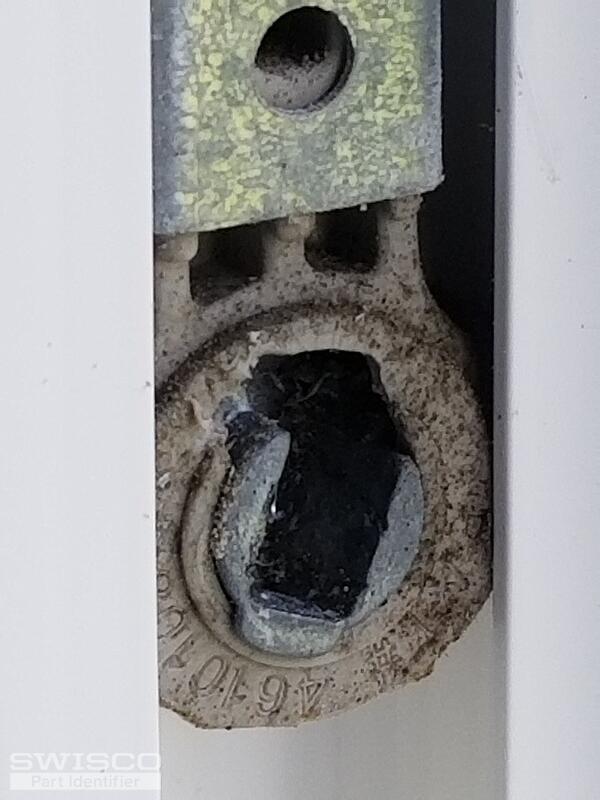

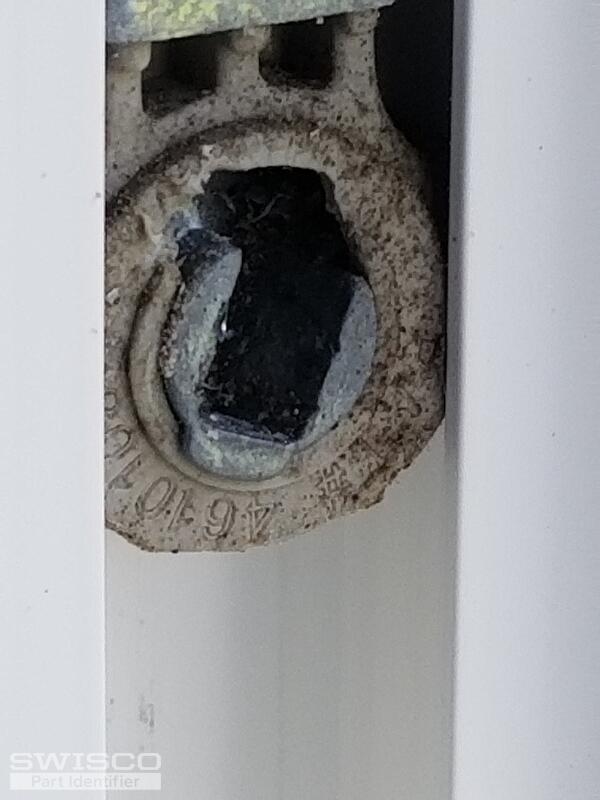

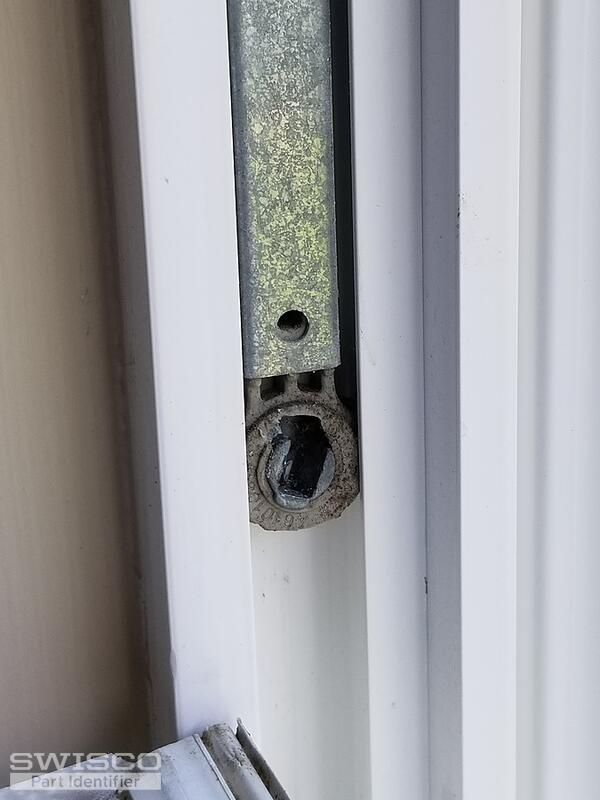

Thank you. Here are photos of the shoe from another window balance. I assume they are the same throughout the house.
3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Yes, as long as the windows are otherwise identical then that is a safe assumption.

These look like the 1-1/4" wide variety, though you may want to remove this shoe from the window and measure it just to be safe. There's a 1" wide variety as well.

Assuming that I'm correct, I will email you a purchase link and price quote that will allow you to add two of these balances to your cart, which is our minimum. You can then checkout as normal.

If you needed to change the quantity, or if your shoe is smaller than 1-1/4", then let me know and we can make the necessary adjustments.

Quick Learner from Huntersville, NC
Thank you! I will need 4 balances please.
Quick Learner from Huntersville, NC
I need to modify my order please. As I already have 3 balances that are just missing the shoes, I would like to order 2 balances and 2 shoes.

Thank you.
Tom
Tom from SWISCO
SWISCO
Expert

Gotcha, thanks for confirming. If you only needed 2, then you can use the purchase link I emailed you yesterday.

Also note that this custom balance will come with the shoes already attached.

Quick Learner from Huntersville, NC
I'm sorry but I seem to have lost access to the purchase link. Can you please re-send it? Also, what part number should I use to order two additional shoes along with the balances?

Thank you.
Tom
Tom from SWISCO
SWISCO
Expert

Sure, I'll email you another link now. If you still don't get it, you should check your spam filter just in case it was flagged. It happens from time to time.

As for the shoe, assuming that you have the 1-1/4" wide version then that would be the 15-195. However you should still measure your original to be sure that size is correct. At this stage it's still just an educated guess on my part.

Quick Learner from Huntersville, NC
I have located the 4th balance, so it appears that I only need new shoes as the old ones have broken and do not fit securely in the balances. However, as the shoe is wider than the channel that the balance fits in, how do I remove the old ones and insert the new? Do they just snap in? I am afraid that I will break them and I cannot find any DIY videos that show how to do this. Thank you.
Tom
Tom from SWISCO
SWISCO
Expert

What you have to do is unscrew the balance at the top (first making sure that the cord is fully retracted, of course), then tilt the balance in to as close to 90 degrees as you can manage. It should tilt easily though on some windows it's a bit of a tight fit.

Once the balance is tilted in to close to 90 degrees, you can just twist it to get the shoe out. The goal is to get the "ears" of the shoe out sideways.
