What size cylinder needed and shoe

Question

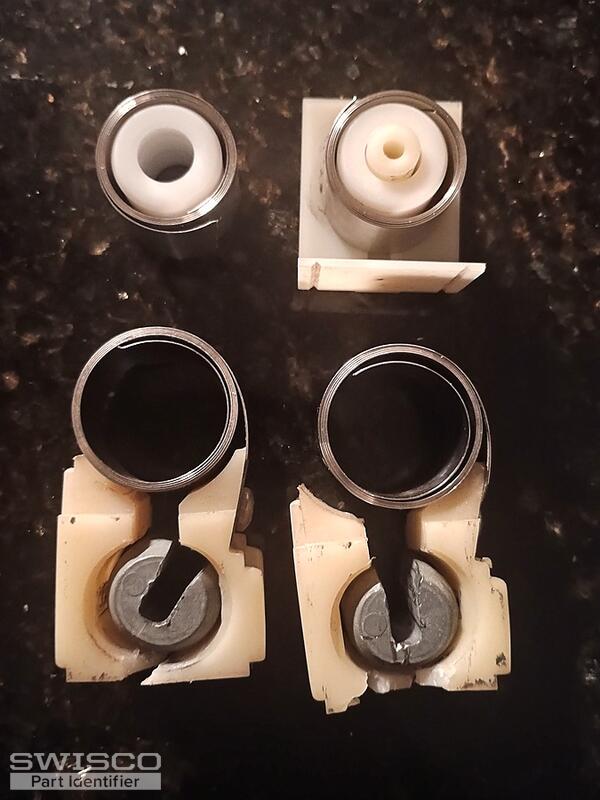

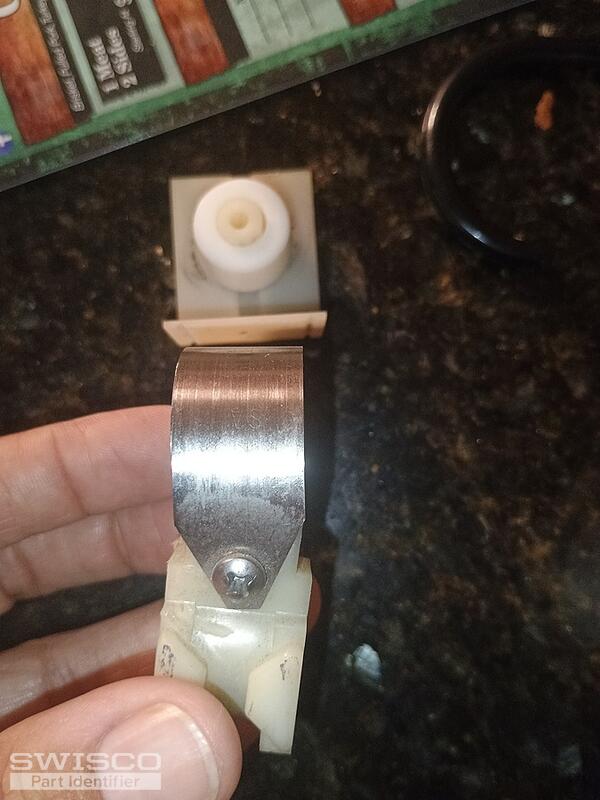

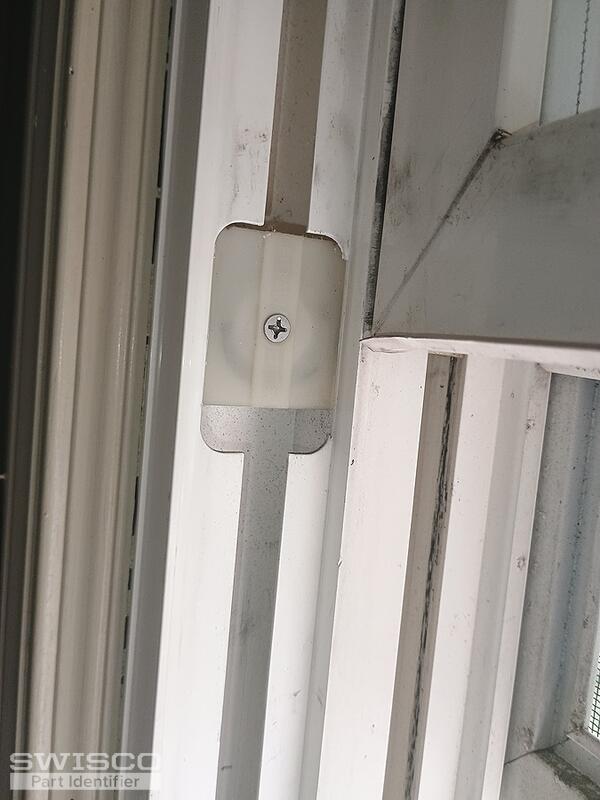

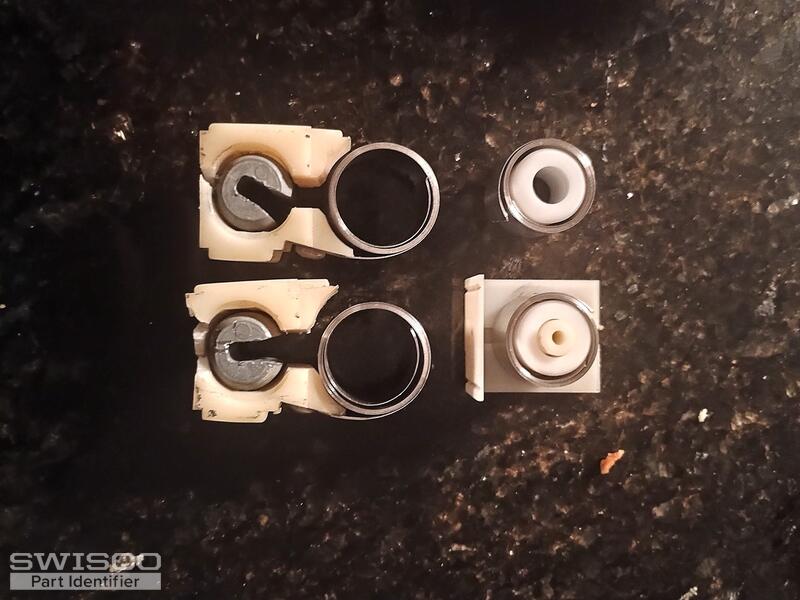

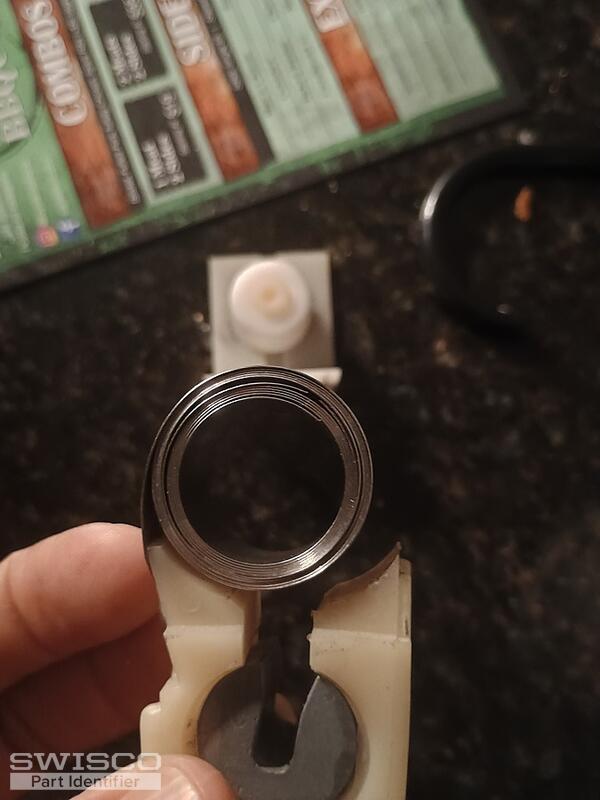

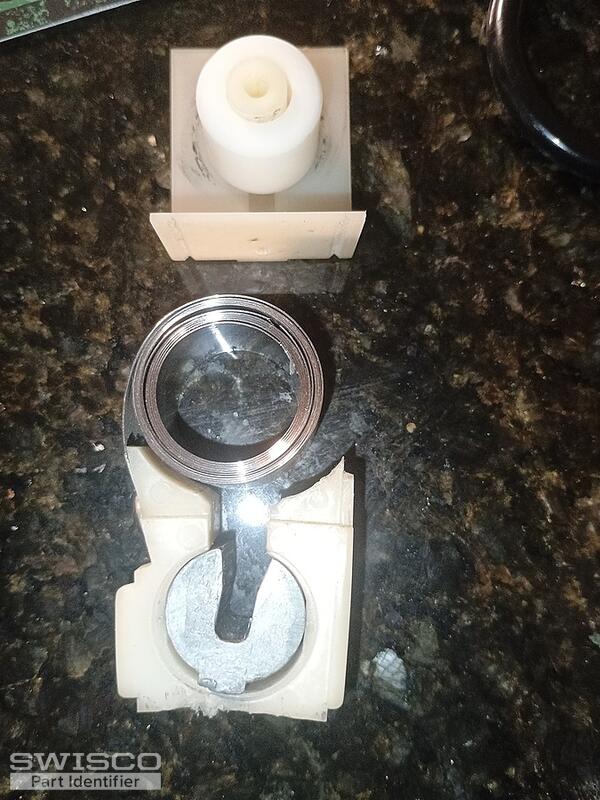

Wondering what size cylinder needed 3/4 I was assuming but I'm wanting to know possibly the weight and what shoe would fit for this window

Casey · Accepted Answer

Hello,

If you have Certainteed windows, we offer the 15-192 pivot shoe that uses the S170 and S171 coil springs, along with the parts listed under the related items section of the 15-192 product page. Please note that some customers have reported that they needed to shave the front of the shoe down to install it in their window jamb.

detail of 15-192

We also offer a conversion video shown below that works for both Certainteed and Simonton windows that use this type of assembly. Take a look and review the full process below to see which option you'd prefer for your repair.

Dimensions for 15-259
