Wheel In Shoe of Channel Balance

Start a new Discussion

Quick Learner from Korea, South

Oct 1, 2018 8:48 am

I'm looking for channel balances.

channel width - 1/2"

length : 27" (but stamped 3050 on metal body)

I can't find same thing on your site.

Please let me know the replacement.

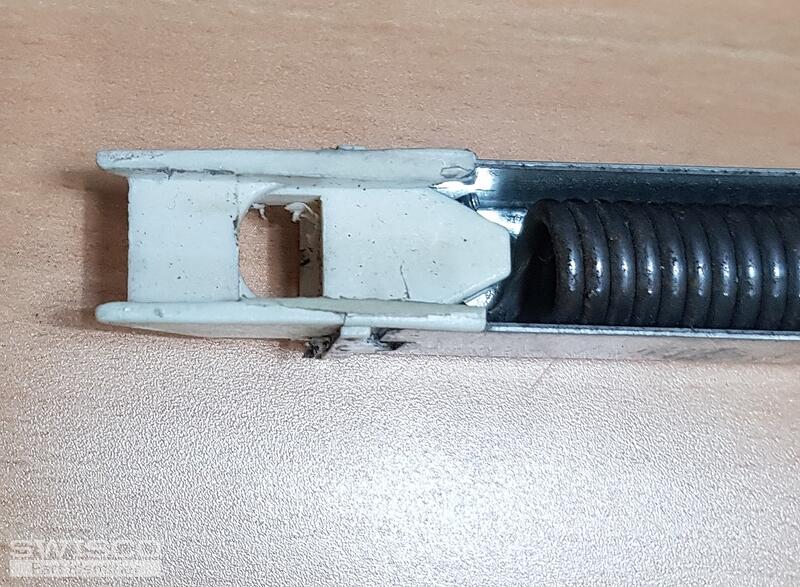

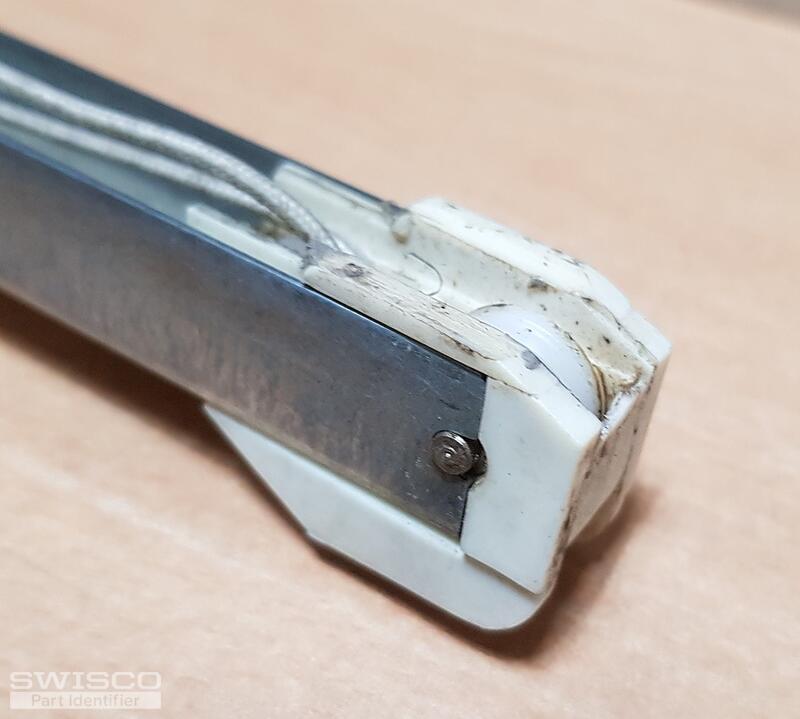

5 user uploaded images

6 Replies

Tom from SWISCO

Oct 9, 2018 10:26 am

We can replace this balance, but it will have to be a special order. Before we begin, can you show me a picture of the hook at the end of the cord? Can you also tell me how many you need?

Once I have this information, I will email you an order link and price quote for the requested hardware.

Quick Learner from Korea, South

Oct 18, 2018 3:56 am

Thank you for your feedback.

Some pictures are added.

Top sash guide on my window side is just same with 18-008 (5/8" TOP SASH GUIDE).

Then, I think that S351 is fitted for my application.

Is it possible to apply for my windows?

I think that custom type channel balance is not need to.

How about ~~?

I need 20 pieces.

Sorry, I'm poor in English.

Thank you very much.

Tom from SWISCO

Oct 19, 2018 3:05 pm

Thanks for your detailed information. This is very clear to me.

The Series 351 balance does not have a pulley in the bottom attachment. Your balance has a pulley, so the Series 351 will not work! You'll need this custom balance.

Before we quote you for this balance, could you confirm the length of the metal bar? It should measure 30-7/8". Let me know if it does not. After that, we can send you a quote for 20 balances. Thanks!

Quick Learner

Oct 21, 2018 6:53 am

Thank you, Tom.

The length of metal bar is 683mm exactly.( about 27 inches)

The weight code is **50. --> custom type 2650

Order list
2650(custom type) 20 pieces.
18-008 10 ea.
S351 2650 2 pieces.(for test)

I will wait your quote.

*** Later, if I will need more this balances, how can I order this custum type balances?

Thank you very much Tom.

Tom from SWISCO

Oct 22, 2018 1:08 pm

Thank you! I will email you a special order link and price quote for 20 of those 2650 balances. This link will allow you to add it to your cart as if it were any normal product. From there, you can add the other standard parts you need to your cart so you can check out all at once.
