Wheel assembly for ASTR BEC OMCO sliding glass door

A quick learner from Altavista Va says:
ASTR BEC OMCO written on top in circular shape, wheel is 1 7/16 inches in diameter,, 5/16 inch wide, interior case is 1 1/4x 7/16x 2 5/8, the exterior case is 2 5/8x1 3/8x11/16. Believe door manufactured by West Window in Martisville, Va in mid 1990s.

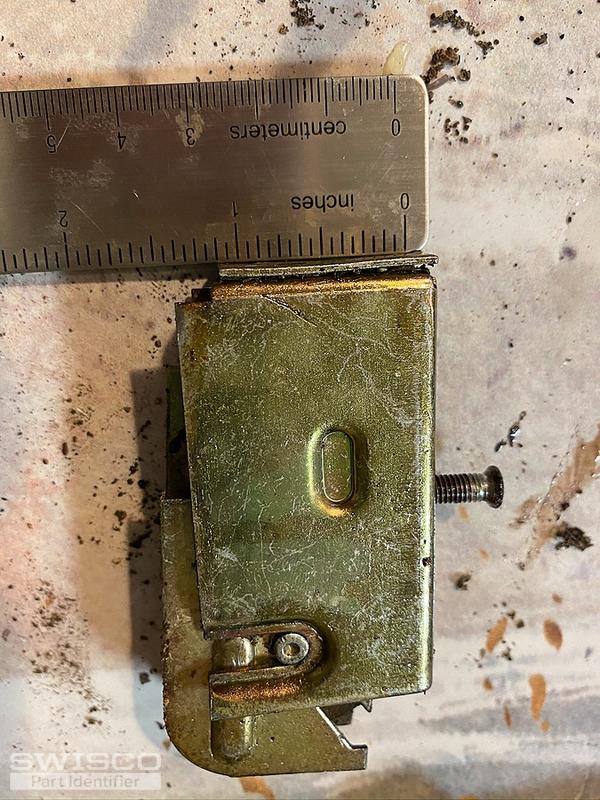

Thumbnail of the uploaded file named 95AC3B9D-1FA9-4F21-8A5F-73D5796F99CE.jpeg

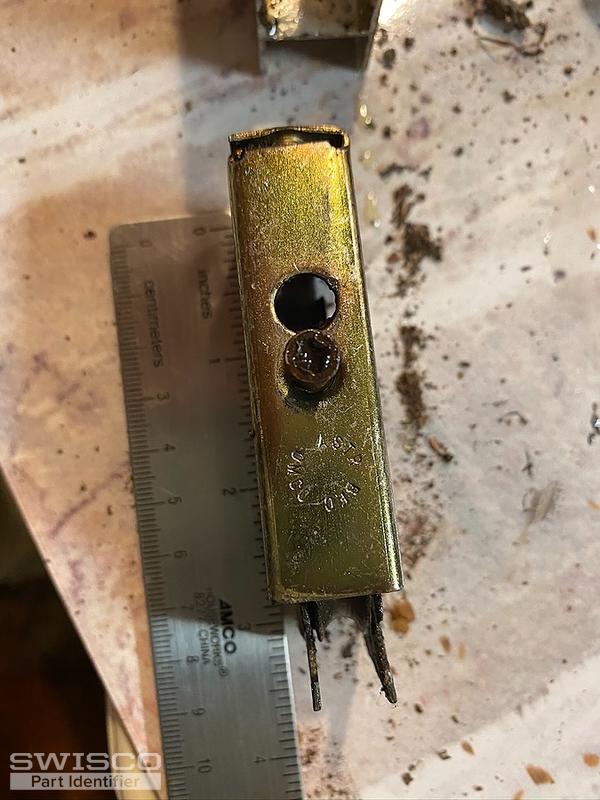

Thumbnail of the uploaded file named 74940967-4C76-400B-9A6F-D8C2B8EF200B.jpeg

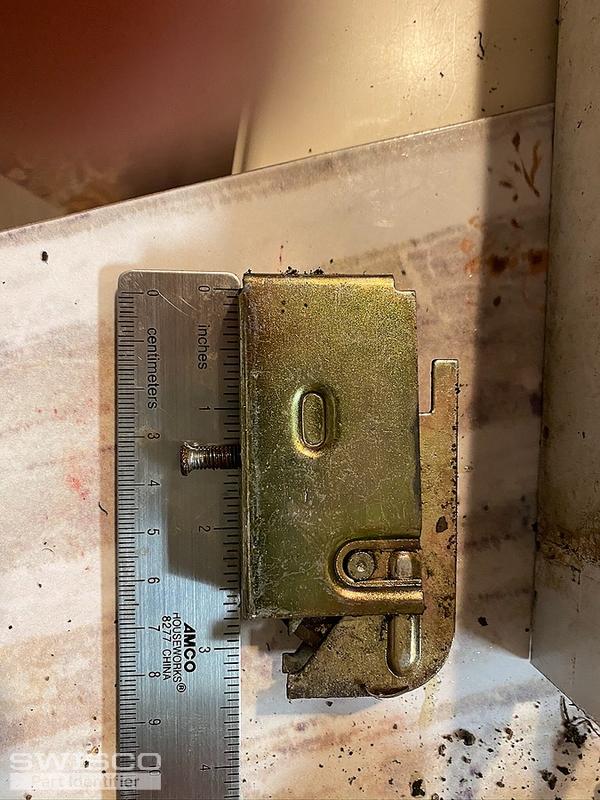

Thumbnail of the uploaded file named 0872A283-C381-4A5E-BDAD-6163073D6A64.jpeg

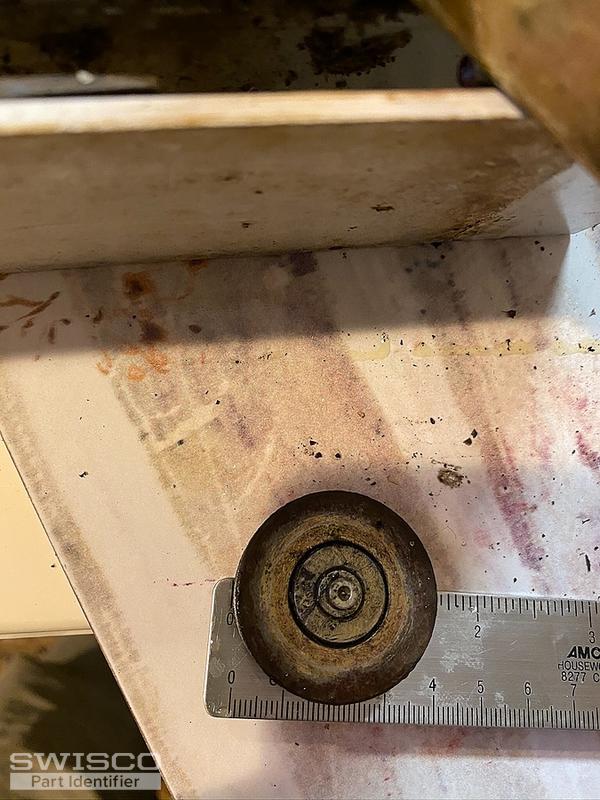

Thumbnail of the uploaded file named 55173372-70FF-42B0-A9BB-B42437872857.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello, thanks for posting! We have several rollers that match the design of your assembly, but only one that comes close to your dimensions. I say "come close" because there are some slight differences that you'll have to double check.

The product in question is our 81-278. The outer housing is 1-3/8", like you described, but the outer housing width is 3/4", not 11/16". The roller is also 1-1/2" instead of 1-7/16".

These three dimensions are the most important. If they match, then the 81-278 will probably work well in your door. Please double check your measurements and let me know how they compare after another pass.
