Which Part i need it. My part number is 30895A

Home Owner from New Jersey

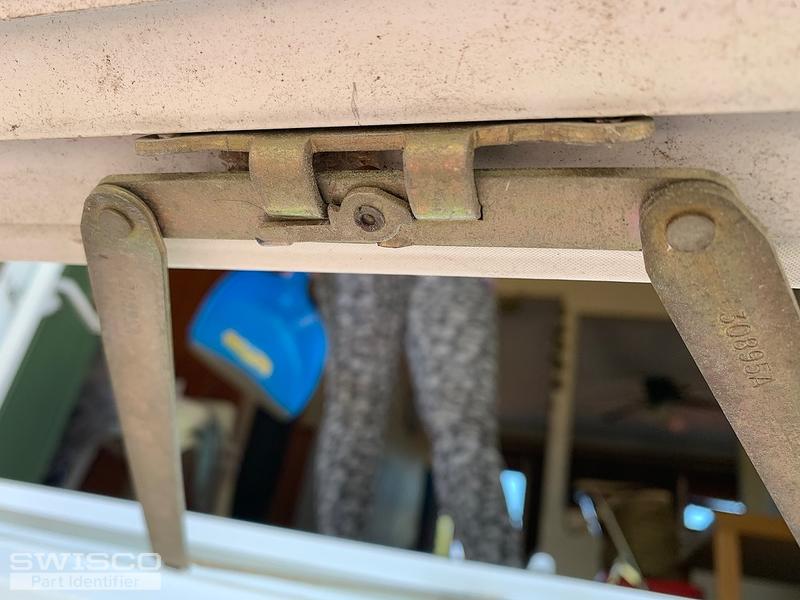

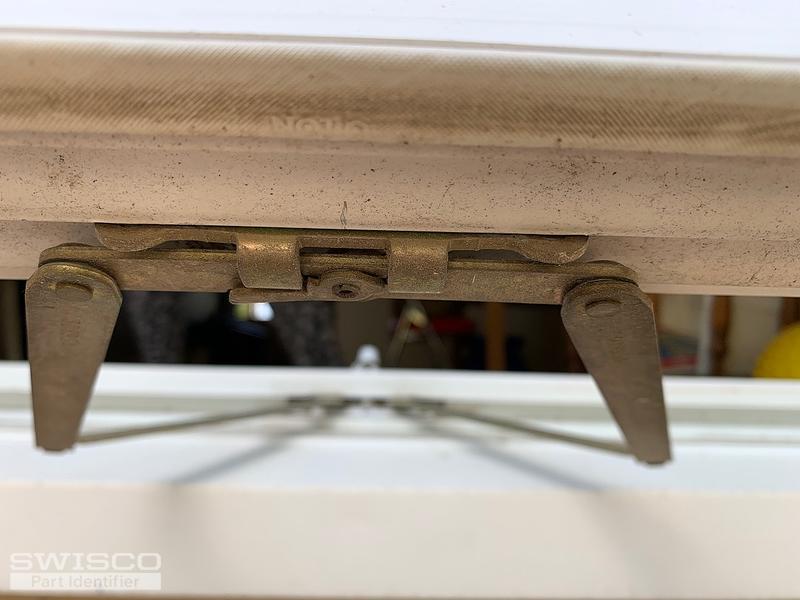

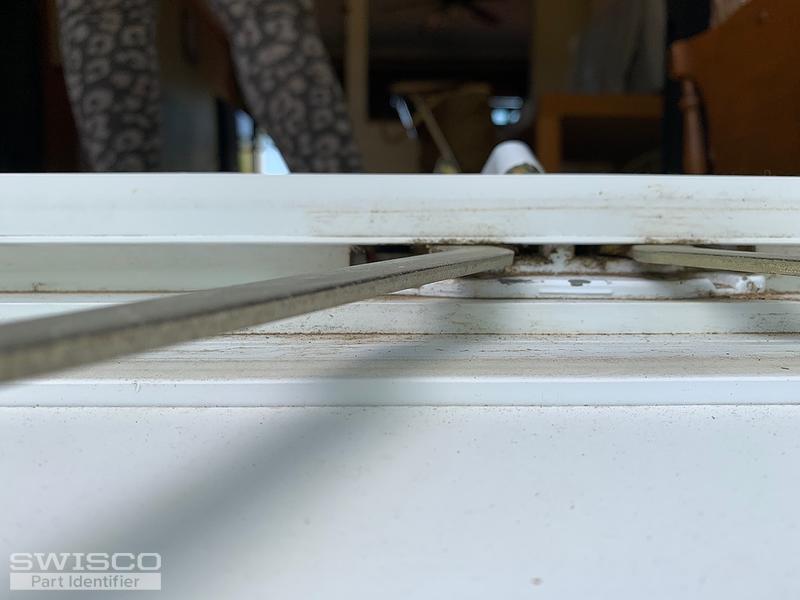

I am enclosed my windows pictures. Can you please tell me which parts and handle do i need it.
3 user uploaded images
16 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Looks like your worm gear is stripped out, which means you'll need an all new operator. We can definitely help, but before I recommend anything I'll need to see a picture of the complete operator out of the window. That will allow us to match it up to something in our catalog.

Home Owner from New Jersey
Hi Tom,

Thanks for getting back to me. I have bottom part number. Will that helps? part# 30895A

Is it easy to remove operator out of the window?

Thanks
Kay
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Kay. That number is associated with a few different operators, but they're all generally the same style. See our 39-083 and 39-140 for two examples. Assuming this is the same style you have, all you'd have to do now is match up what size you need.

Let me know if neither matches what you have. There are others.

Home Owner from New Jersey
Thanks for your help Tom. I will check.

Have a great weekend!!

Best Regards
Kay
Tom
Tom from SWISCO
SWISCO
Expert

Thank you, and you as well!

Home Owner from New Jersey
Hi Tom,

I measured my arm operator. It's 21/12.This easy to replace.?i I am sending some pictures.. are you shipping free?


Thanks
Kay
3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! If your old operator is 21-1/2" then I think our 39-083 is your best bet. These are relatively easy to replace in my experience, but I also work with these every day so sometimes it's hard for me to gauge that kind of thing. You basically just unhook the arms from the sash and then unscrew the base of the operator from the sill. It should just pull right out after that.

Home Owner from New Jersey
Thanks Tom. Is shipping is free from SWISCO?

Thanks
Kay
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Kay. Shipping is not free, unfortunately. All delivery costs are calculated for you automatically during the checkout process, but before the order is finalized in case you need to make any changes.

Home Owner from New Jersey
Hi Tom,

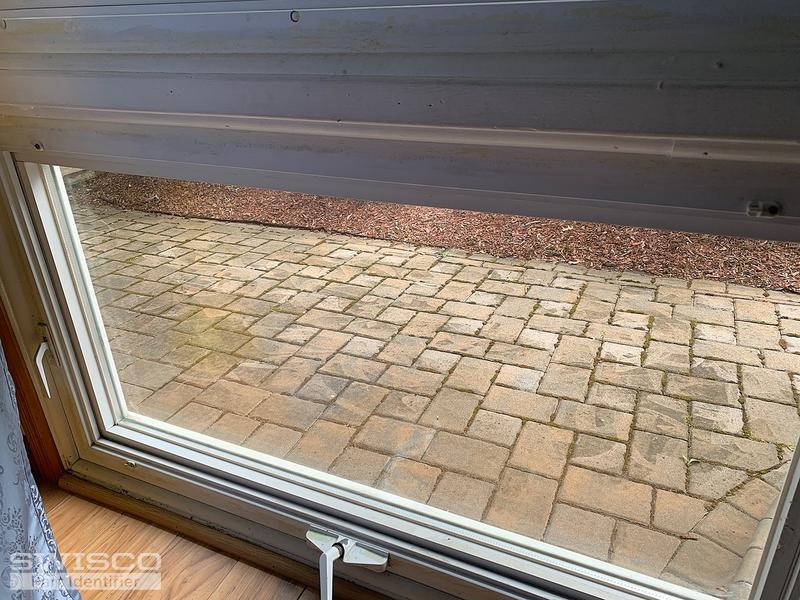

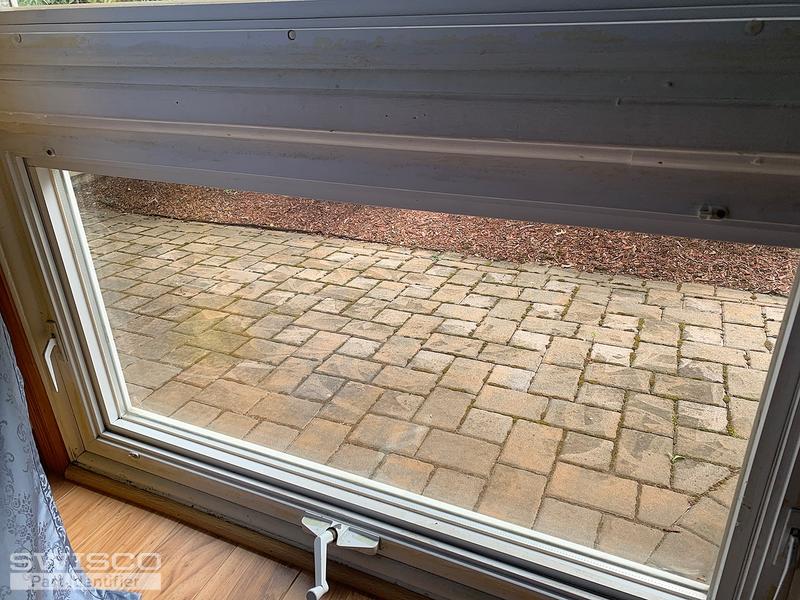

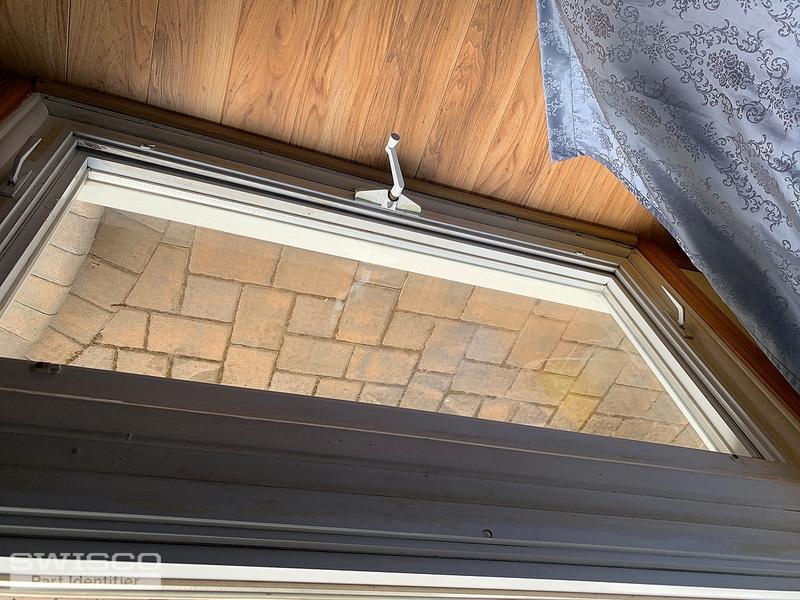

One more question. I need screen for this window. Do you need measurements or I am sending you pictures. So I can orders both together.
3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

We actually do not sell screens, unfortunately. I would recommend contacting a local hardware store for that.

Home Owner from New Jersey

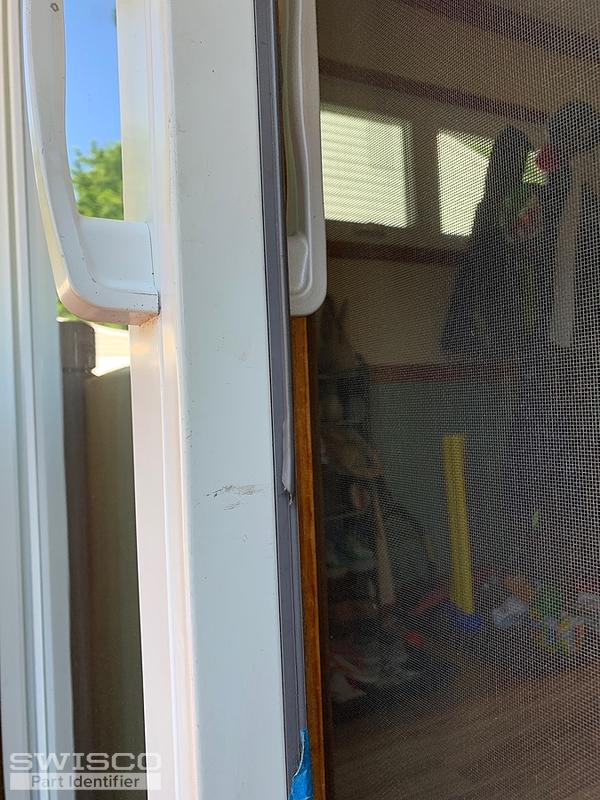

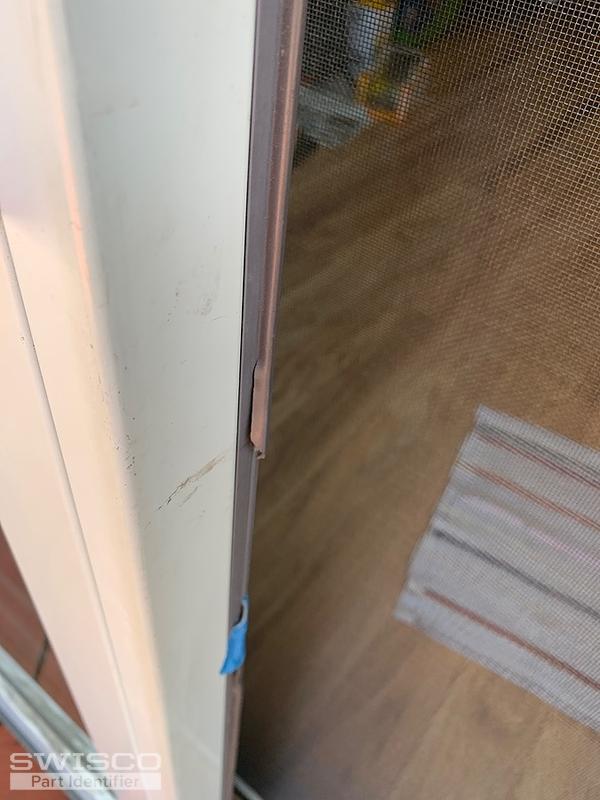

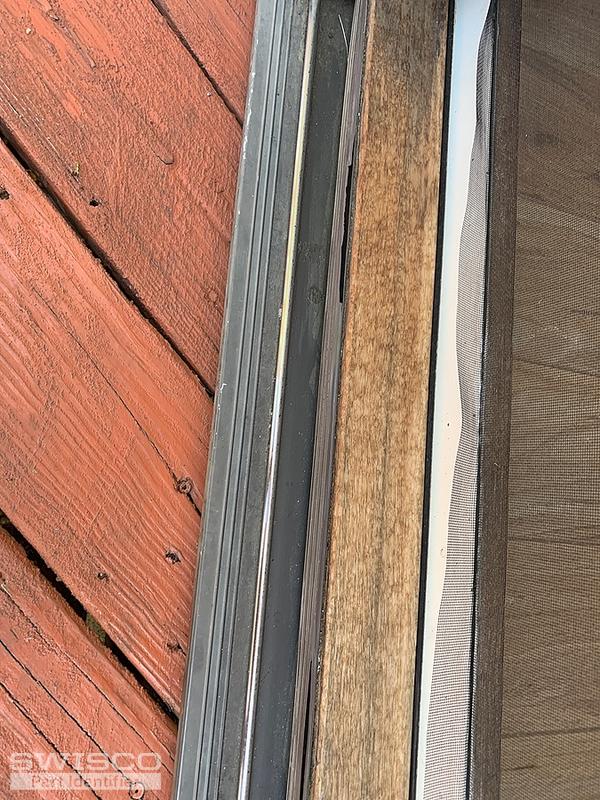

Thanks Tom. Do you have weather stripping for Pella door.
4 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

We may have this, but I can't tell what you have from these photo. I will need you to remove a sample and show the end profile. The video below will go into more detail as to what I mean.

Home Owner from New Jersey
Thanks Tom.

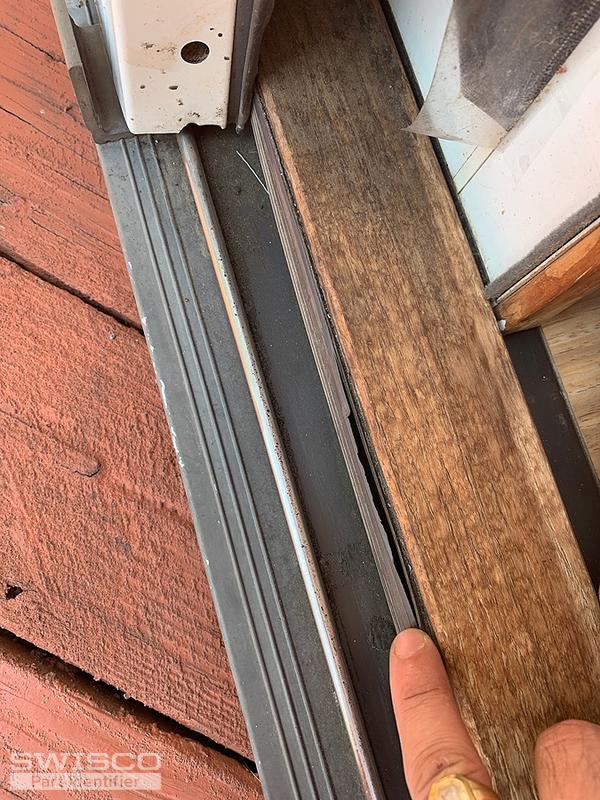

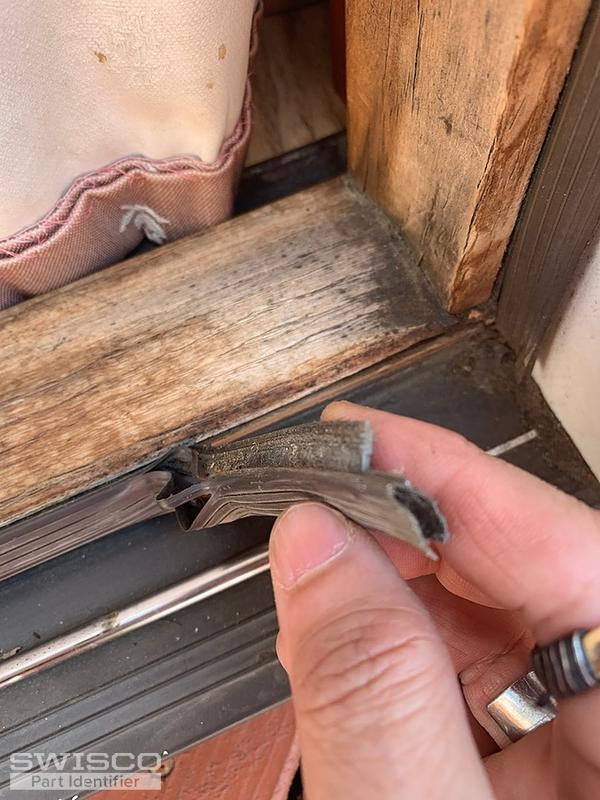

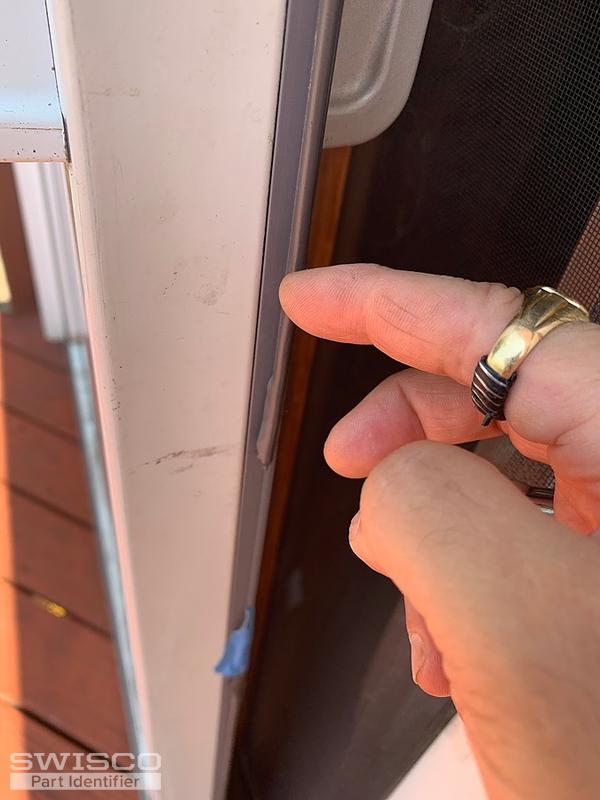

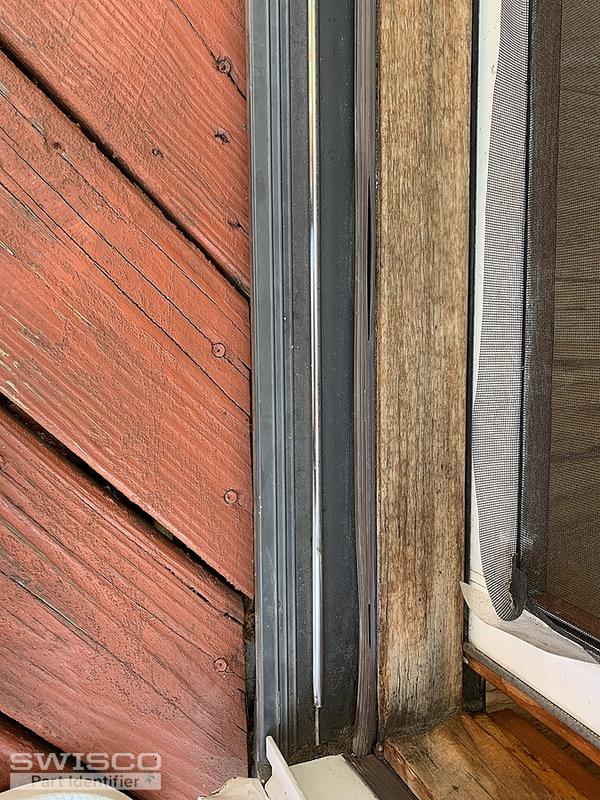

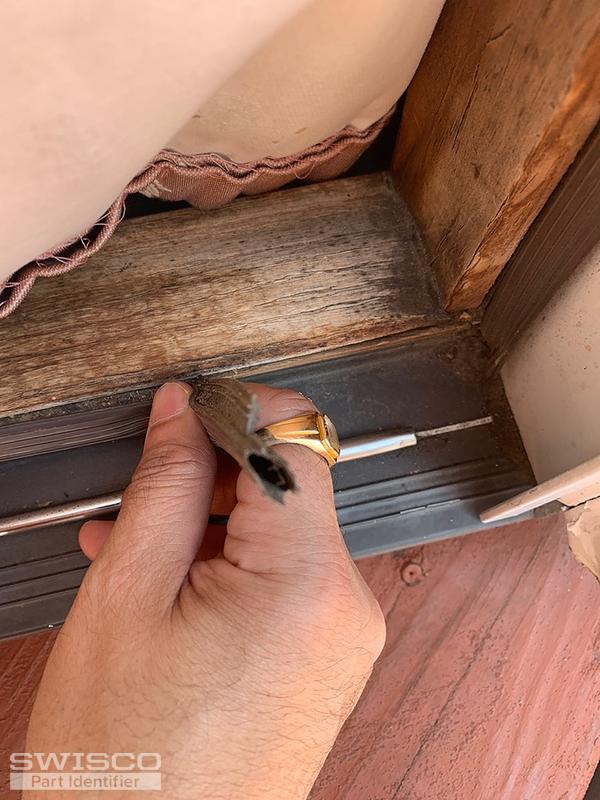

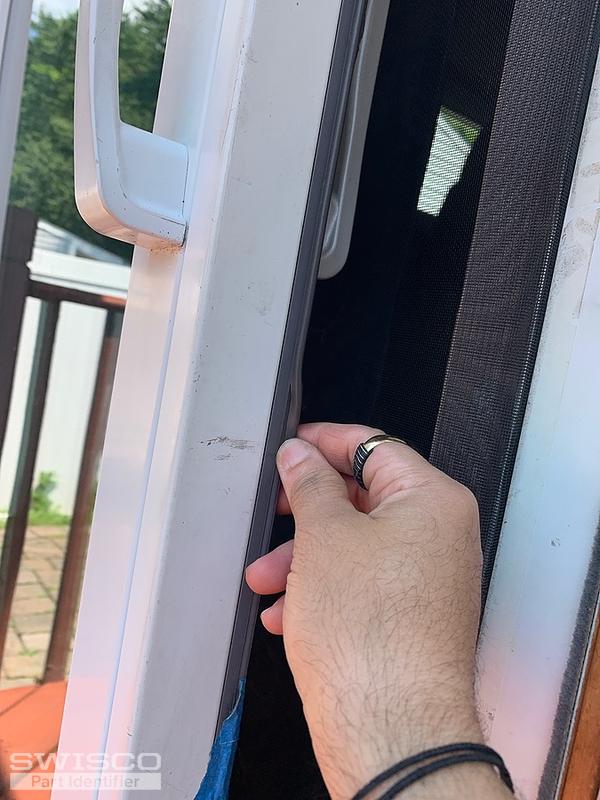

I am sending you again pictures. Pell door siding.

Any help would be greatly appreciated!!

Thanks
Ketan
5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! Take a look at the 58-055 and 58-170B to see if these could work as a replacement on your door.
