Which channel balance to order?

Home Owner from San Diego

Jul 1, 2025 11:18 pm

The broken window channel balance is about 27 and 1/4 in Long, not including the plastic pieces on the end. Swisco offers a 27 in A, B & C. Which one should I order?

2 user uploaded images

4 Replies

Emily from SWISCO

Jul 7, 2025 12:48 pm

Hello there!

Thank you for reaching out to us. I'm afraid we won't be able to help if the metal channel is 27-1/4" long. Can you double-check that for us, just to be safe? We would also like to see an image of the inside of the balance’s metal channel, where the innerspring connects to the pulley mechanism; this connection is located in the middle of the channel.

Home Owner from San Diego

Sep 8, 2025 11:55 pm

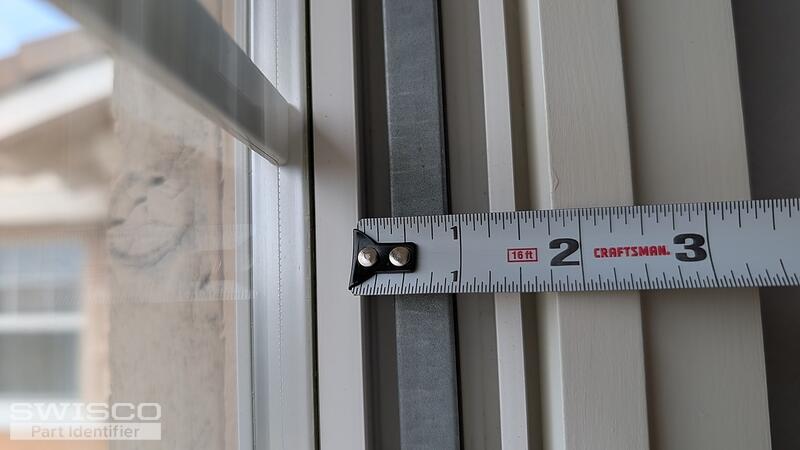

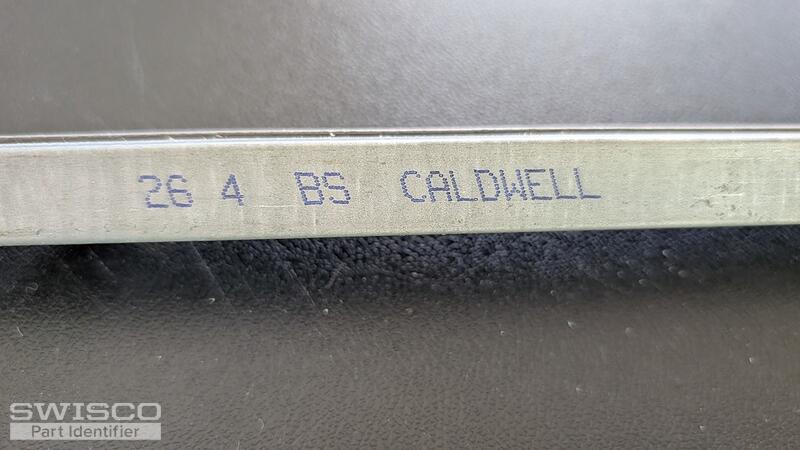

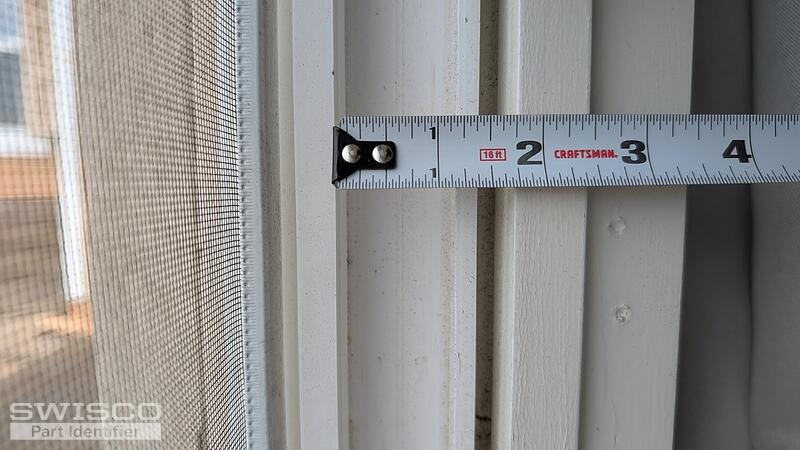

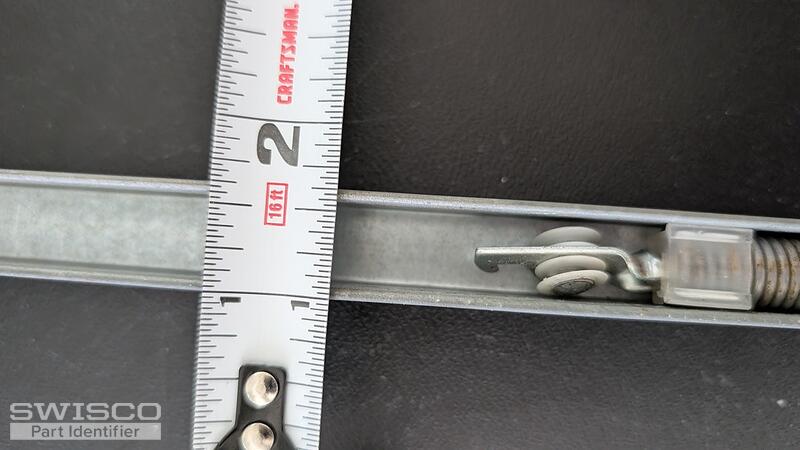

I hope these photos help. My handyman says he can install the new channel balance if I order the correct part. Your help is much appreciated!
Angela

5 user uploaded images

Emily from SWISCO

Sep 9, 2025 7:45 am

Our S380-27 or S385-27 with the 2640 stamp would be our best options. The difference between them is the depth of the bottom shoe, so you'll have to measure as shown below. However, note that the metal channel should be 27" long.

Comparison of the S378, S380 and S385 balance shoes.
