Which part will replace my 32 6 GV spring?

Quick Learner from Seattle
Do you know which one I will need to order based on the attached pictures? Thanks for your help!
2 user uploaded images
10 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. Looks like you need to replace a channel balance. We can help you do this, but we need a picture of the nylon fitting on the bottom of the balance. If you could also tell us the length of the metal channel, not including the nylon fittings at either end, that would be of great help as well. Many thanks.

Quick Learner from Seattle
Attached is the bottom. I believe the metal part is either 30 or 32 inches. Thank you!
Casey
Casey from SWISCO
SWISCO
Expert

Thank you for the photo. For the metal length measurement, we need you to be as precise as possible. Guessing could only risk ordering the incorrect part. When measuring the length of the channel, you want to measure the metal part only, as Bob had mentioned, excluding the nylon fittings on both ends. Once you have done that, please get back to us with your answer. Thank you.

Casey
Casey from SWISCO
SWISCO
Expert

Unfortunately, we can't make any definitive recommendations without seeing the part completely removed from the window. We can not get a good look of the bottom balance shoe while it is installed in the window.

With you also mentioning a 30" balance that is not photoed here, we need to have a look at the stamped number marked on that balance.

The nylon fittings on both ends of the balance determine which of our Series balance to recommend. The stamping on the balance tells us which stamp option to recommend. So it is imperative we see additional images showing the nylon fitting and stamping. I am also going to include a video and a detailed guide below that shows how a non-tilt balance is replaced. Perhaps it may offer some help to you when removing them from your window.

Quick Learner from Seattle
Can you tell me what part I would need if 30 inches and what part I need if 32 inches? I can't take it out without someone's help, so I plan on ordering both sizes and donating the part that does not fit.
Quick Learner from Seattle

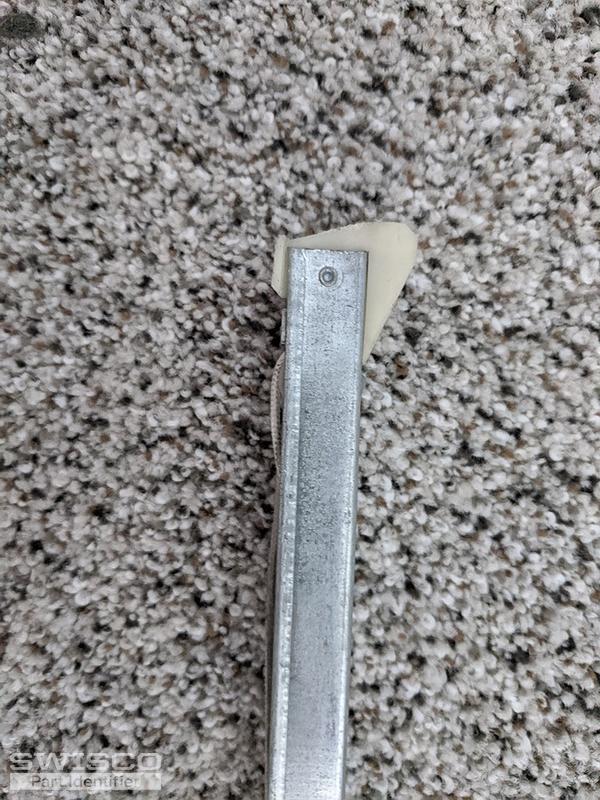

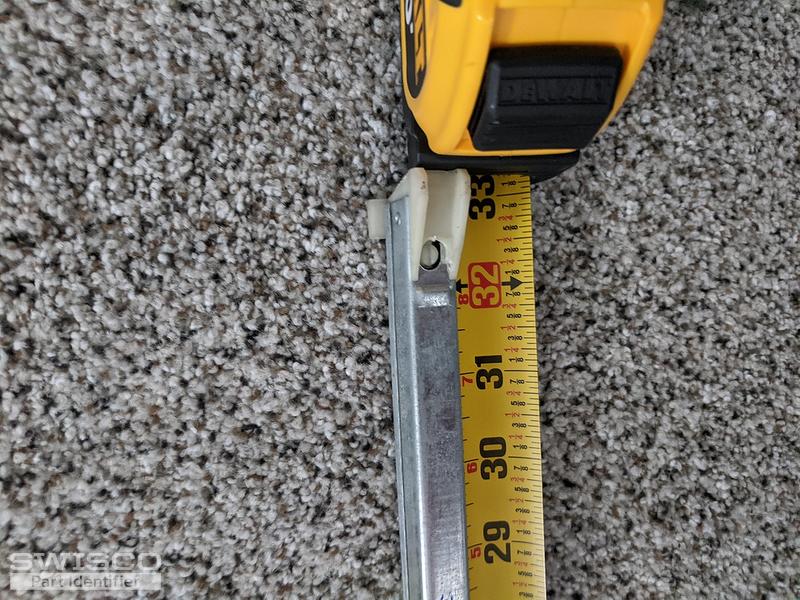

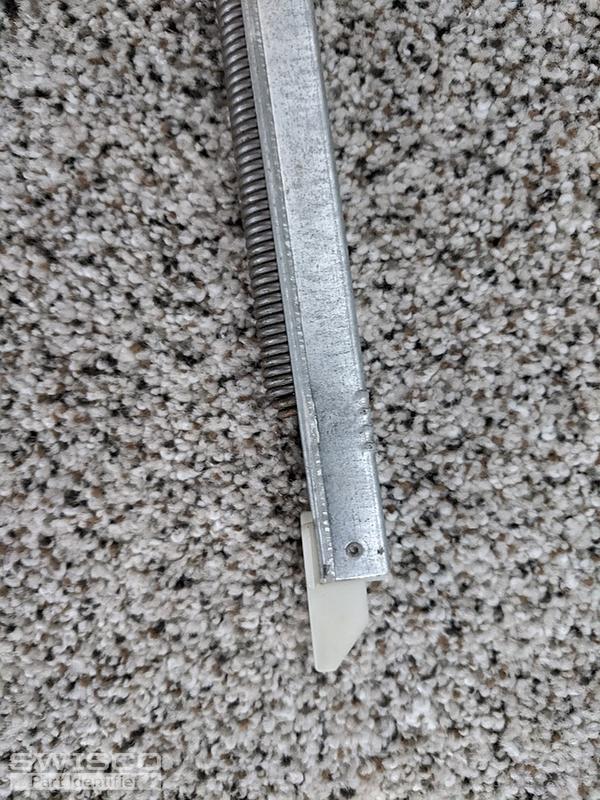

The metal part appears to be 33 inches to the end. I included a photo with the attachment. Hopefully this helps. Thank you!
4 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Hi there! Manuela is out today but I think I can help with this one. Based on your combination of nylon fittings, I believe that you have either our S380-33 or S385-33. The only difference between these is the depth of the bottom shoe, so you'll need to measure that and refer to our dimensions to select the best product.

Tom
Tom from SWISCO
SWISCO
Expert

Great! Based on your stamp, I recommend our 3260 option. Please let me know if you had any other questions.

Quick Learner from Seattle
Thank you! I measured, and I need the 33" SERIES 380 CHANNEL BALANCE.

Given the markings on the metal, which stamp option do I choose?
