Which replacement balances do I need?

Quick Learner from San Carlos, CA
Jan 31, 2023 1:34 pm

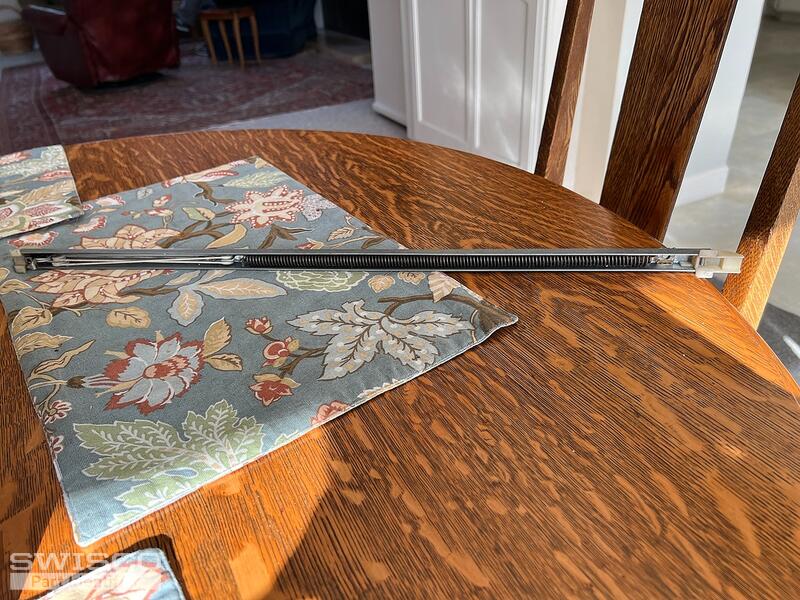

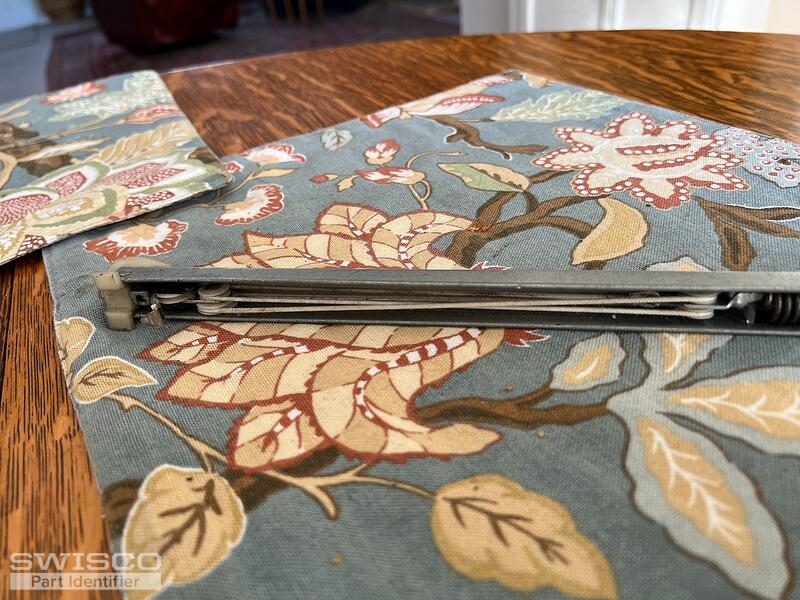

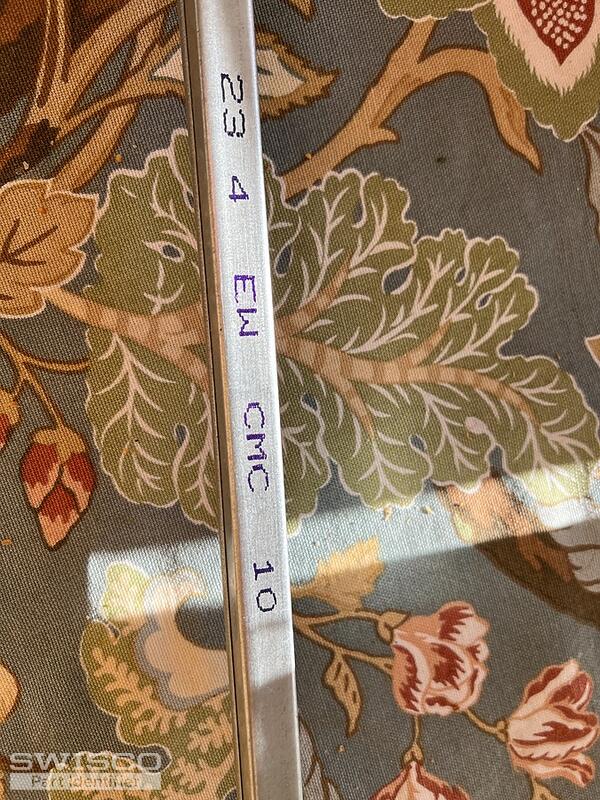

Stamp 23 4 EW CMC 10
Channel length 24"

Thank you!
2D5F9110-A1D6-4EBA-AAC5-9BF16AD8220C E6BA12C4-854B-4970-825D-B8BB2CE720EB 24217282-AC62-467D-989D-A4AC3849E1A5
3 user uploaded images
1 Replies
Casey
Casey from SWISCO
Jan 31, 2023 3:40 pm
SWISCO
EXPERT

With this combination of attachments, you could have either the S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2340 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
