Which window sash channel balance should I order?

Home Owner from SF Bay Area, California

Jul 14, 2011 9:34 pm

I need a pair of replacement window channel balances--this will probably be a custom order

Here is the basic info:

Length: 28"
Width: 1/2"
Label: 27 4 HP Caldwell
Window type: Non-tilt
Only the bottom sash opens

Attached are pictures of its top and shoe; the shoe has wings.

User submitted phots of channel balance top and bottom attachments.

6 Replies

Home Owner from SF Bay Area, California

Jul 15, 2011 1:31 pm

Thanks for your response Paul. Attached are additional photos. The Series 390 does not appear to have wings on the shoe, where as the ones I am seeking to replace do. Does that matter?

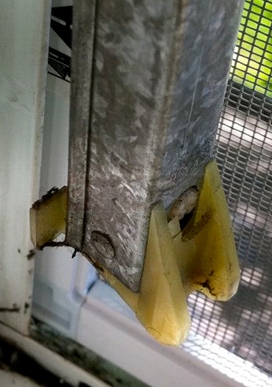

User submitted photo for bottom attachment.

Paul from SWISCO

Jul 15, 2011 1:34 pm

Thank you for posting.

The photos were taken a bit close (particularly for the top guide), but it seems very close to the Series 390 Channel Balance.

The "27 4" stamp translates to 2740.

Paul from SWISCO

Jul 18, 2011 11:42 am

Does the top shoe have wings?

Home Owner from SF Bay Area, California

Jul 18, 2011 11:49 am

The top shoe does NOT have wings. Thanks.

Paul from SWISCO

Jul 19, 2011 3:26 pm

Although we do not offer this set as as a specific series online, we can assemble the replacement balances for you.

I'll go ahead and email you a link and price quote that you can use to place an order on our website.

Please let us know if you have any questions.
