Why won't this lock fit my keeper?

A quick learner from Tennessee says:

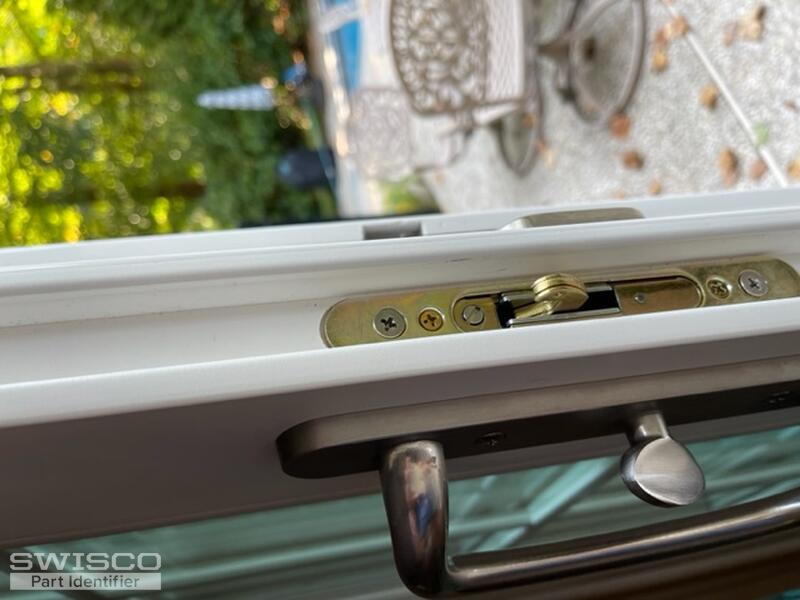

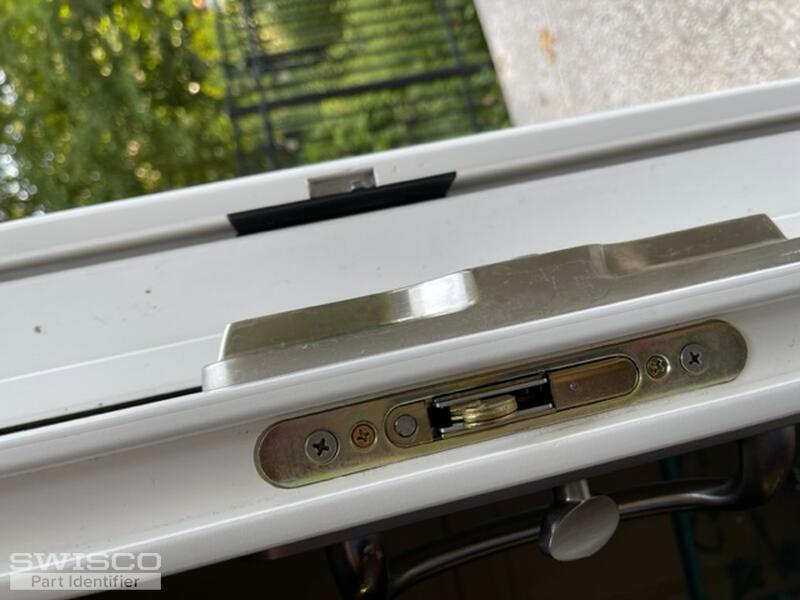

I bought the Swisco 82-226 mortise lock, and it fits my door and works fine.

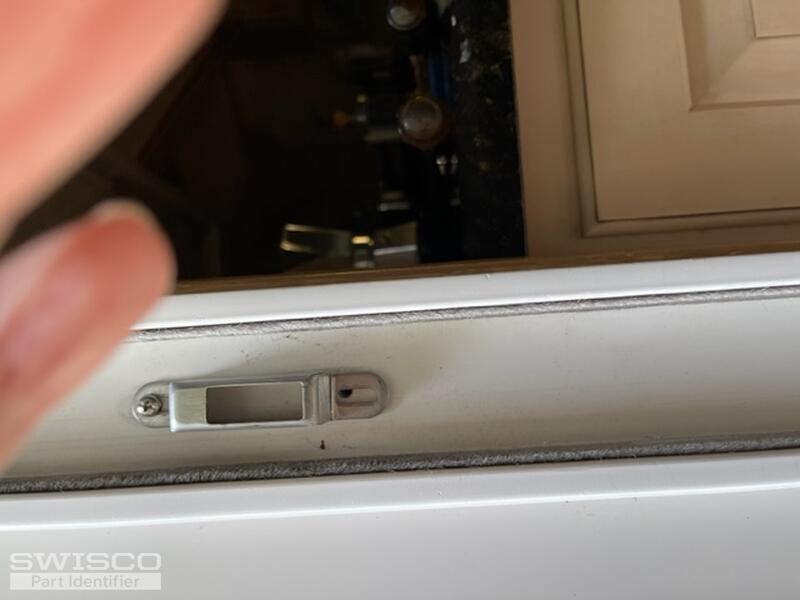

But the hook doesn't reach out and hold my strike like the old lock did.

Oh, and the hole-to-hole spacing is about 3-3/4 inches.  What do I need?

Thumbnail of the uploaded file named IMG_1658.jpg
Thumbnail of the uploaded file named IMG_1657.jpg
Thumbnail of the uploaded file named IMG_1659 (1).jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for writing in! This is something we find to be a common occurrence. You'll likely need to adjust the mortise.

There's a little slotted screw just above the hook that you'll need to locate. When that screw is turned, the hook extends out or retracts back into the door. That should fix the problem you're experiencing.

I hope this helps!

Please feel free to reach out with any other questions you may have.
