Wi dow balance for 2 windows

Question

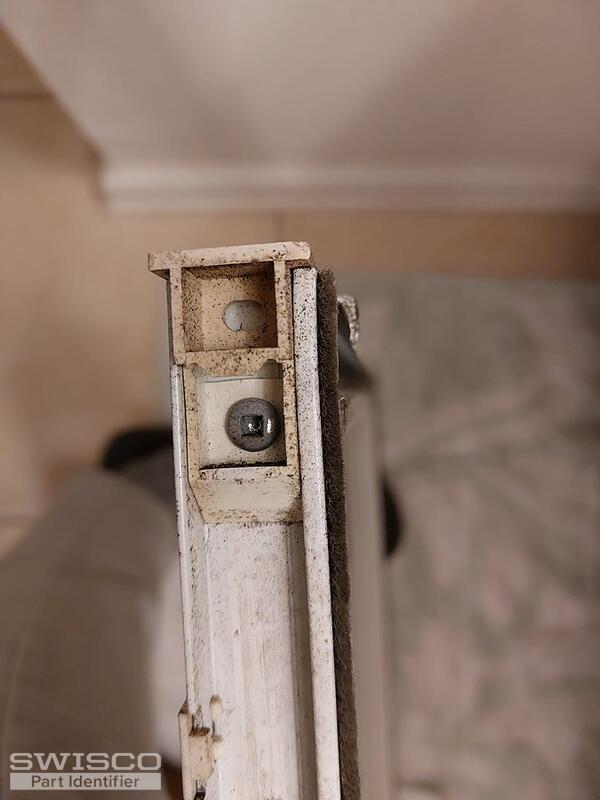

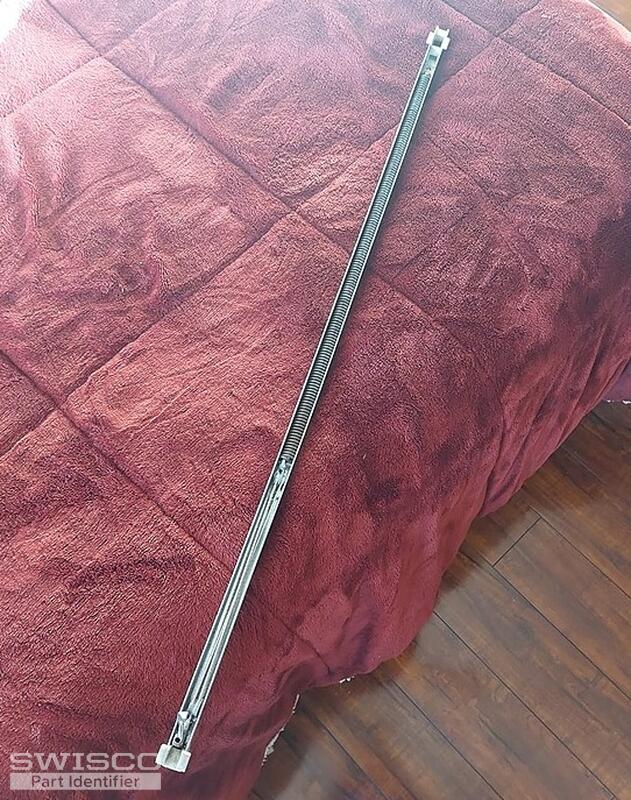

One window weighs 28 lbs. The number in it is 29- 4 da2 cmc7
The other one weighs 30 lbs. The number on it is 29-9 ca2 cmc4.
I need a set of each and sets of the sash top. Could you please tell me what to get? Thank you.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2940 spring strength options to support your 28-pound sash and 2950 to support your 30-pound sash.

It sounds like you may also be looking for top sash guides but we would need to see photos of an undamaged part removed from one of your windows, along with written-out dimensions, to compare to our inventory. Thank you!

Comparison of the S378, S380 and S385 balance shoes.
