Widow Balancers

A quick learner from Wantagh NY says:

Looking to purchase these type of balancers. Not sure about making correct selection from website.

These are non tilt windows

forgot to add 1/2 channel

Measures 23 in and 17 in

Regards

John

Thumbnail of the uploaded file named D483D989-C657-471F-8054-59FAACA37DEB.jpeg
Thumbnail of the uploaded file named 3445F59C-76FD-4A79-82D0-9C69E0C102A3.jpeg
Thumbnail of the uploaded file named 4271AA24-C333-4FB3-86BF-FE27DBB7E66F.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need to locate the stamps on both metal channels to choose the corresponding spring strength options for your replacement balances. Thank you!



1
A quick learner from Wantagh NY says:
Stamps on channels as follows

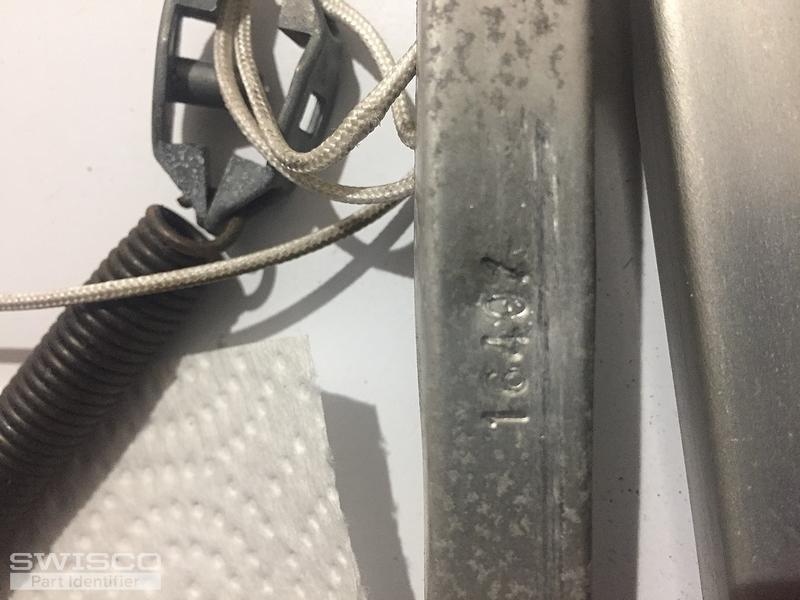

On the 17 in stamp reads 1640

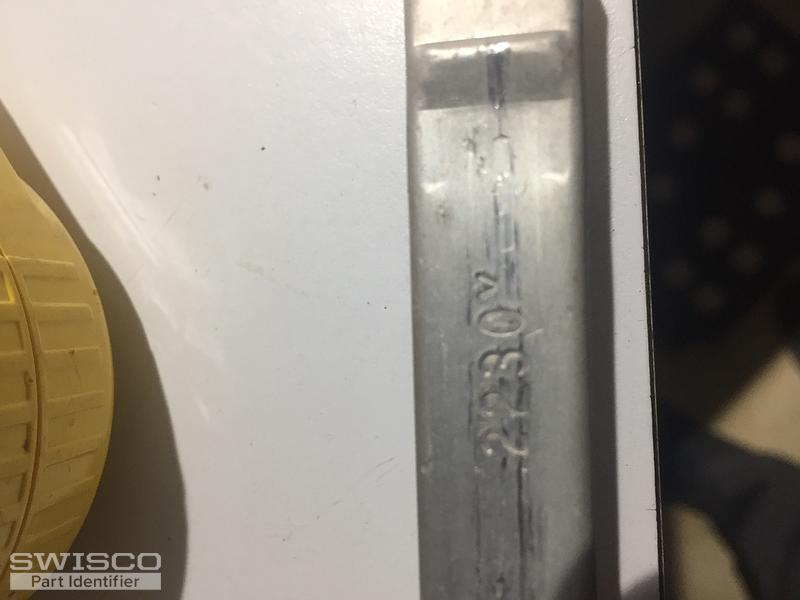

On the 23 in stamp reads 2230

I don't know which option to use

Thank you
Thumbnail of the uploaded file named 9150EA54-C415-45A1-8C0A-03793254FDB6.jpeg
Thumbnail of the uploaded file named E895CFD0-E7D0-4124-A997-2B7F1D754CA3.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Once you choose between the S351 and S390 by following the diagram I sent you, you'll use a 1640 strength option for your 17" balance and a 2230 strength option for the 23" balance.

A quick learner from Wantagh NY says:
I have placed the order for the channel balances, thank you for all your assistance.

John C.
