15" Series 385 Channel Balance,
1420 for Option
Will This Fit? Please verify. Thank you. See attached photos.
Will This Fit?
Home Owner from California
Jul 22, 2023 1:20 pm
3 user uploaded images
3 Replies
Home Owner from California
Jul 22, 2023 10:35 pm
27" Series 385 Channel Balance
2630 for Option
Will This Fit? Please verify. Thank you. See attached photos.
2630 for Option
Will This Fit? Please verify. Thank you. See attached photos.

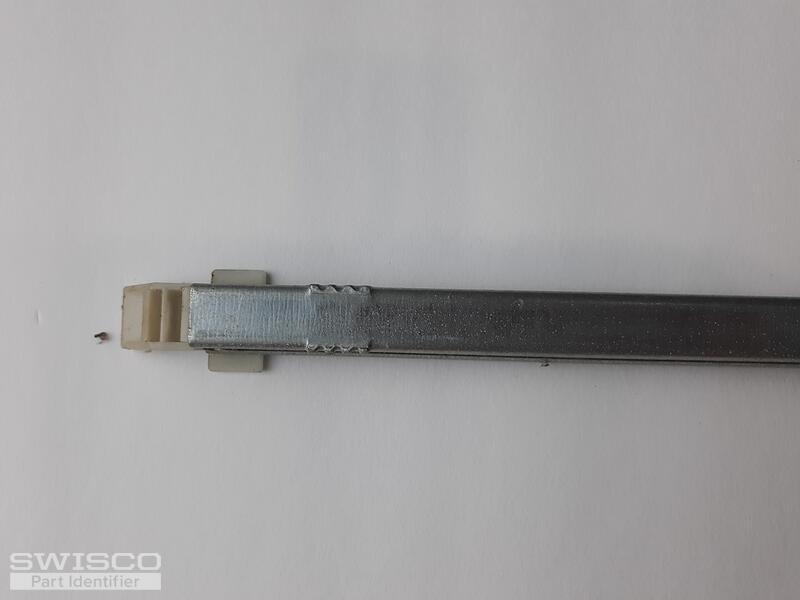

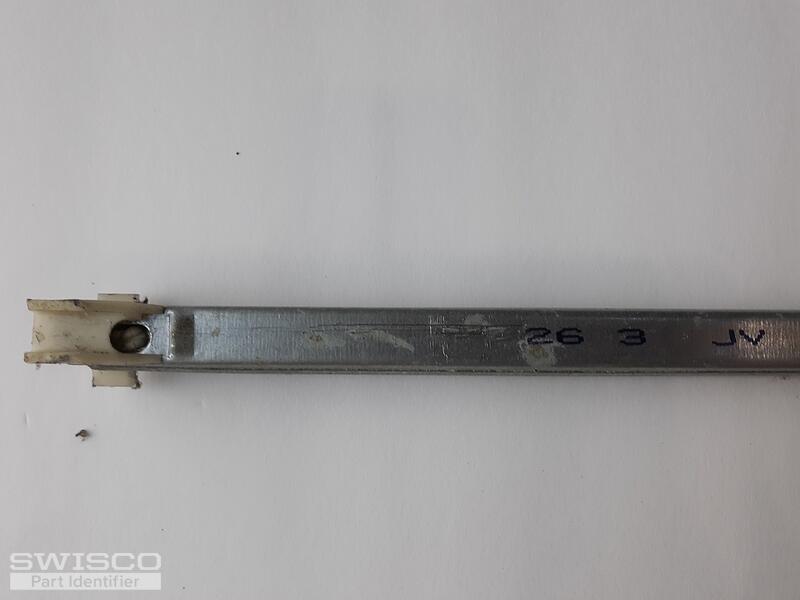

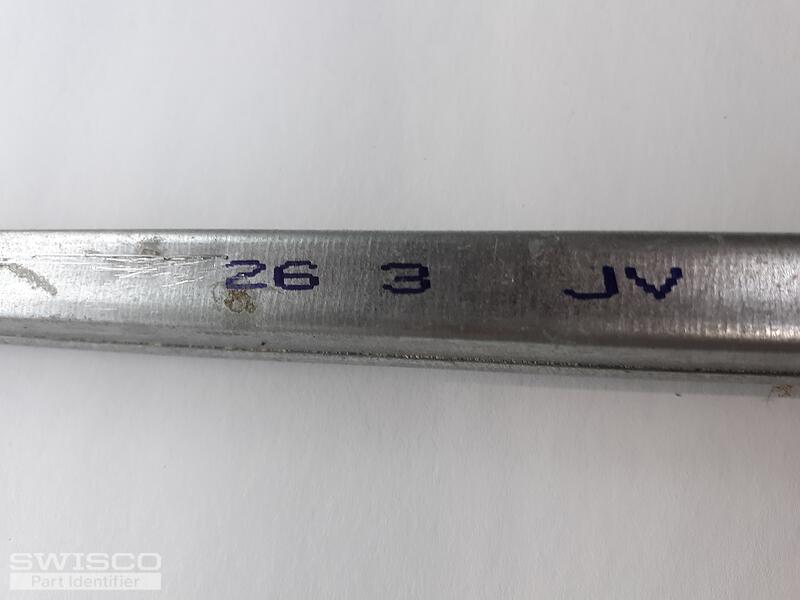

3 user uploaded images
Bob from SWISCO
Jul 23, 2023 1:09 am
Thanks for posting. You're on the right track for both balances. In either case, the only other possibility is the Series 380. The lone difference between the Series 385 and Series 380 is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old hardware to see what matches best.
Comparison of the S380 and S385 balance shoes.
Therefore, you'll need either the S380-15 or S385-15, with a stamp option of 1420; and then either the S380-27 or S385-27, with a 2630 option. Let me know if you have any other questions.
