Window

Hi John,

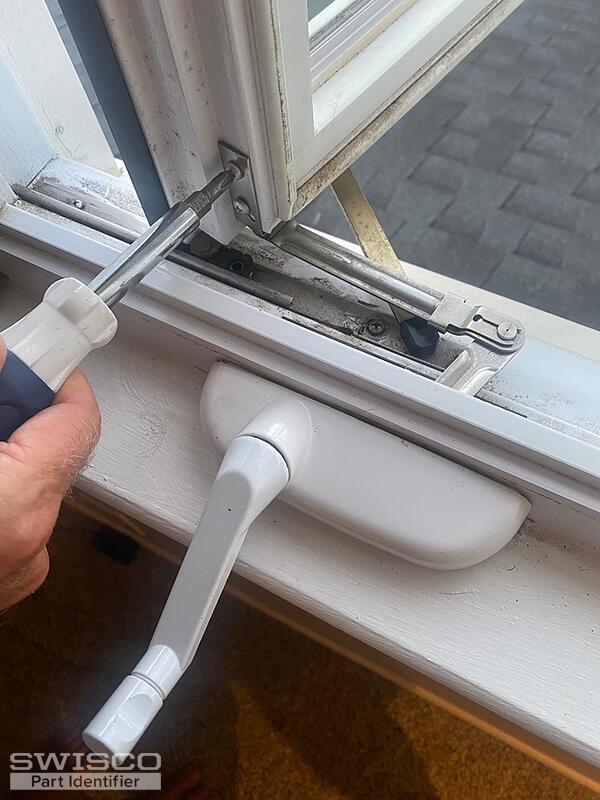

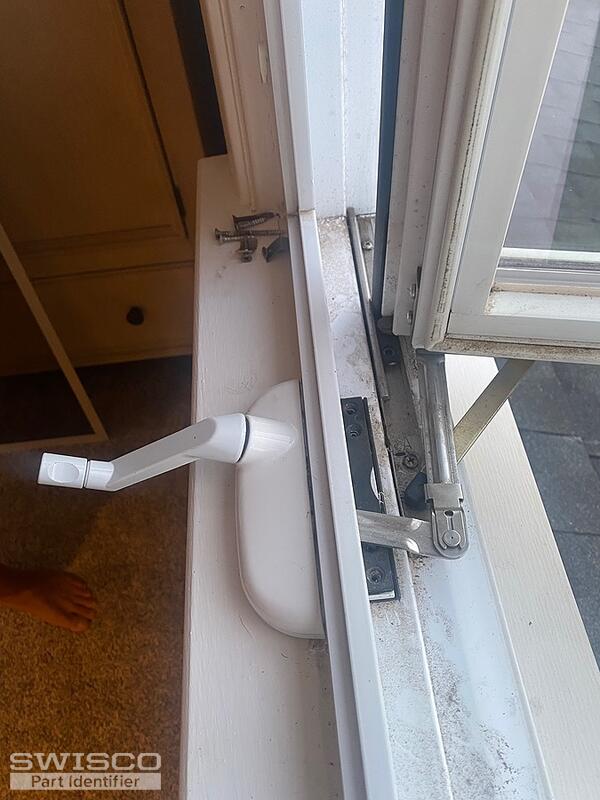

Your window operator can be replaced with the 39-091 ROTO Casement Operator. The opposite version is the 39-092. Unfortunately, we do not have a replacement for the detachable link arm so you'll need to reuse yours when replacing the operator.

Take a look over the other accessories tagged below.

Dimensions for 39-091

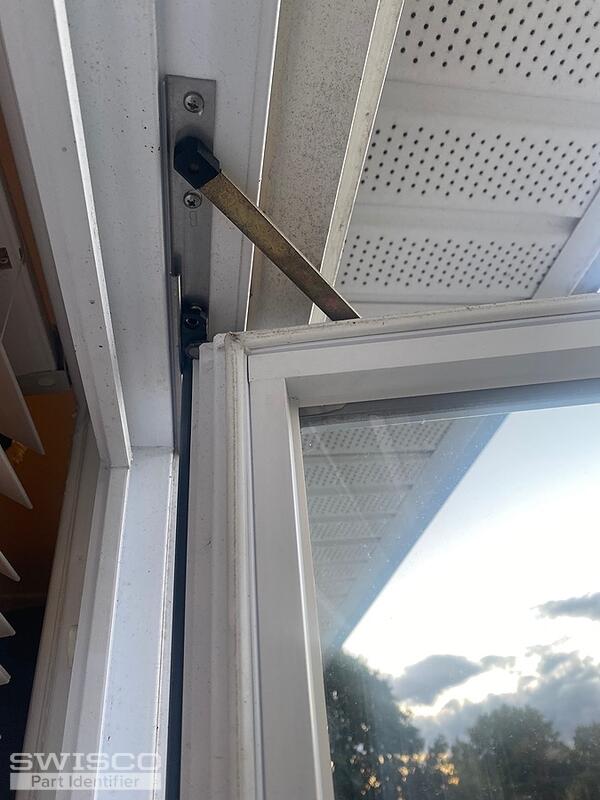

If you are looking to replace window hinge, you may be able to use the 36-048 but you'll need to be sure to double check the dimensions. Keep in mind, they may not be an exact match, so there is a chance you might need to drill new installation holes.

These can be used to replace the top and bottom hinges on the right and left side of the window.

Detail of 36-048
