Window

Quick Learner from South Padre Island

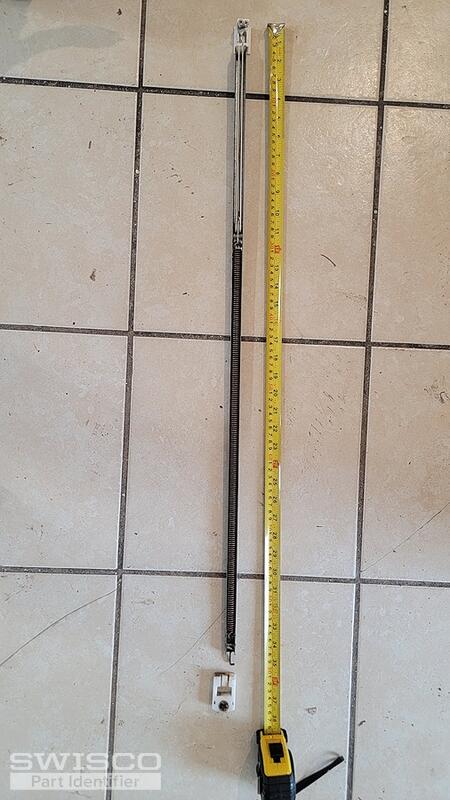

Need to replace these parts for windows I have. We live in a coastal area where things rust.
5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

At first sight, your channel balance resembles the Series 765, but it would be best to see a clearer image of the top to see how it installs. Can you also provide the number stamped on the metal channel?

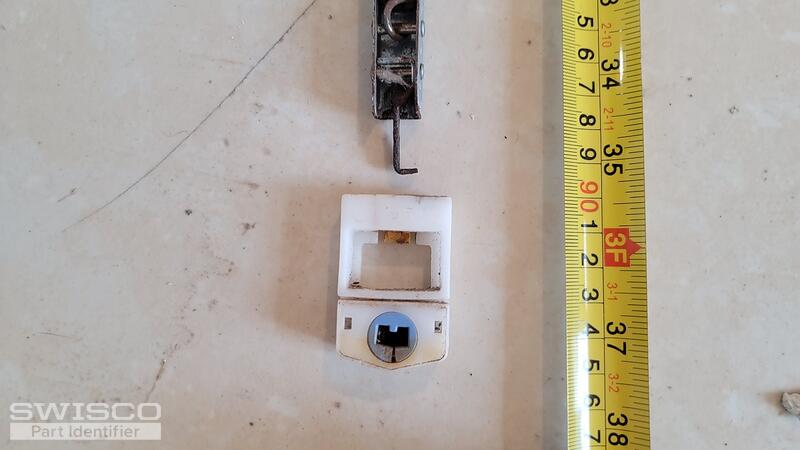

Can you provide the width and thickness of the original pivot shoe? From there we can confirm the correct fit.

Please also provide a closer image of the original pivot bar on the bottom of the frame.

For new tilt latches, start by reviewing the style and dimensions of the 26-393A latch pair. Let us know if you have any questions!

Dimensions for 26-393A
Dimensions for 26-393A
