Window 50" x 32.5"

Quick Learner from Florida

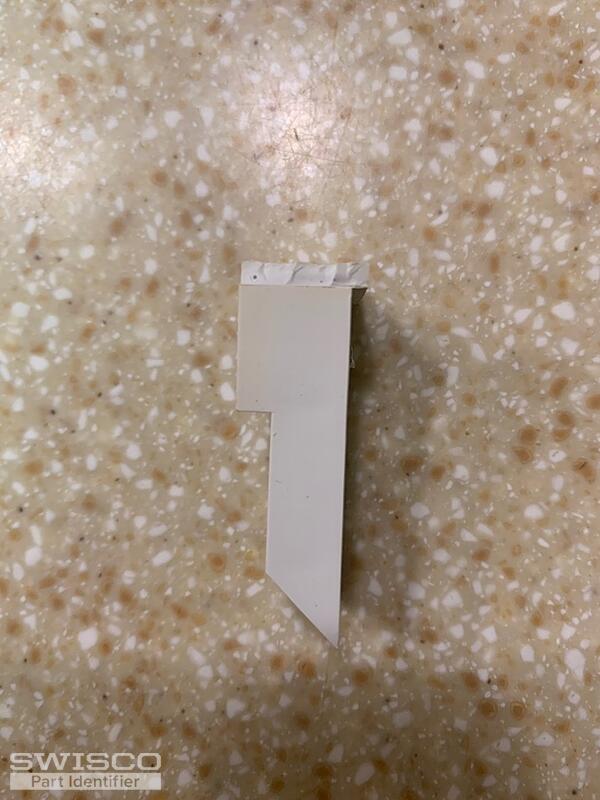

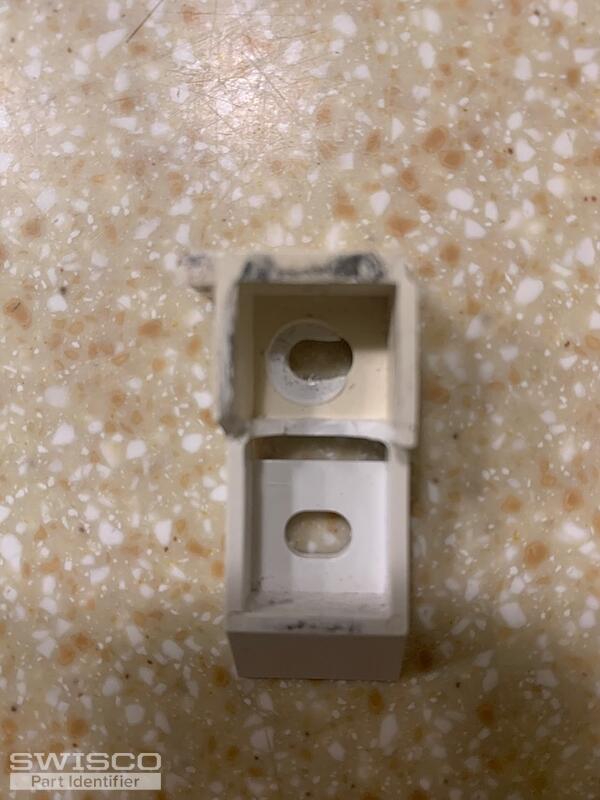

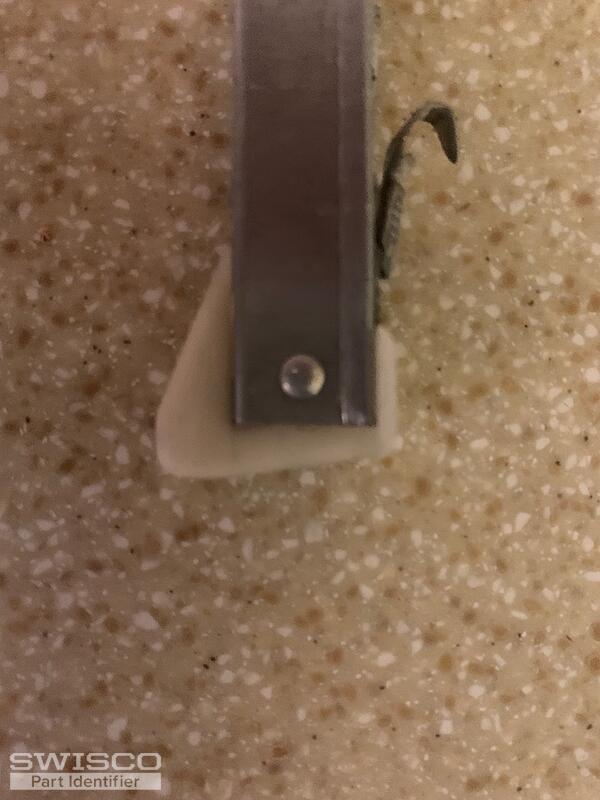

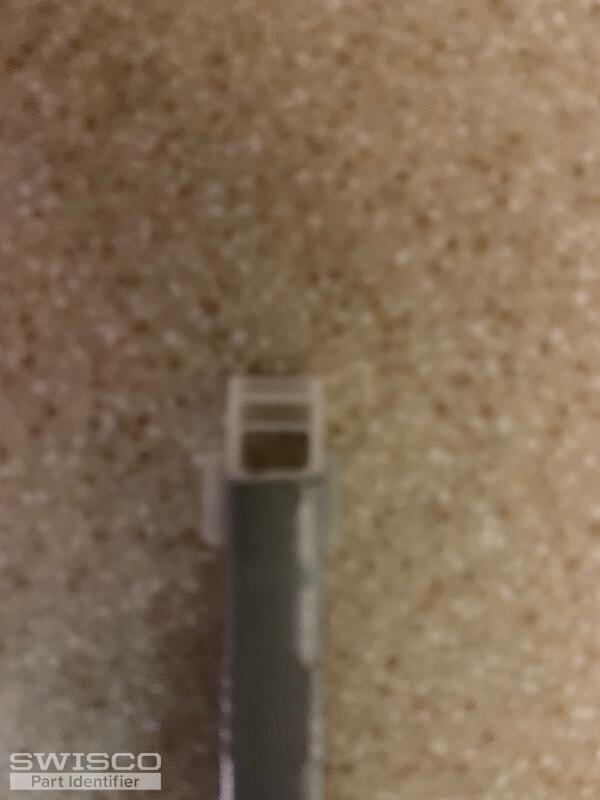

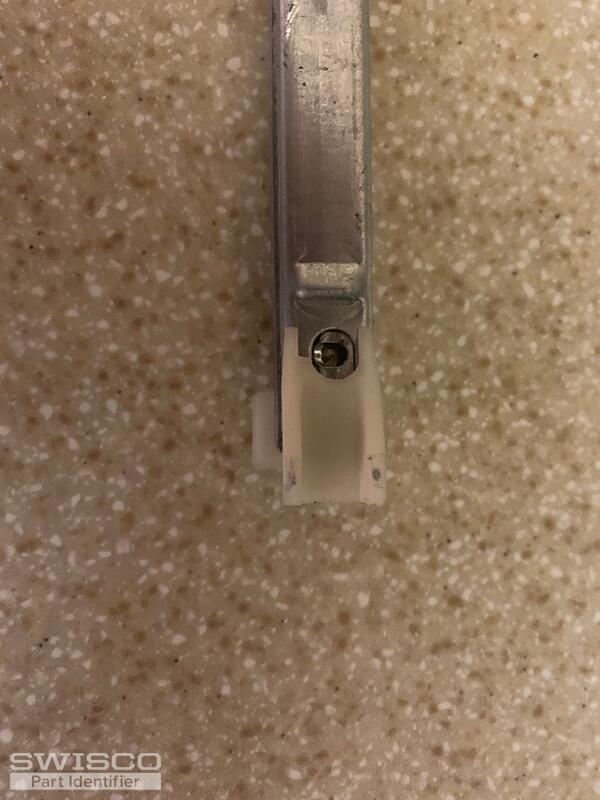

Looking for 4 window sash guides and balance guides. Balance is 1/2" x 30" long. Sash is 7/8" at top 5/8" wide and 1-1/2" long
5 user uploaded images
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for your photos. Based on what I see here, you have either our S380-30 or S385-30, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

As for the top sash guide, I think our 18-166 is a good place to start. Like before, you can review our dimensions to verify.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Detail of 18-166
Detail of 18-166

Profile view of 18-166
Profile view of 18-166

Quick Learner from Florida
I narrowed it down to the S380, but the stamp on mine reads 29 9 HX CMC11 on one and 29 3 IX CMC11 on the other
Tom
Tom from SWISCO
SWISCO
Expert

Are those two balances in the same window? If so, someone must have made a mistake at some point in the past during a repair. Two balances in the same window need to be identical.

The good news is that it's easy enough to figure out. All you need to do is remove your sash from the window and place it on a scale to get its weight. Then, refer to the chart you see on the S380-30 store page. That will tell you exactly what stamp option you need beyond any ambiguity. While mistakes are common in this industry, math never lies.

Quick Learner from Florida
No they are from 2 different windows. But those stamp markings don't coincide with any of the options listed. Looking for clarification!
Tom
Tom from SWISCO
SWISCO
Expert

Gotcha, thanks for clarifying. A stamp of 29 3 typically corresponds to our 2930 option. Unfortunately, there is no 2990 option to match your 29 9 stamp. That one is a bit outdated; modern balances tend to be calibrated a little differently. For that window you will definitely need to weigh your sash to verify which modern option works best.
